Getting started: Adding a web widget channel

Achieved so far in Getting Started:
Signing up - your deployment has a name, a license key, and a dashboard API key.
Starting Quill - Quill is running on your machine, and its management dashboard is open.
Connecting your database - Quill can reach your source database, and the tables your app will work with are selected.
Mapping your tables - your app is created, and Quill keeps its internal database current with your source data.
Adding an AI agent - your app has an agent that answers from its internal database.

Creating the web widget channel​

Opening the Add channel menu​

A channel is added from the Add channel menu, which can be reached in two ways:

  • If you arrived here from the previous Getting Started step, you are already in the right place: clicking Save agent at the last stage of the Add agent wizard created the agent and opened the Add a channel stage.

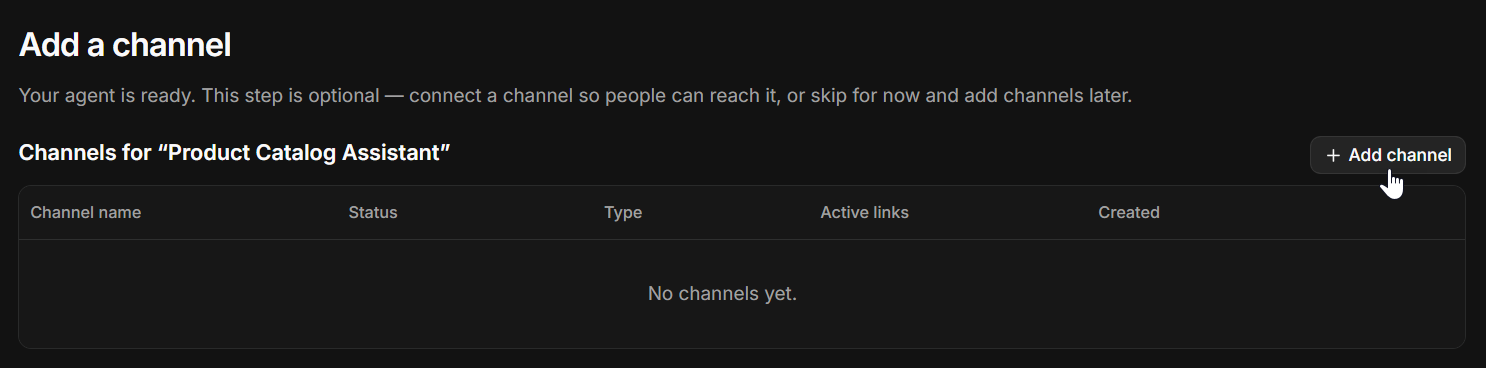

    The Add a channel stage

    Click Add channel to open the menu of channel types.

  • If you didn't arrive through the Getting Started path, open Quill's management dashboard and click the app you want to add a channel to, on the My apps list.

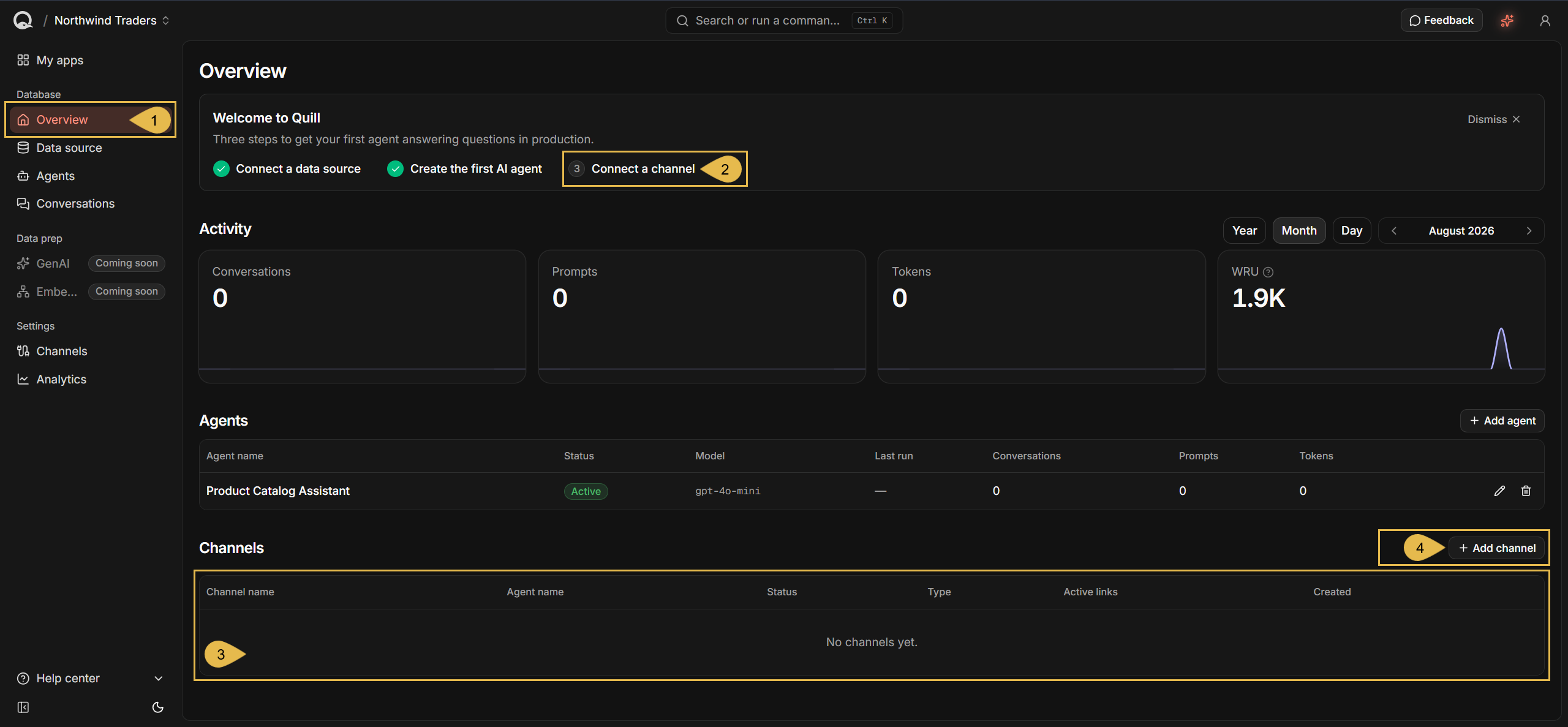

    The app's Overview

    1. Overview
      The app opens on this view, where your agents and channels are listed.

    2. Connect a channel
      The last of the three setup steps the welcome banner tracks, and a link to the app's Channels view.
      The banner is shown until all three steps are done, and can be dismissed at any time.

    3. The channels table
      Lists the channels the app already has. Yours has none yet.

    4. Add channel
      Click to open the menu of channel types.

Both routes reach the same menu:

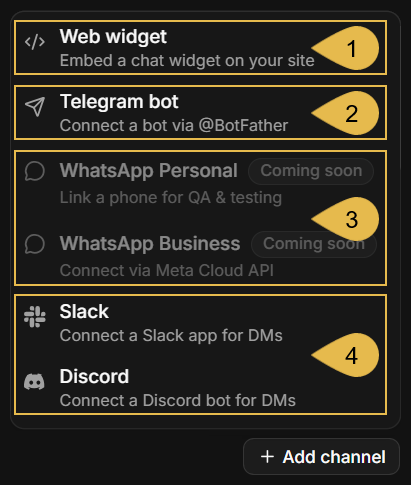

The Add channel menu

  1. Web widget
    Click to add a web widget channel.

  2. Telegram bot
    Carries the conversations through a Telegram bot that you create with Telegram's own @BotFather.

  3. WhatsApp Personal and WhatsApp Business
    Not available yet; Coming soon.

  4. Slack and Discord
    Carry the conversations through a Slack app or a Discord bot, in private chats between your users and the bot.

Naming the channel and setting its allowed origins​

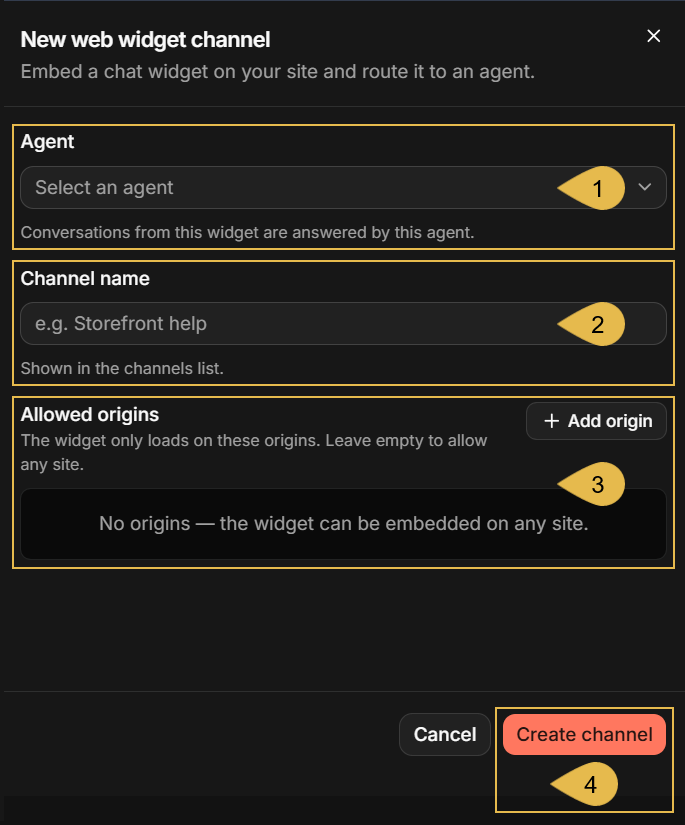

New web widget channel

  1. Agent
    Select the agent that will answer the conversations this channel carries.
    When you reach this form from the Add agent wizard, the agent you just created is already set and this field is not shown.

  2. Channel name
    Enter a name for the channel.
    The name is shown in the app's channels list.
    e.g., Catalog chat

  3. Allowed origins
    Enter the addresses of the websites allowed to embed the chat box, one entry per website.
    While the list is empty, any website can embed the chat box.

  4. Create channel
    Click to create the channel and add it to the app.

Generating an embed link​

The channel now exists, but there is no way to reach its chat box yet.
An embed link is such a way: you generate a link to a conversation carried by the channel, embed the link in your site, and your users can use the chat box it opens.

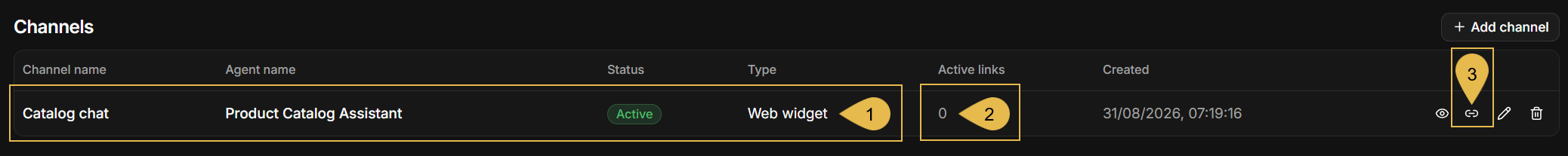

The new channel

  1. The new channel
    The new channel's entry under Channels shows the agent that answers its conversations, and its type, Web widget.

  2. Active links
    The number of links generated for this channel. Yours has none yet.
    Only links that haven't expired yet are counted.

  3. Generate link
    Click to generate an embed link for this channel.

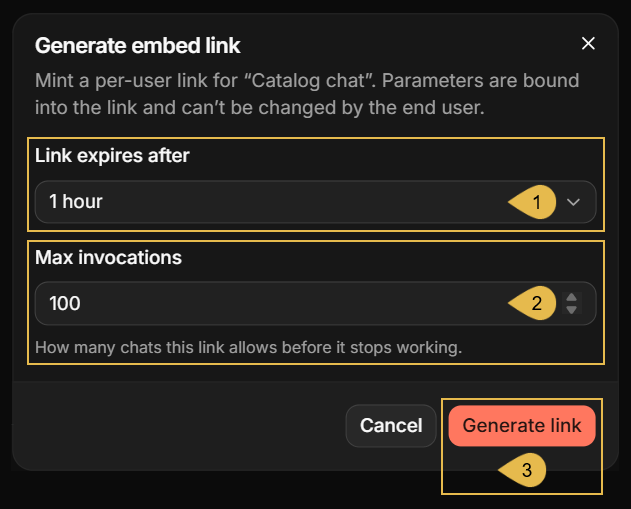

Generate embed link

  1. Link expires after
    Select how long the link will last: 1 hour, 4 hours, 24 hours, 7 days, or Custom for a duration of your own, entered as a number and a time unit, from one minute to thirty days.

  2. Max invocations
    Enter the number of chats that the link allows, 100 by default and up to 1,000,000.

  3. Generate link
    Click to generate the link.

The limits' exact behavior, including the message your users will see once a link expires or its chats are used up, is covered in Invalid links.

When the agent takes parameters, the dialog opens a field for each parameter.

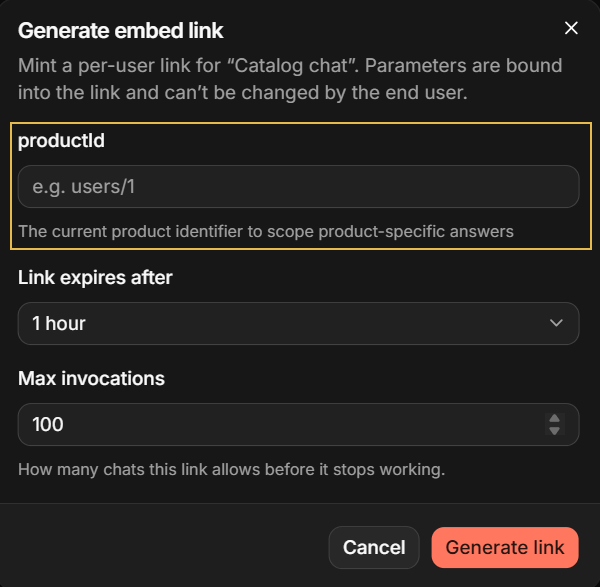

An agent parameter in the dialog

The field's name and the text under it are the parameter's name and description, taken from the agent's configuration.
Every parameter the agent has must be given a value before the link can be generated.

The values you enter for these parameters are bound into the link and cannot be changed by users.
You can, for example, generate an embed link for a specific product, with the product's ID already bound into the link, so the agent's queries and answers will relate only to this product.

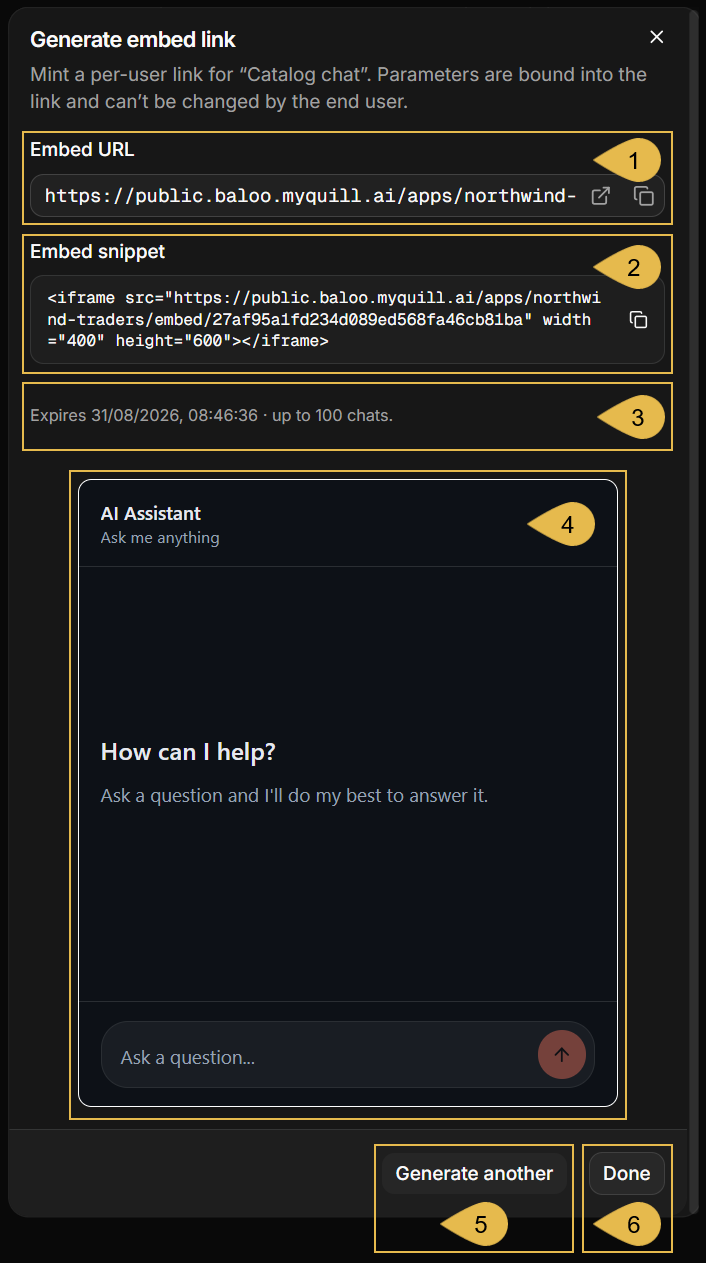

The generated link

  1. Embed URL
    The address that opens the chat box.
    Copy the address, or open it in a browser to see the chat box on a page of its own.

  2. Embed snippet
    The same address, wrapped in an <iframe> element that you can place on your page (see Placing the chat box on your page).

  3. The link's limits
    The link's expiration time and number of allowed chats.

  4. The chat box
    A working chat box, served by the link shown above it.
    Ask a question in the chat box that can be answered from your app's data. The agent will reply here as it will on your site.
    Chats initiated here are counted against the link's limit.

  5. Generate another
    Click to return to the settings and generate an additional link for this channel.
    The settings you used are kept in the form, and the link you just generated remains valid.

  6. Done
    Click to close the dialog.

Placing the chat box on your page​

The Embed snippet you copied is the whole integration. Paste it into the HTML of the page that will offer the chat box:

<iframe src="https://public.<your-domain>/apps/<app-slug>/embed/<link-token>" width="400" height="600"></iframe>

The chat box is served by your Quill deployment, so the page needs nothing else: no library to install, no script to add, and no styling to write.
Set the width and height to suit your layout, and shape the element as you please: a title attribute, a style, or any other addition that blends the chat box into your website.

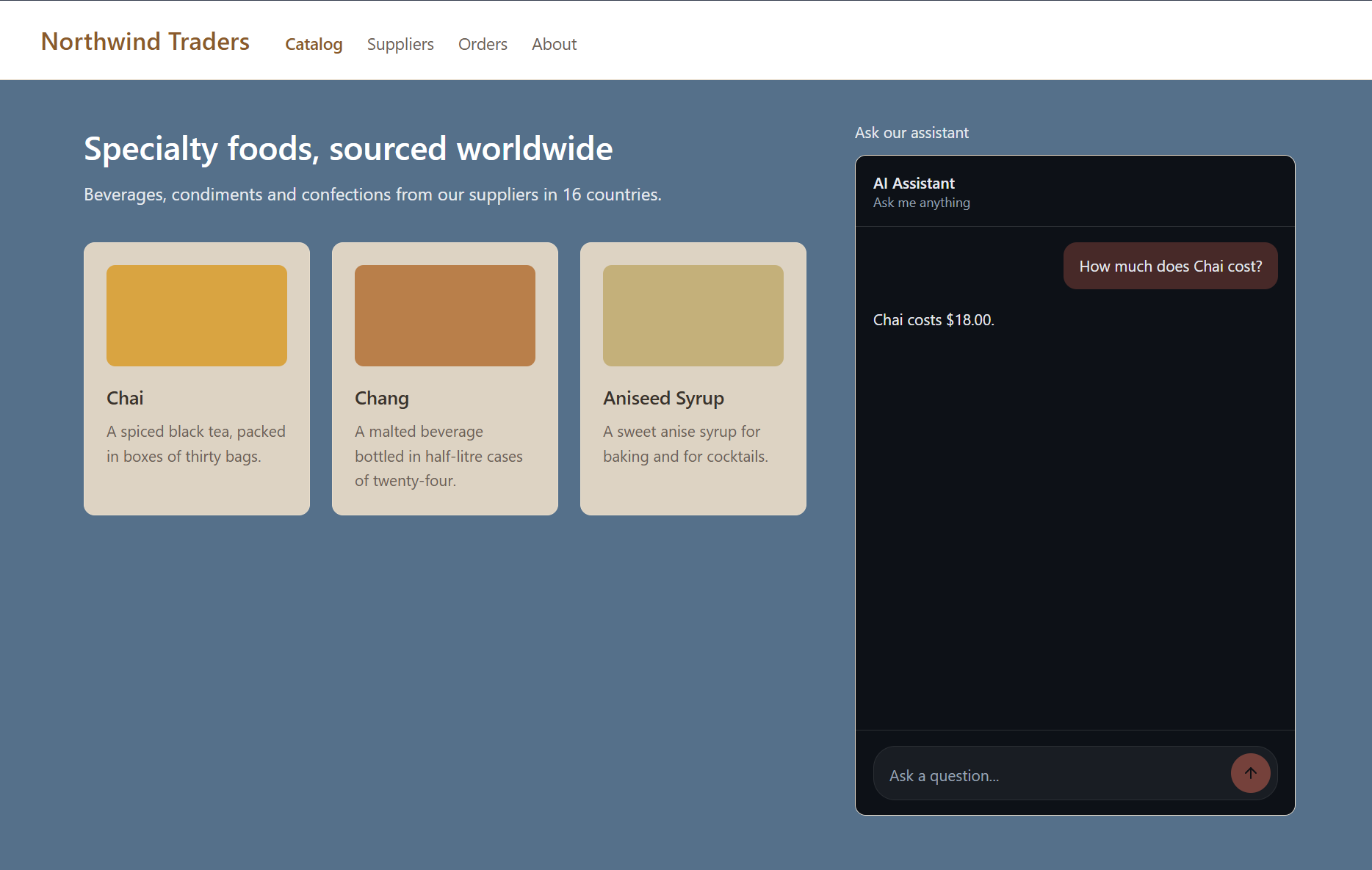

The chat box on a page

A visitor types a question into the chat box and is answered from your app's data, without an account or any other dealings with Quill.

Two things are left to settle before a page like this faces real visitors:

  • The allowed origins of the channel.
    While the allowed origins list is empty, any website can embed the chat box.
    Edit the channel and enter the addresses of your own websites if you want to keep the chat box to them.

  • A link for each visitor.
    A link carries one conversation and one set of limits, so everybody visiting a page that holds an embed link will share the same conversation and limits.
    A live site commonly generates a link per visitor, and places the link in the page as the page is served.

Both are covered in Embed the Chat Widget.

This concludes the Getting Started path:
Quill is deployed and you can access and manage it,
your source data is mirrored into your app's internal database,
an agent answers from this internal database,
and your users can reach the agent through a chat box on your website.

The channel's full documentation, including its management options and limitations, is in Channels: Web widget.

There is much more to Quill than these pages cover, including other channels besides the web widget, and actions your agents may run.
The Overview page is a good starting point for more, and you can then navigate the documentation and, above all, experiment in your own deployment.
