App: Data Source View

• The Data source view shows the app's sync activity, sync errors, and the collections in its RavenDB database.
  It is available at https://dashboard.<your-domain>/apps/<slug>/data-source, where <slug> is the app identifier used in the URL.

• Select an app from the My apps view.
  You can also use the app selector in the header to switch between apps.

• Quill mirrors data from your source relational database into the app's RavenDB database.
  The source connection and table mapping are configured when you create the app using the Add new app wizard.

• In this article:

  • The data source view
  • Sync performance
  • Collections
  • Data source actions

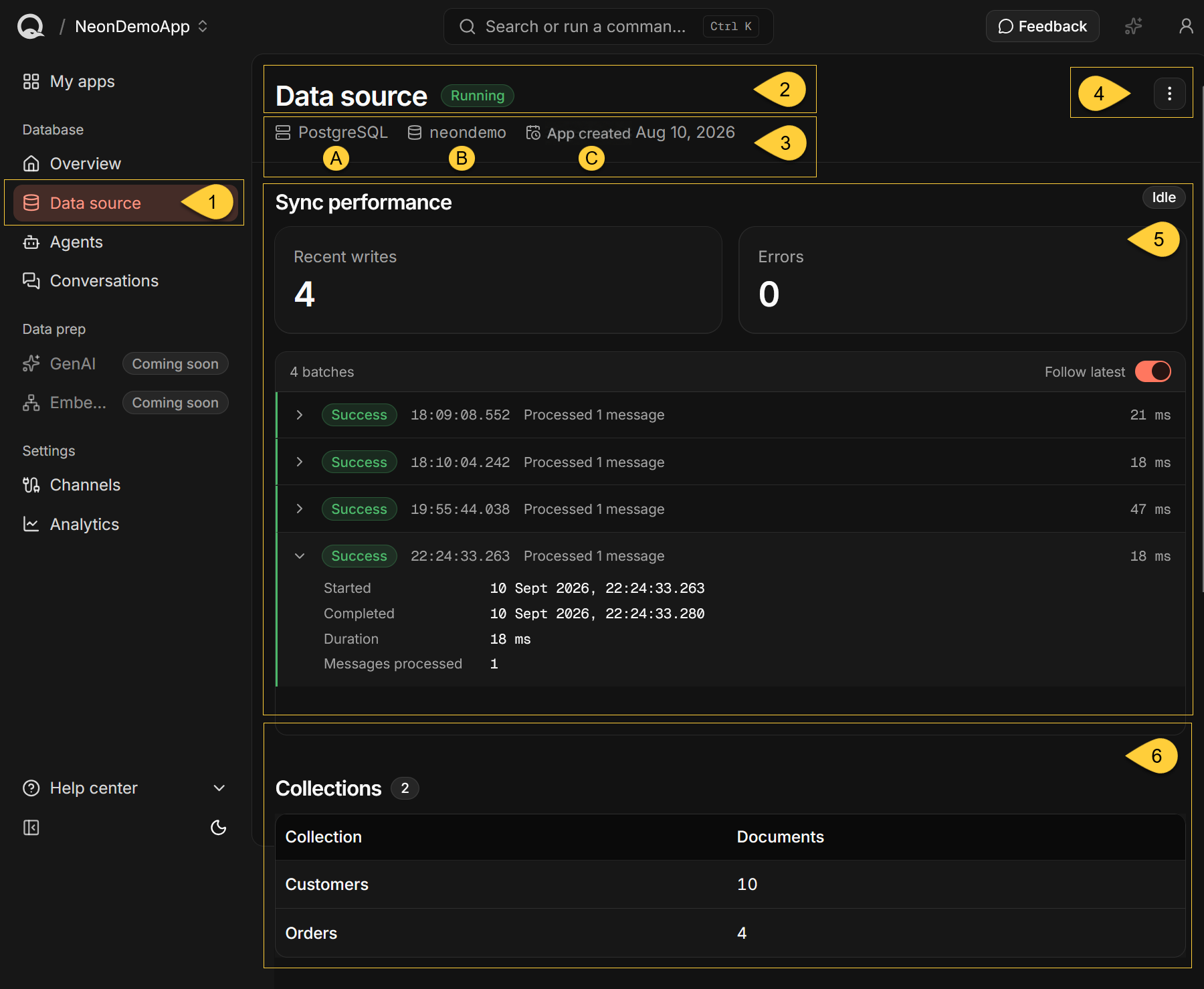

The data source view

1. Data source
   To open the selected app's Data source page, click Data source under Database in the sidebar.

2. App status
   The badge beside the page title shows Running, Setup, or Needs attention.
   While Quill loads the app's status, the badge displays Loading.
   It reflects the app's data sync, agents, and channels, using the same status as My apps.
   If the app's overall status is Error, Quill omits the header badge and reports the sync errors in Sync performance.

3. Source details

   • A. Source engine
     The source database engine: PostgreSQL, SQL Server, MySQL, or Oracle.
     MariaDB sources are shown as MySQL.
     If Quill cannot determine the engine from the stored connection string, this item is not shown.
   • B. Source database
     The name of the source relational database that Quill mirrors data from.
     If Quill cannot determine the database name from the stored connection string, this item is not shown.
   • C. App created
     The date the app was created.
     Hover over the date to see the full date and time.

4. Data source actions
   The three-dot menu lists Edit, Export configuration, Restart sync, and Delete.
   Export configuration appears only when Quill recognizes a supported source engine.
   An additional Restart sync button appears beside the menu when the page reports sync errors.
   See Data source actions for instructions and the effects of each action.



5. Sync performance
   Shows the sync's current activity, the Recent writes and Errors counters, and a live batch log.
   See Sync performance to understand the counts, inspect batches, and view errors.

6. Collections
   Lists the collections in the app's RavenDB database and the number of documents in each.
   See Collections for what the table includes.

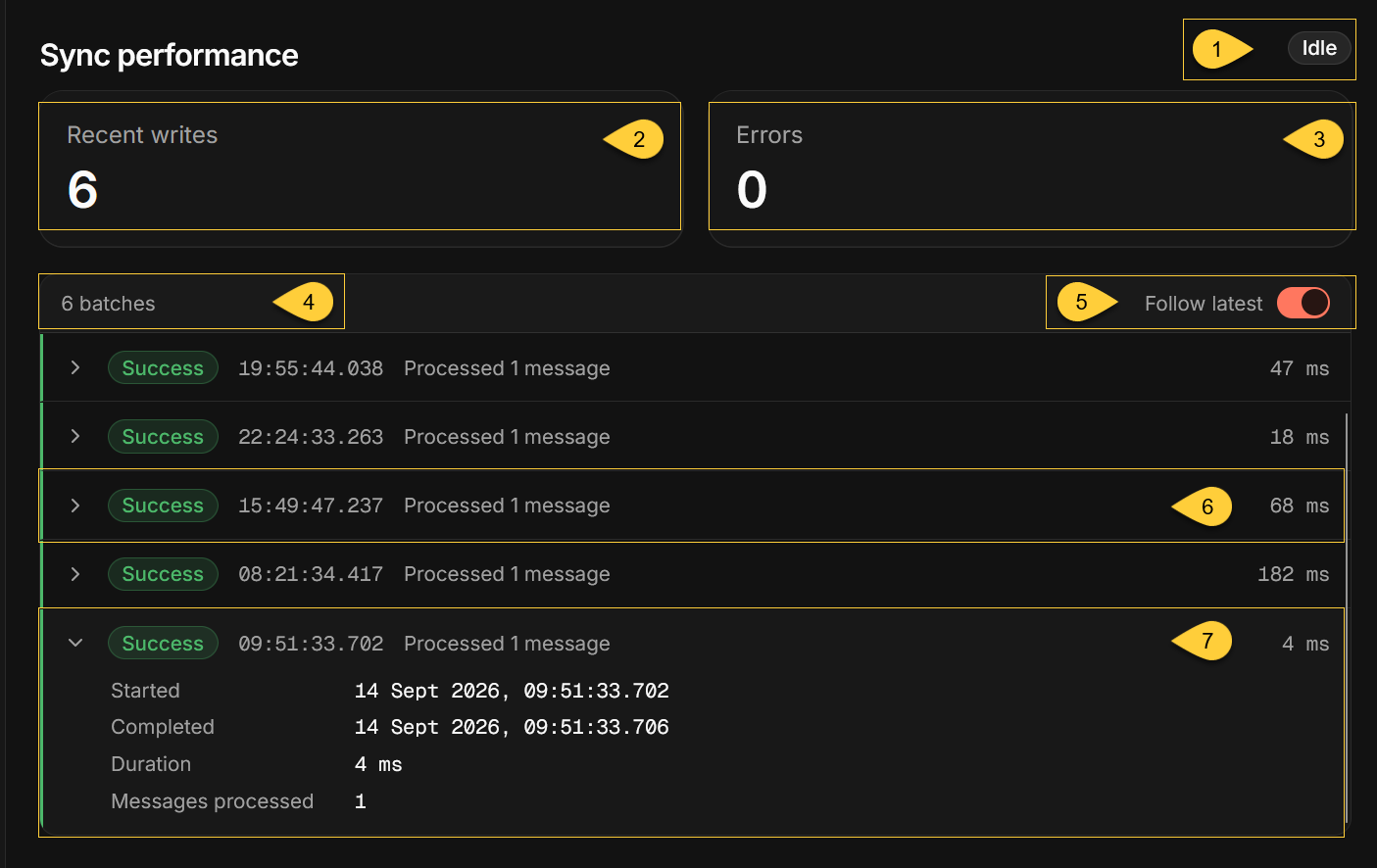

Sync performance

This section updates automatically as sync reports arrive.
While establishing the live connection, it displays "Connecting to the live data sync...".
If the connection fails or closes, Quill displays "Could not connect to the live data sync" with a Retry button.

Sync state

1. Sync state
   The badge beside the Sync performance heading summarizes the reported sync activity.
   It appears once the live connection starts delivering updates and can show the following states:

   State	What it means
   Active	A batch is in progress, or a batch completed within the last minute.
   Idle	No batch is in progress, and no batch completed within the last minute. This is normal when the source database has no new changes. It also applies when no batches have been reported.
   Error	Sync errors are reported. This state takes precedence over Active or Idle.

Sync counters

2. Recent writes
   The number of documents processed by the batches in the live batch log.
   Multiple changes to the same document within a batch count as one. It includes recent batches available when you open the page, plus batches received while the page remains open.

   Reloading the page can change the total because older batches may no longer be available.
   For the app's database write usage over a selected period, see the WRU tile on the Overview page.

3. Errors
   Quill shows the higher of these two counts:

   • Errors reported in the live batches.
   • Entries returned in the sync error list.

   The returned list contains up to 25 of the most recent errors, but the tile can exceed 25 when the live batches report more errors.

   Some failures occur before a batch is created, so this tile can report errors even when every listed batch shows Success.

   See Sync errors to inspect the reported errors.

Batch log

4. Batches
   The number of batches listed.
   The log lists sync batches in chronological order, with the oldest first.
   Batches with no processed documents and no errors are omitted.

5. Follow latest
   When enabled, the log automatically scrolls to the newest batch as batches arrive.
   Scrolling up turns it off; scrolling back to the bottom turns it on again.
   You can also use the toggle directly.

6. Batch row
   Each row shows the batch's state, start time, processing summary, and duration:

   State	What it means
   Success	The batch completed and reported no errors.
   Pending	The batch has not completed and has reported no errors so far.
   Error	The batch reported errors, whether or not it has completed.

   The summary reports processed messages;
   in this count, each document processed by the batch counts as one message.

   Multiple changes to the same document within a batch count as one.
   For an Error batch, the summary also shows the error count.

   Times use 24-hour format in your local time zone and include milliseconds.
   Durations below one second are shown in milliseconds; longer durations are shown in seconds.

7. Batch details
   Click a row to expand it:

   Field	What it shows
   Started	The date and time the batch started.
   Completed	The date and time the batch completed, or "Still in progress".
   Duration	The batch's elapsed processing time.
   Messages processed	The number of documents processed in this batch. Multiple changes to the same document count as one.
   Script errors	Errors encountered while transforming source data or applying changes to documents.

   Script errors appears only when its count is greater than zero.
   A failed batch can report processed documents even when its database writes are rolled back.

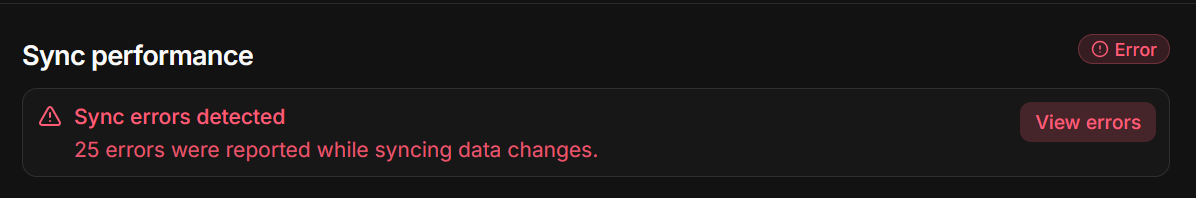

Sync errors

• A Sync errors detected banner appears at the top of Sync performance when the sync error list contains entries. The banner shows the number of errors returned in that list, up to 25.

• Click View errors to open the Sync errors side panel. It displays up to 25 errors, with the newest first.

Interpreting sync errors

• Errors are not marked as resolved.
• A later Success batch shows that a batch completed without reported errors,
  but does not confirm that every earlier problem has been resolved.

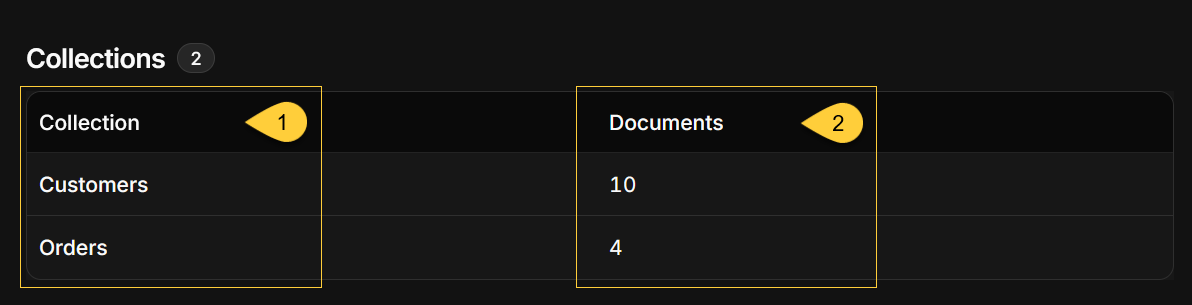

Collections

The Collections table lists the collections in the app's RavenDB database, in alphabetical order.
The badge beside the heading shows how many collections there are.
RavenDB's internal collections, whose names start with @, are not listed.

1. Collection
   The collection's name.
   Collections created from mirrored data use the target collection names defined for root tables in the app's table mapping.

   Collections written directly to the app's RavenDB database can also appear here.
   Learn more in Mapping your tables.

2. Documents
   The number of documents in the collection.
   Large numbers are shortened, for example 18.4K.

If the app's database holds no listed collection, the table displays "No collections yet".

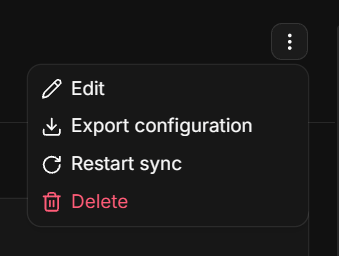

Data source actions

Use the three-dot menu in the page header to access these actions.

Edit

Click Edit to open the Edit app wizard with the app's existing connection and table mapping.

Changing an earlier step can affect later steps, so review the remaining steps before clicking Save changes. Changes to the app's configuration are saved when you finish the wizard.

If the existing table mapping cannot be edited in the wizard, Quill displays This app’s mapping cannot be edited here and explains why.

Export configuration

Click Export configuration, then Export in the confirmation dialog.

Quill downloads Quill-app-config.json, containing the source engine, connection string, and table mapping.
You can import this file when creating another app.

This action is available when Quill recognizes a supported source engine.

The file contains the connection string in plain text, including any username and password it contains.
Store it securely and avoid sharing it.

Restart sync

Click Restart sync, then click Restart in the confirmation dialog.
When sync errors are reported, a Restart sync button also appears beside the menu.

Quill stops the sync and starts it again from its last saved position. Restarting preserves existing mirrored data and saved sync progress. New source changes may take a moment to arrive while the connection is restored.

• Review any reported sync errors before restarting.
  Incorrect connection settings or table mappings must be corrected for the sync to recover.

• Restarting cannot enable a sync that is already turned off.
  In that case, Quill displays "Sync is turned off for this data source, so there is nothing to restart".

• If Quill stops the sync but cannot start it again, it reports the failure and leaves the sync turned off.

Delete

Click Delete, enter the app's name to confirm, and then click Delete.

The app and its RavenDB database are permanently deleted, including mirrored data, agents, channel configurations, and conversations. This action cannot be undone.

The source relational database and its data are not deleted.
