Authentication: SSO Certificates and Users

• RavenDB can authenticate users who arrive through an SSO reverse-proxy application - GitHub, Google, Microsoft/Entra ID, or Windows/Kerberos - instead of issuing one X.509 client certificate per user.

• The cluster needs to know two things to do this:

  • Which SSO servers to trust - registered as certificates with Usage = SsoServer.
  • How to map an SSO identity to RavenDB permissions - stored as SSO user entries with Usage = SsoClient.

• Both are managed from Manage Server > User Access Management in Studio, and live in the same certificate list as your regular server and client certificates.

• For end-to-end deployment of the SSO application itself, see the SSO Overview.
  This page focuses on the certificate-management side of the workflow.

• In this article:

  • Required clearance and license
  • Register an SSO server certificate
    • Studio
    • HTTP API
  • Register an SSO user entry
    • Studio
    • HTTP API
  • Renewing the SSO server certificate
  • Supported providers
  • Related reading

Required clearance and license

SSO is a commercial feature gated by the RavenDB license. Registering an SSO server certificate requires Cluster Admin clearance; SSO user entries can be managed by Operator clearance and above.

License required

Registering an SSO server certificate or creating an SSO user entry fails with a license error if your license does not permit SSO.

Register an SSO server certificate

The SSO server presents its public certificate to clients on https://<sso-domain>. Registering the certificate in RavenDB tells the cluster "trust SSO identities forwarded by this server." Identification is by public-key pinning hash, not by the certificate file itself.

Studio

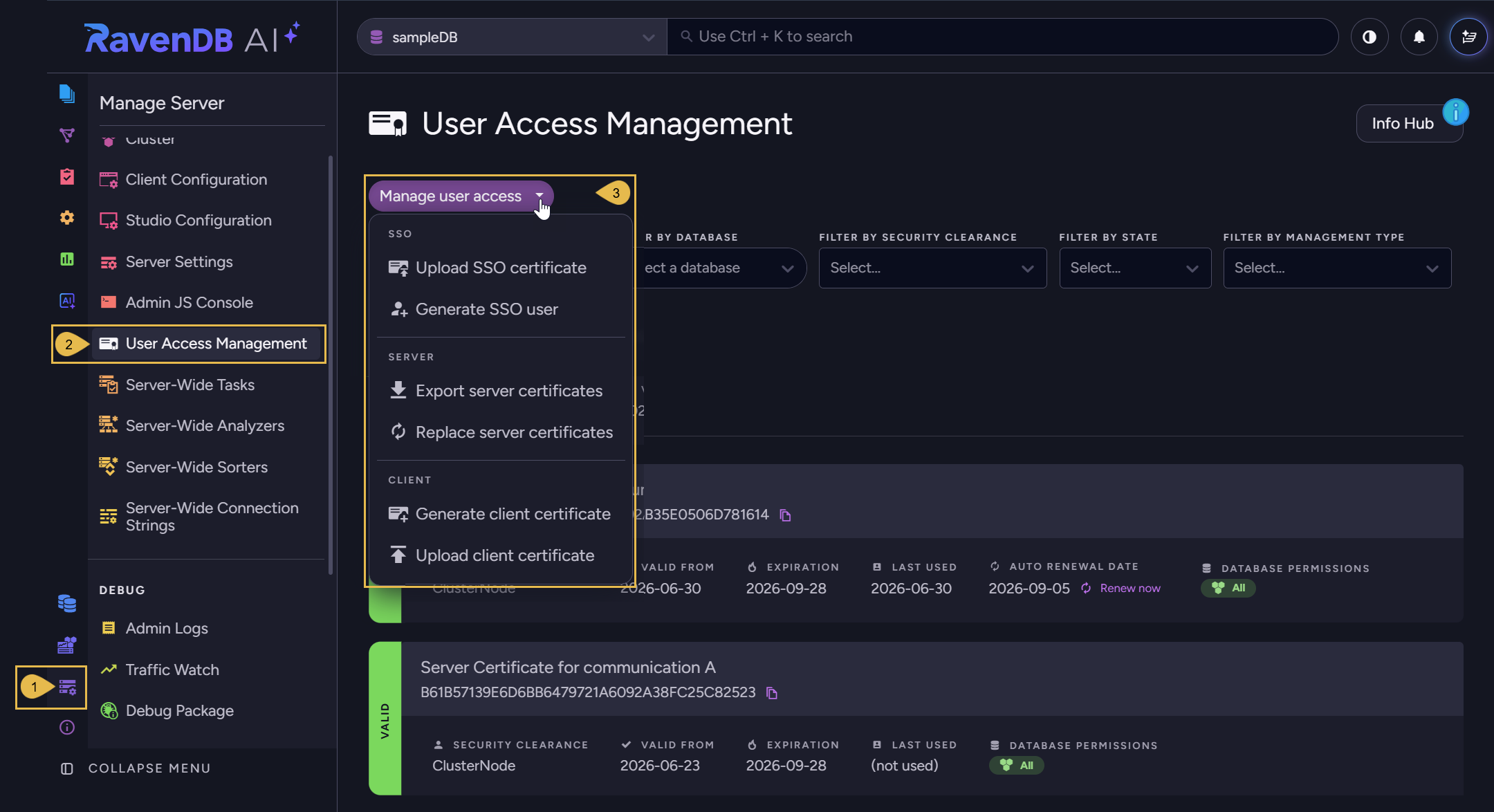

To register SSO server certificates and create SSO user entries, open: Manage Server > User Access Management

1. Manage Server
   Click to open the Manage Server menu.

2. User Access Management
   Click to open this page, where you manage SSO server certificates and SSO user entries, alongside the cluster's regular server and client certificates.

3. Manage user access
   Click to open this dropdown. The SSO actions are:

   • Upload SSO certificate
     Register an SSO server certificate.
   • Generate SSO user
     Create an SSO user entry.

---

Upload SSO certificate

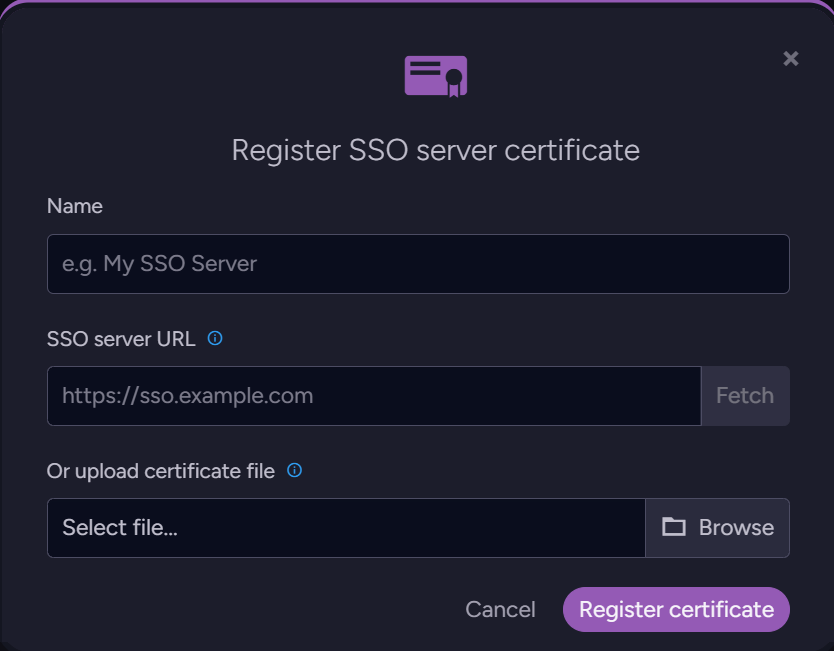

Click Upload SSO certificate to open the Register SSO server certificate dialog:

• Name
  A display name for the certificate.
• SSO server URL
  Enter the SSO server's address and click Fetch. RavenDB downloads the public certificate from https://<sso-url>/api/certificate, validates it, and shows the parsed details.
• Or upload certificate file
  Browse to a PEM or PFX file to provide the certificate yourself instead.
• Register certificate
  Saves the certificate as a trusted SSO server.

---

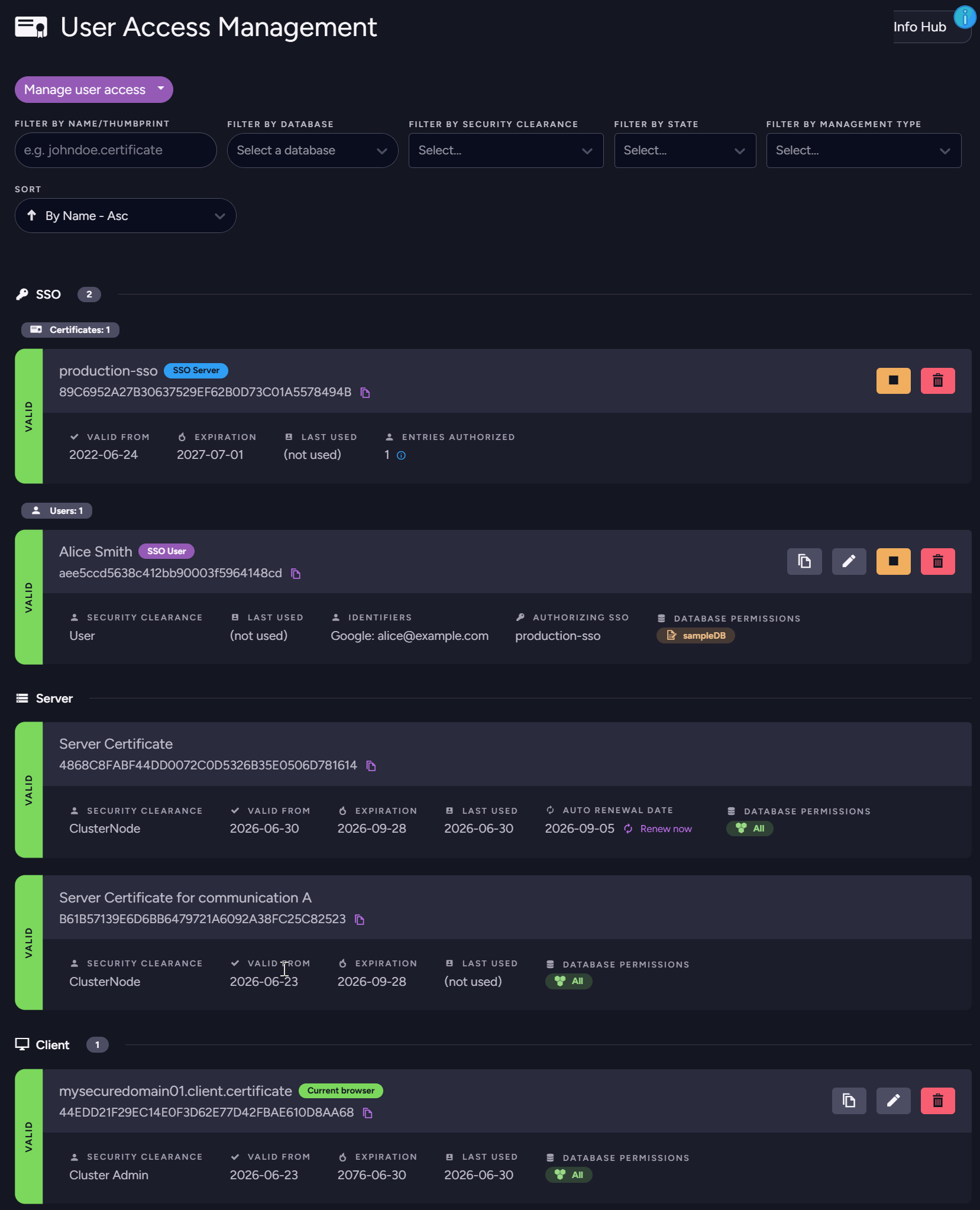

Once registered, the SSO server certificate appears under a dedicated SSO section of the certificates list, alongside any existing SSO user entries:

HTTP API

Every action in the Studio dialog above maps to a REST endpoint you can call directly.
Use these endpoints to automate SSO setup as part of a deployment pipeline, instead of registering each certificate and user by hand in Studio.

PUT /admin/certificates
Content-Type: application/json

{
  "Name": "production-sso",
  "Certificate": "<base64-encoded certificate>",
  "Usage": "SsoServer",
  "SecurityClearance": "ValidUser",
  "Permissions": {}
}

To let the cluster fetch the certificate for you:

GET /admin/certificates/sso/server/fetch?url=https://sso.example.com

This downloads https://sso.example.com/api/certificate, validates it, and returns the base64 bytes - hand them to PUT /admin/certificates above. The fetch is limited to 64 KB and times out after 10 seconds.

---

SSO server certificates cannot be generated by RavenDB - they belong to the SSO deployment and must be imported. POST /admin/certificates with Usage = SsoServer is rejected.

Register an SSO user entry

An SSO user entry is a mapping from one or more SSO identities to a RavenDB security clearance and database permissions. Each identity is a (Provider, Domain, Identifier) tuple:

Field	Type	Example
Provider	Github | Google | Microsoft | Windows	Windows
Domain	string	Kerberos realm - only used when Provider = Windows; leave empty otherwise.
Identifier	string	alice@example.com, GitHub username, etc.

Each entry must trust the SSO servers it accepts identities from. You can either:

• list one or more SsoServerPublicKeyPinningHashes from registered SSO servers, or
• set AllowAnySsoServer = true to accept the identity from any SSO server registered in the cluster.

Listing multiple pinning hashes is how you give one user access through several SSO deployments (production + staging, for example) without duplicating the entry.

SSO logins bypass two-factor authentication

RavenDB's two-factor authentication does not apply to an SSO login. RavenDB cannot enforce a second factor on the identity provider's side, so multi-factor enforcement is the SSO provider's responsibility.
SSO users granted Operator or Cluster Admin clearance therefore sign in with no RavenDB-side second factor, so configure your identity provider to require multi-factor authentication for those users.

Studio

SSO user entries are created and managed in the Manage Server > User Access Management view.

---

Generate SSO user

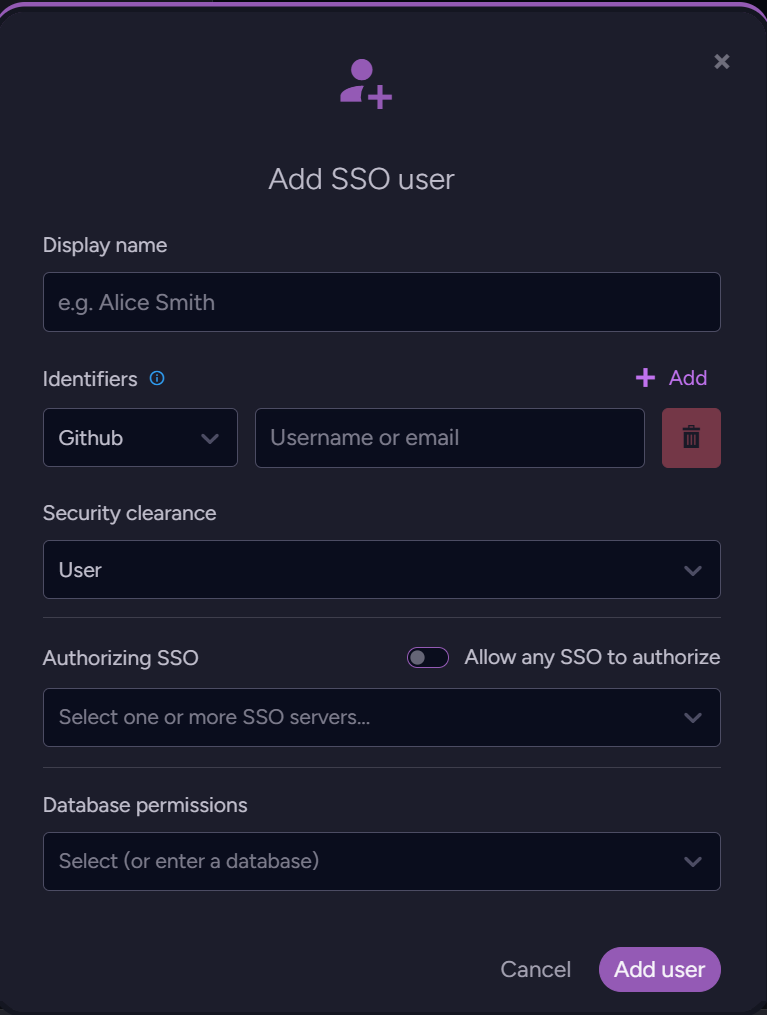

Click Generate SSO user to open the Add SSO user dialog:

• Display name
  A display name for the user entry.
• Identifiers
  Choose the provider and enter the identifier (a username or email).
  For Windows, a Domain field appears for the Kerberos realm.
  Click Add to map more than one identity to this entry.
• Security clearance
  The clearance to grant: Cluster Admin, Operator, or User.
• Authorizing SSO
  Turn on Allow any SSO to authorize to accept this identity from any registered SSO server, or leave it off and select the specific SSO servers this user is bound to.
• Database permissions
  The per-database access to grant.
• Add user
  Saves the SSO user entry.

HTTP API

The matching endpoint for an SSO user entry:

PUT /admin/certificates/sso/user
Content-Type: application/json

{
  "Name": "alice",
  "Usage": "SsoClient",
  "SsoIdentifiers": [
    { "Provider": "Google", "Domain": "", "Identifier": "alice@example.com" }
  ],
  "SsoServerPublicKeyPinningHashes": ["<pinning-hash-of-registered-sso-server>"],
  "AllowAnySsoServer": false,
  "SecurityClearance": "ValidUser",
  "Permissions": { "Northwind": "ReadWrite" }
}

Validation rules enforced by the endpoint:

• Name and at least one entry in SsoIdentifiers are required.
• Either AllowAnySsoServer = true or at least one pinning hash.
• Every pinning hash must reference a previously registered SSO server. Otherwise the request fails with a message pointing you back to the SSO server registration step.
• Each (Provider, Domain, Identifier) tuple is unique cluster-wide - edit the existing entry instead of creating a second one for the same identity.

Renewing the SSO server certificate

RavenDB identifies trusted SSO servers by their public key pinning hash, not by the certificate file.
Every SSO user entry that doesn't have AllowAnySsoServer = true is pinned to one or more specific hashes.
Public-key pinning is the same mechanism RavenDB uses for implicit trust between server and client certificates.

Renew with the same private key

If you renew the SSO server certificate with a new key pair, the hash changes and every non-AllowAnySsoServer entry stops accepting logins through that server until you re-register the new certificate and update each user entry's pinning list.

To keep SSO authentication working continuously across renewals, always renew the SSO server certificate with the same private key (the same Certificate Signing Request). The public key - and therefore the pinning hash - stays identical, and every existing SSO user entry keeps working without any change in RavenDB.

---

Practical guidance:

• Let's Encrypt via the bundled SSO certbot - already pins --key-type rsa and --reuse-key, so renewals automatically keep the public key stable. No action is needed on the RavenDB side.
• Manually managed certificates - when generating a renewal, re-use the existing CSR or private key rather than creating a fresh key pair. Most ACME clients and CAs accept a CSR-based renewal explicitly for this reason.
• If you must rotate the key - register the new SSO server certificate as a second SsoServer entry before retiring the old one. Update every SSO user entry to include the new pinning hash alongside the old one. Once all clients are on the new certificate, you can remove the old SsoServer entry and the old hash from the user entries.

Supported providers

SSO recognizes four identity providers:

SsoProvider	Typical Identifier	When to set Domain
Github	GitHub username	Not used - leave empty.
Google	Email address	Not used - leave empty.
Microsoft	Email or object id	Not used - leave empty.
Windows	user@DOMAIN	Required - set to the Kerberos realm.

Domain is only consulted when Provider = Windows. For the OAuth providers it is ignored - leave it empty (or omit it from the JSON payload).

Related reading

• SSO Overview - what the SSO application does and how the auth flow works.
• Deploying the SSO application - installer and Docker Compose setup.
• Certificate Renewal & Rotation - the public-key pinning hash mechanism that underpins SSO server trust.
