Denormalization with Embedded Tables

Source schema​

The orders table is the root table.
The order_lines table stores line items; each row belongs to an order through the order_id foreign key.
CDC Sink later uses this relationship to embed each order's lines in the Lines array.

CREATE TABLE orders (
    order_id   SERIAL PRIMARY KEY,
    customer   TEXT NOT NULL,
    status     TEXT NOT NULL DEFAULT 'pending',
    created_at TIMESTAMPTZ DEFAULT now()
);

CREATE TABLE order_lines (
    line_id    SERIAL PRIMARY KEY,
    order_id   INT NOT NULL REFERENCES orders(order_id),
    product    TEXT NOT NULL,
    qty        INT NOT NULL,
    unit_price NUMERIC(10,2) NOT NULL
);

REPLICA IDENTITY setup​

  • order_lines uses line_id as its primary key.
    The order_id column points to the parent orders row, but it is not part of the primary key.

  • With PostgreSQL's default replica identity, DELETE events for order_lines include only line_id.
    CDC Sink also needs order_id to find the parent Orders document before removing the embedded line.

  • Setting REPLICA IDENTITY FULL on order_lines makes PostgreSQL include the full old row in DELETE events,
    including order_id.

    ALTER TABLE order_lines REPLICA IDENTITY FULL;

    Learn more in REPLICA IDENTITY.

Task configuration​

Via the Client API​

Define orders as the root table.
Then define order_lines as an embedded table stored in the Lines array:

var config = new CdcSinkConfiguration
{
    Name = "Orders-CDC-Sink",
    ConnectionStringName = "ConnectionStringToPostgreSQL",
    Tables = new List<CdcSinkTableConfig>
    {
        new CdcSinkTableConfig
        {
            CollectionName = "Orders",
            SourceTableSchema = "public",
            SourceTableName = "orders",
            PrimaryKeyColumns = new List<string> { "order_id" },
            Columns =
            [
                new CdcColumnMapping() { Column = "order_id",   Name = "OrderId" },
                new CdcColumnMapping() { Column = "customer",   Name = "Customer" },
                new CdcColumnMapping() { Column = "status",     Name = "Status" },
                new CdcColumnMapping() { Column = "created_at", Name = "CreatedAt" },
            ],
            EmbeddedTables = new List<CdcSinkEmbeddedTableConfig>
            {
                new CdcSinkEmbeddedTableConfig
                {
                    SourceTableSchema = "public",
                    SourceTableName = "order_lines",
                    PropertyName = "Lines",
                    Type = CdcSinkRelationType.Array,
                    JoinColumns = new List<string> { "order_id" },
                    PrimaryKeyColumns = new List<string> { "line_id" },
                    Columns =
                    [
                        new CdcColumnMapping() { Column = "line_id",    Name = "LineId" },
                        new CdcColumnMapping() { Column = "product",    Name = "Product" },
                        new CdcColumnMapping() { Column = "qty",        Name = "Qty" },
                        new CdcColumnMapping() { Column = "unit_price", Name = "UnitPrice" },
                    ]
                }
            }
        }
    }
};

await store.Maintenance.SendAsync(new AddCdcSinkOperation(config));

Via Studio​

In Studio, first configure how the orders source table maps to the Orders target collection.
Then add order_lines as an embedded table inside each Orders document.

First, configure the root orders table:

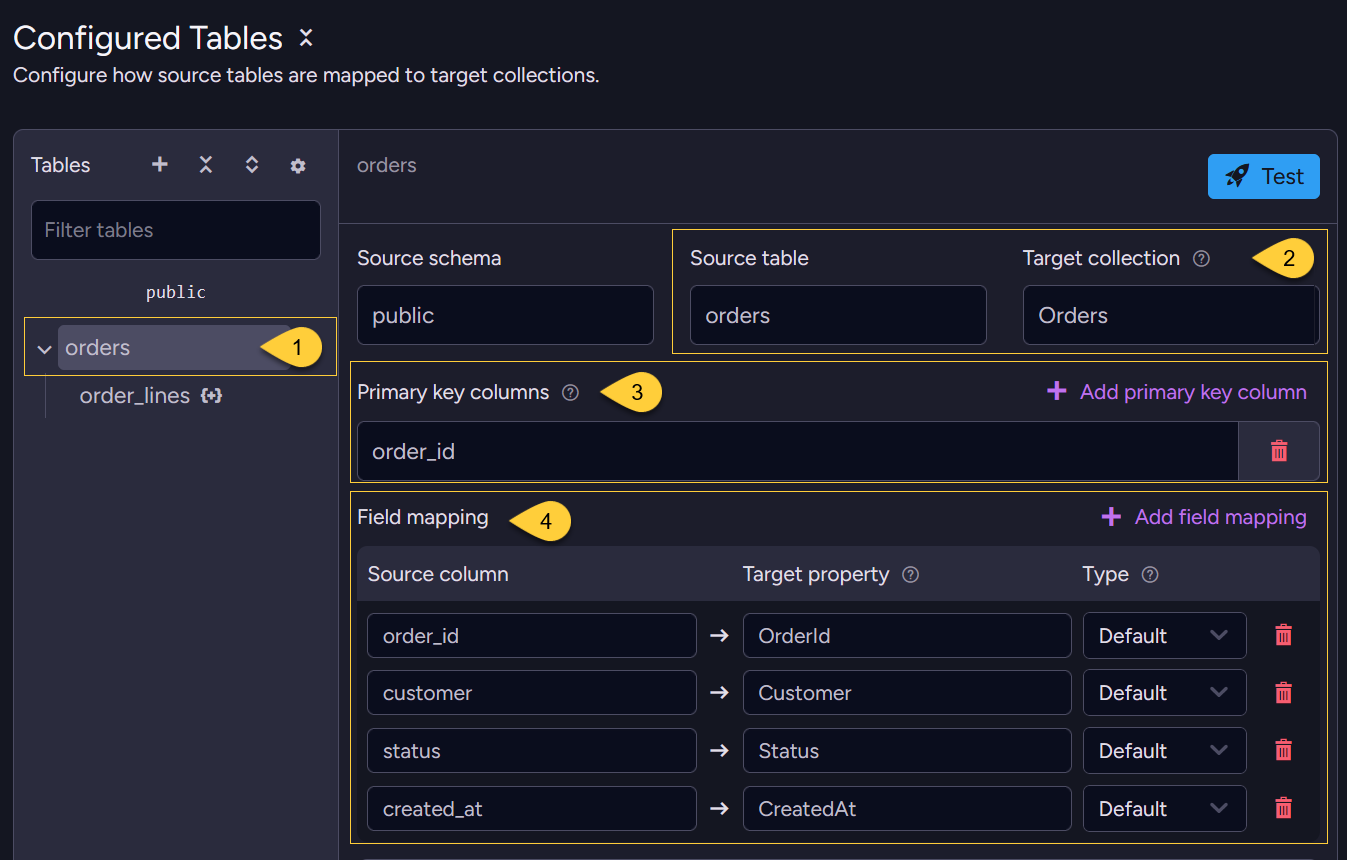

Configure tables - orders table

  1. Select the root source table to configure.
  2. Source table → target collection
    The orders table maps to the Orders collection.
    This is a root table, so each row becomes its own document.
  3. Primary key columns
    order_id is used to build the document ID for each order (Orders/<order_id>).
  4. Field mapping
    Maps each source column to its target property
    (order_id → OrderId, customer → Customer, status → Status, created_at → CreatedAt).

Then add the embedded order_lines table:

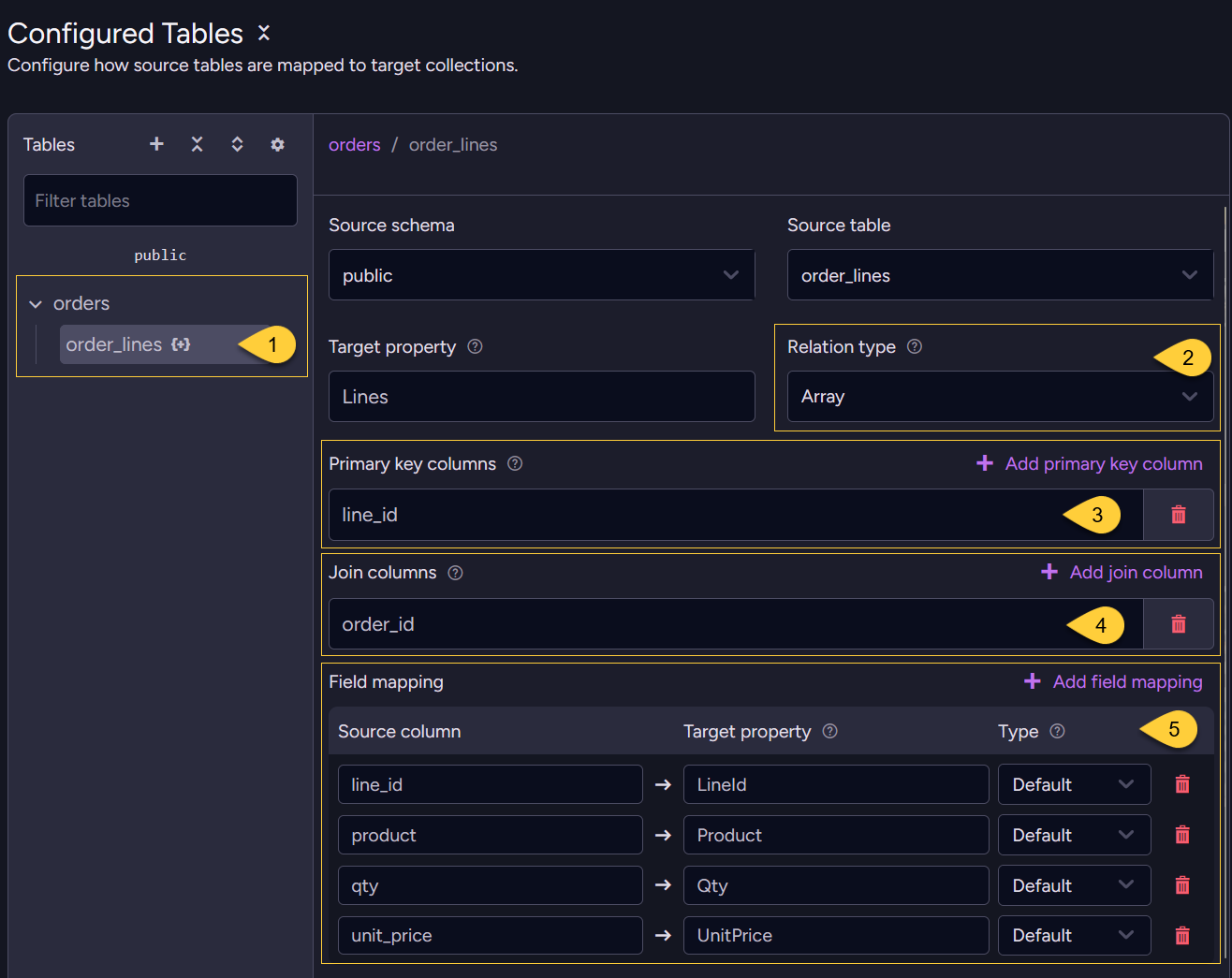

Configure tables - order_lines table

  1. Embedded table
    order_lines is configured as an embedded table inside each Orders document, not as its own collection.
  2. Relation type
    Each Orders document stores its lines as a JSON array (Type: Array in the config).
  3. Primary key columns
    line_id identifies each array element, so later updates and deletes affect the correct line.
  4. Join columns
    order_id links each line row to its parent Orders document.
    In this example, PostgreSQL DELETE events need this value to route deleted lines correctly.
  5. Field mapping
    Maps each source column to its target property, matching the Columns list in the config.

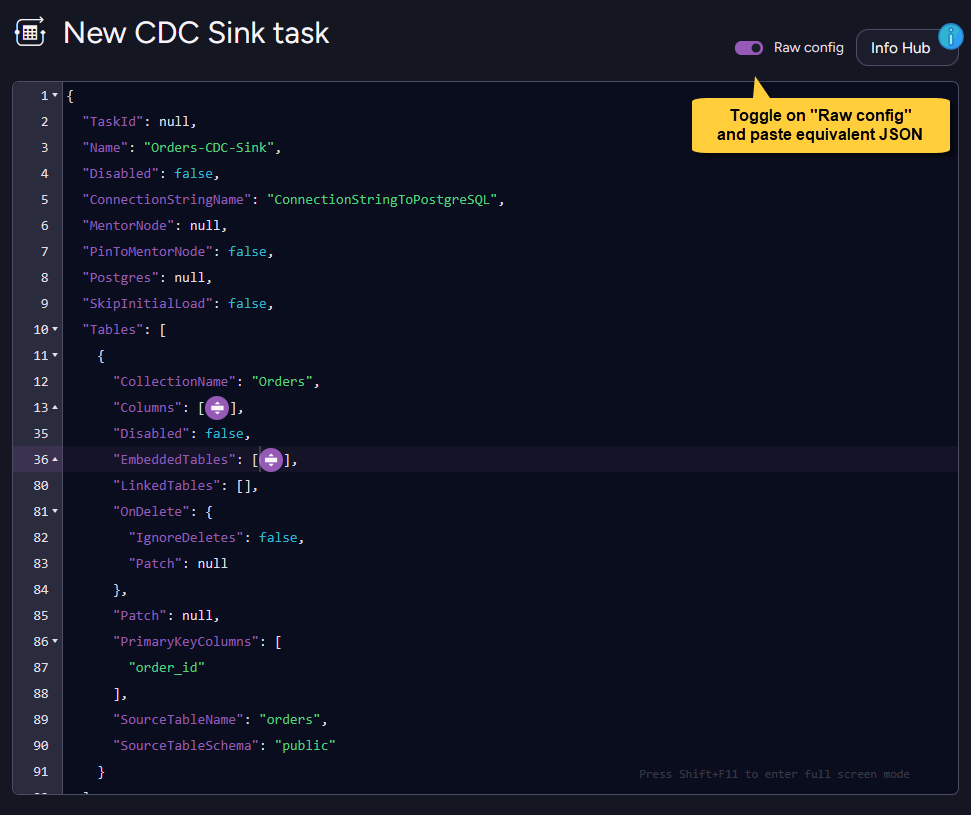

Alternatively, toggle Raw config and paste the equivalent JSON:

Use raw config

{
    "Name": "Orders-CDC-Sink",
    "ConnectionStringName": "ConnectionStringToPostgreSQL",
    "Tables": [
        {
            "CollectionName": "Orders",
            "SourceTableSchema": "public",
            "SourceTableName": "orders",
            "PrimaryKeyColumns": ["order_id"],
            "Columns": [
                { "Column": "order_id",   "Name": "OrderId" },
                { "Column": "customer",   "Name": "Customer" },
                { "Column": "status",     "Name": "Status" },
                { "Column": "created_at", "Name": "CreatedAt" }
            ],
            "EmbeddedTables": [
                {
                    "SourceTableSchema": "public",
                    "SourceTableName": "order_lines",
                    "PropertyName": "Lines",
                    "Type": "Array",
                    "JoinColumns": ["order_id"],
                    "PrimaryKeyColumns": ["line_id"],
                    "Columns": [
                        { "Column": "line_id",    "Name": "LineId" },
                        { "Column": "product",    "Name": "Product" },
                        { "Column": "qty",        "Name": "Qty" },
                        { "Column": "unit_price", "Name": "UnitPrice" }
                    ]
                }
            ]
        }
    ]
}

Resulting documents​

Assume the source tables contain these rows:

orders:      order_id=1, customer='Acme Corp', status='pending', created_at='2024-06-01 09:00:00+00'
order_lines: line_id=1, order_id=1, product='Widget A', qty=3, unit_price=9.99
order_lines: line_id=2, order_id=1, product='Widget B', qty=1, unit_price=24.99

CDC Sink creates the RavenDB document Orders/1:

{
    "OrderId": 1,
    "Customer": "Acme Corp",
    "Status": "pending",
    "CreatedAt": "2024-06-01T09:00:00+00:00",
    "Lines": [
        {
            "LineId": 1,
            "Product": "Widget A",
            "Qty": 3,
            "UnitPrice": 9.99
        },
        {
            "LineId": 2,
            "Product": "Widget B",
            "Qty": 1,
            "UnitPrice": 24.99
        }
    ],
    "@metadata": { "@collection": "Orders" }
}

What happens on change events​

INSERT into order_lines:
A new item is appended to the Lines array.

UPDATE to order_lines:
If order_id stays the same,
CDC Sink finds the item by line_id within the Lines array and updates its properties.
If order_id changes,
CDC Sink removes the line from the old parent document and adds it to the new parent document.
This also relies on the REPLICA IDENTITY FULL setup, so CDC Sink receives the old order_id.

DELETE from order_lines:
CDC Sink uses order_id to find the parent Orders document,
then uses line_id to remove the matching item from the Lines array.
This also relies on the REPLICA IDENTITY FULL setup, so CDC Sink receives order_id from the deleted row.

UPDATE to orders:
Only the root document properties (Status, etc.) are updated.
The Lines array is not affected.

DELETE from orders:
The entire Orders/1 document is deleted, including all embedded lines.
