Cluster Observer

• The primary goal of the Cluster Observer is to monitor the health of each database in the cluster and adjust its topology to maintain the desired Replication Factor.

• The observer is always running on the Leader node.

• The observer logs each decision; read the log in Studio, under the advanced-debug view's Cluster Observer Log tab.

• In this article:

  • Operation flow
  • States flow
  • Interacting with the Cluster Observer

Operation flow

• To maintain the replication factor, every newly elected Leader starts measuring the health of each node via dedicated maintenance TCP connections to all other nodes in the cluster.

• Each node reports the current status of all its databases at intervals of 500 milliseconds (by default).
  The Cluster Observer consumes these reports every 1000 milliseconds (by default).

• Upon a node failure, the Dynamic Database Distribution sequence will take place to ensure that the replication factor does not change.

  For example:

  • Let us assume a five-node cluster with servers A, B, C, D, and E.
    We create a database with a replication factor of 3 and define an ETL task.

  • The newly created database will be distributed automatically to three of the cluster nodes.
    Let's assume it is distributed to B, C, and E (so the database group is [B,C,E]),
    and the cluster decides that node C is responsible for performing the ETL task.

  • If node C goes offline or becomes unreachable, the Cluster Observer detects the issue. Initially:

    • After the duration specified in the Cluster.TimeBeforeMovingToRehabInSec configuration key, the observer moves node C to Rehab mode, allowing time for recovery.
    • The ETL task fails over to another available node in the Database Group.

  • If node C remains offline beyond the period specified in the Cluster.TimeBeforeAddingReplicaInSec configuration key, the observer begins replicating the database to another node in the Database Group as a last resort.

  Note:

  • The Cluster Observer stores its information in memory. Therefore, when the Leader loses leadership, the collected reports of the Cluster Observer and its decision log are lost.

States flow

The observer moves the members of a database group through a lifecycle of states, visible on Studio's Database Group view: Member, Promotable, and Rehab.

• When a node is added to a database group, the observer first marks the node Promotable.
  Once the node has caught up with the data of the database group and finished indexing the received data, the observer promotes the node to a full Member.

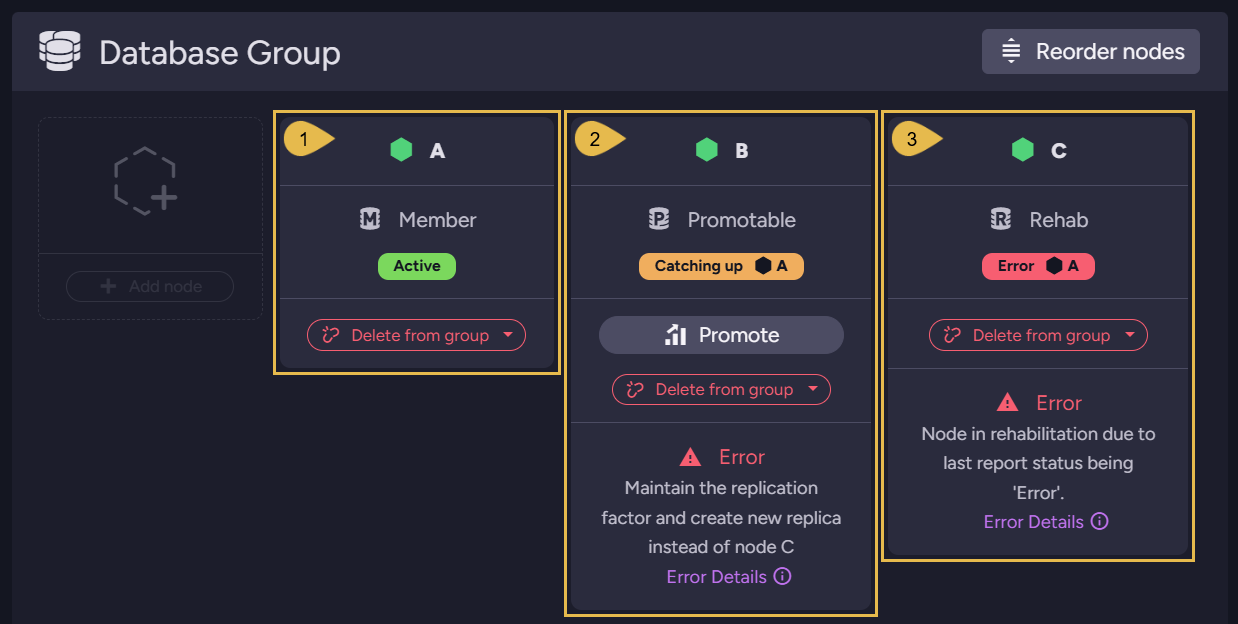

• When a member node fails, the observer demotes the failed node to Rehab, and, if the database's Dynamic Database Distribution option is enabled, restores the replication factor by adding another cluster node to the group as a Promotable node.

1. Node A
   A healthy group member.

2. Node B
   The replacement: the observer added node B to the group as a Promotable node, and B is catching up with the group's data.
   The message on B's card states the observer's reasoning: maintain the replication factor and create a new replica instead of node C.

3. Node C
   The failed node, demoted to Rehab; the card shows the error that took C out of service.

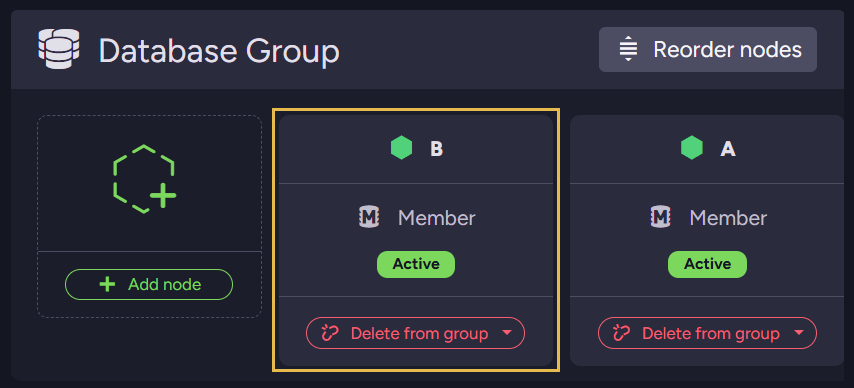

Once the replacement has caught up and is promoted, the replication factor is restored and the observer removes the failed node from the group:

• Node B
  The replacement, now a full Member.
  Node C is no longer part of the group; the database data C holds is deleted only after C returns and has replicated to the group any documents the group lacks.

Interacting with the Cluster Observer

You can interact with the Cluster Observer using the following REST API calls:

URL	Method	Query Params	Description
/admin/cluster/observer/suspend	POST	value=[bool]	Setting false will suspend the Cluster Observer operation for the current Leader term.
/admin/cluster/observer/decisions	GET		Fetch the log of the recent decisions made by the cluster observer.
/admin/cluster/maintenance-stats	GET		Fetch the latest reports of the Cluster Observer

Studio's advanced-debug view surfaces both in its Cluster Observer Log tab: the Suspend cluster observer button and the decisions table.
