Performance Views: IO Stats

• The IO Stats Studio views draw a timeline of the disk operations performed by Voron, RavenDB's storage engine.
  Use these views to follow a server's disk activity as it happens, and to spot the operations that are slow to complete.

• The database IO Stats view (opened from Stats) covers a single database.
  The server-wide IO Stats view (opened from Manage Server) covers the server-wide and cluster-level data RavenDB keeps outside any user database.
  Both views present the same graph layout over different data.

• RavenDB keeps the recorded measurements in memory only, so the graph starts empty after a server restart.

• The IO Stats widget on the cluster dashboard carries the same name, but shows different data: the widget reads per-drive counters from the operating system, like IOPS and throughput, while the IO Stats views show the operations RavenDB itself performed.

• In this article:

  • Database IO Stats
    • Index tracks
    • Selecting a time range
    • What the bars measure
  • Server-wide IO Stats
  • Configuration

Database IO Stats

The database IO Stats view shows the disk activity of a single database.
Any user with read access to the database can open this view.

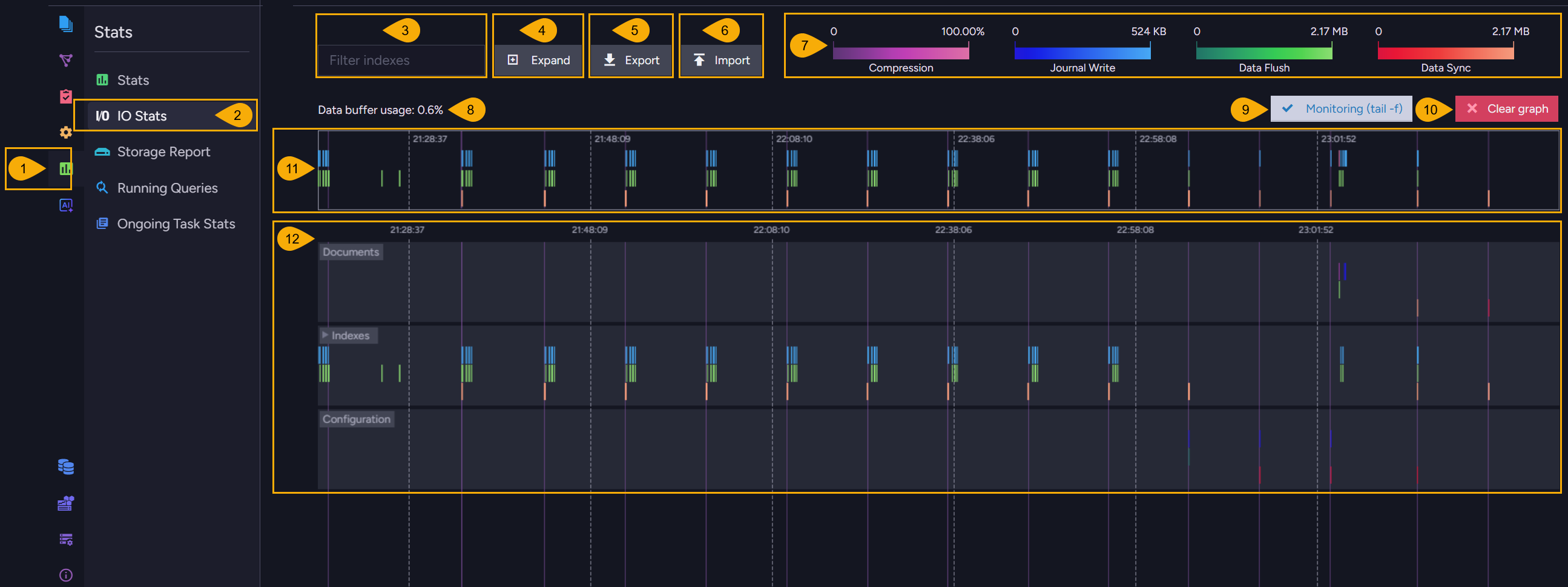

To open the database IO Stats view: Stats > IO Stats

1. Stats
   Click to open the Stats menu.

2. IO Stats
   Click to open the IO Stats view.

3. Filter indexes
   Enter a string to list only the index tracks whose names contain this string.

4. Expand
   Show a separate track for each index.

5. Export
   Save the collected measurements to a JSON file.

6. Import
   Load a file saved by Export and draw the file's measurements in the graph.
   A file exported from the server-wide view cannot be loaded into the database view.

7. Legend
   The four measurement types, each with a color scale and the range of values the scale covers.
   Learn below about what the bars measure.

8. Data buffer usage
   The share of the view's buffer that the collected measurements occupy.
   When the buffer fills, the view stops collecting and asks you to clear the graph.

9. Monitoring (tail -f)
   Keep the graph scrolled to the newest measurements as they arrive.

10. Clear graph
    Discard the measurements currently drawn.
    The view keeps collecting, and new measurements are drawn as they arrive.

11. Overview strip
    All the measurements the view has collected, drawn over the whole collection period.
    Drag across the strip to select a time range.

12. The graph
    Each track is one storage environment of the database: Documents, Configuration, and one track per index, collapsed into a single Indexes track until you expand the track bar.
    A bar is drawn for each recorded operation, positioned at the time the operation started and sized by the operation's duration.
    The time axis does not run at a constant rate: an idle period longer than ten seconds is collapsed, so consecutive labels can jump forward by minutes. A vertical line marks each collapsed period, and hovering over one of these lines shows the period's start time and duration.

Index tracks

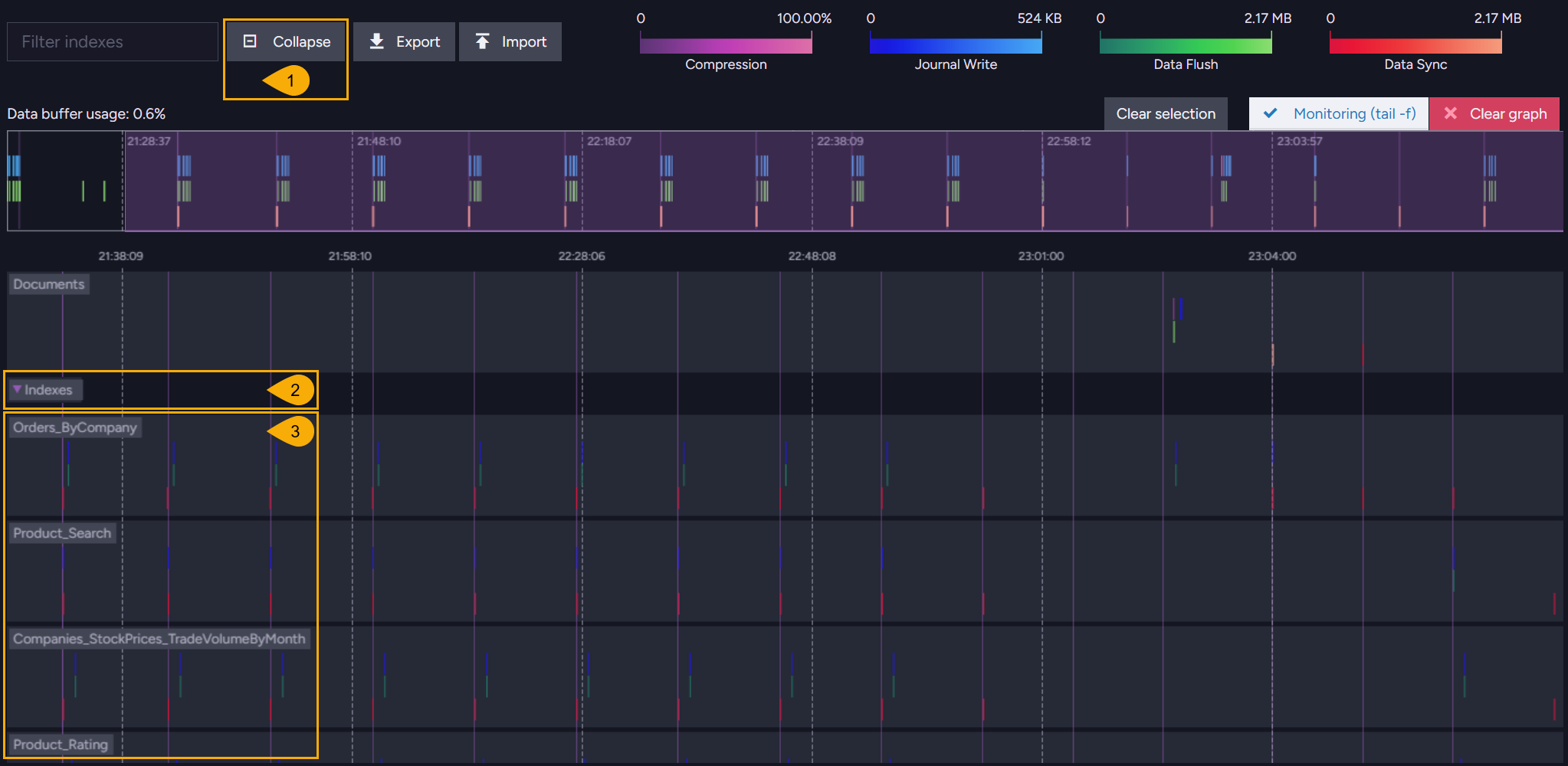

Click Expand to draw a separate track for each index.
When the expanded tracks do not fit the view, you can drag the graph area up or down to reach the rest.

1. Collapse
   Fold the index tracks back into a single Indexes track.

2. Indexes
   The arrow on the track bar shows whether the index tracks are expanded or collapsed.
   Clicking the arrow expands and collapses the index tracks as well.

3. Index tracks
   One track per index, labeled with the index name as it appears on disk.
   Characters that cannot appear in a file name are replaced with an underscore, so the index Orders/ByCompany is labeled Orders_ByCompany.
   An index name of 64 characters or more is shortened, and a hash is appended to keep the label unique.

Selecting a time range

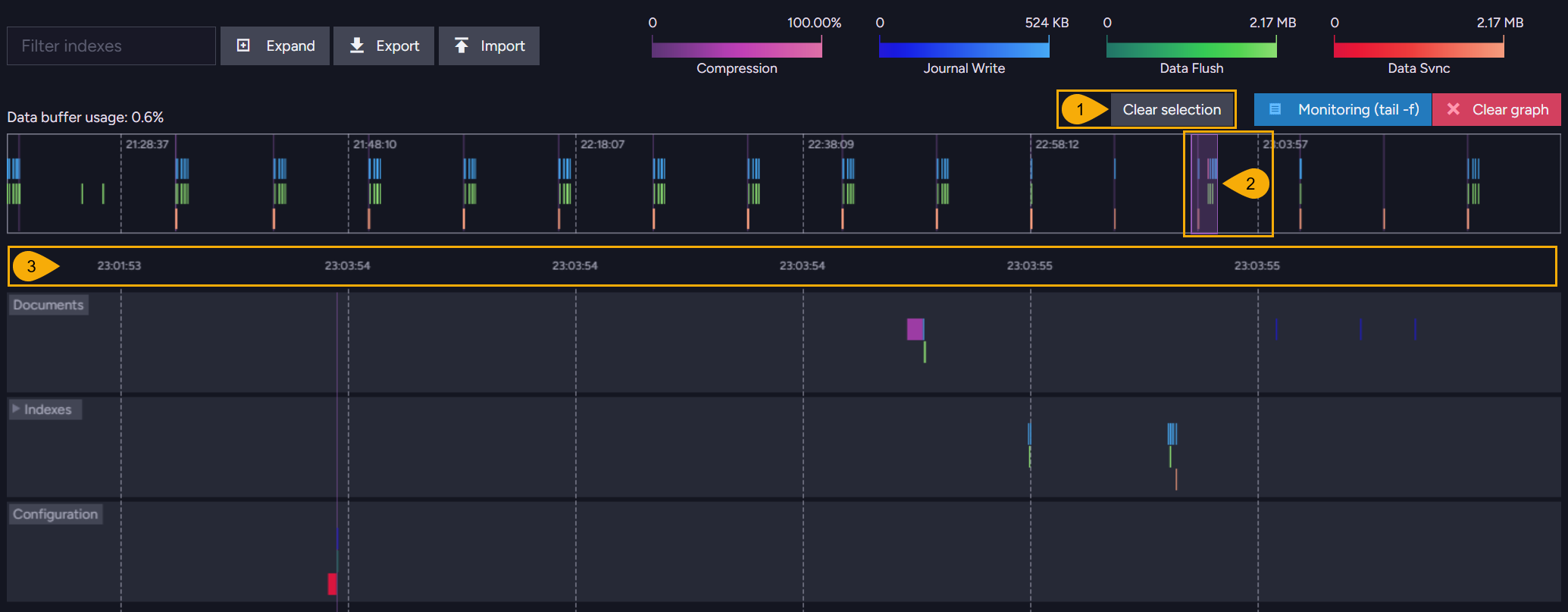

To examine a busy period closely, select a time range in the overview strip: the main graph then covers only the selected range.
Zooming with the mouse wheel over the graph narrows the range as well, and turns off Monitoring (tail -f).

1. Clear selection
   Return the main graph to the whole collection period.

2. The selected range
   The part of the collection period the main graph covers, highlighted in the overview strip.
   Drag the edges of the highlighted area to widen or narrow the range, and drag its middle to move the range along the strip.

3. The main graph's time axis
   The timestamps now span the selected range alone. In the example above, the range is short enough that consecutive labels fall within the same second.

What the bars measure

The color of a bar tells which operation RavenDB measured. Each measurement type has its own row inside a track, and its own color scale in the legend:

Measurement	Description
Journal Write	Writing a committed transaction to the storage environment's write-ahead journal file. This is a write to the disk.
Compression (Compression Ratio in the details popup)	Compressing a transaction's data before the data is written to the journal. This is a memory operation rather than disk activity, and it is measured only for transactions larger than the size set in Storage.CompressTxAboveSizeInKb.
Data Flush (Voron Data Flush in the details popup)	Writing pages from the journals into the data file. The pages are copied into the memory-mapped data file, so a flush is fast; the data reaches the disk on the next sync.
Data Sync (Voron Data Sync in the details popup)	Syncing the data file to the disk. Each sync covers all the pages flushed since the previous sync, so a sync bar is usually large and appears far less often than a flush.

The four measurements are not four stages of every write.
A committed transaction always produces a journal write, and produces a compression bar only when the transaction is large enough. Flushes and syncs run in the background on their own schedules, so a busy database typically shows many journal writes, fewer flushes, and a few large syncs.

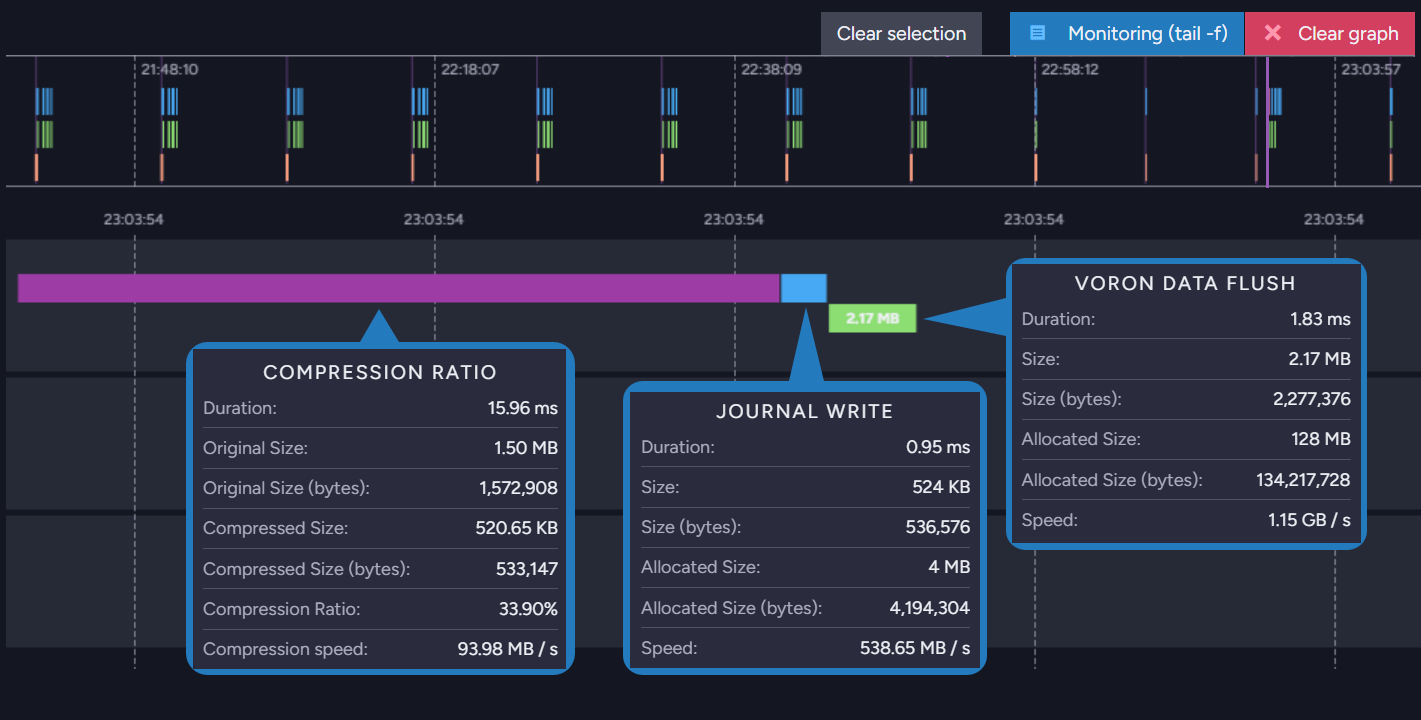

Hovering over a bar shows the details of the operation the bar represents:

For a journal write, a flush, or a sync, the popup shows the operation's duration, the amount of data the operation handled (Size), the allocated size of the file the operation wrote to (Allocated Size), and the resulting speed.
For a compression, the popup shows the duration, the original and compressed sizes, the compression ratio, and the compression speed.
Each size is given both in a rounded form and in bytes.

Server-wide IO Stats

The server-wide IO Stats view shows the disk activity of the server-wide and cluster-level data RavenDB keeps outside any user database.
Only users with Operator security clearance can open this view.

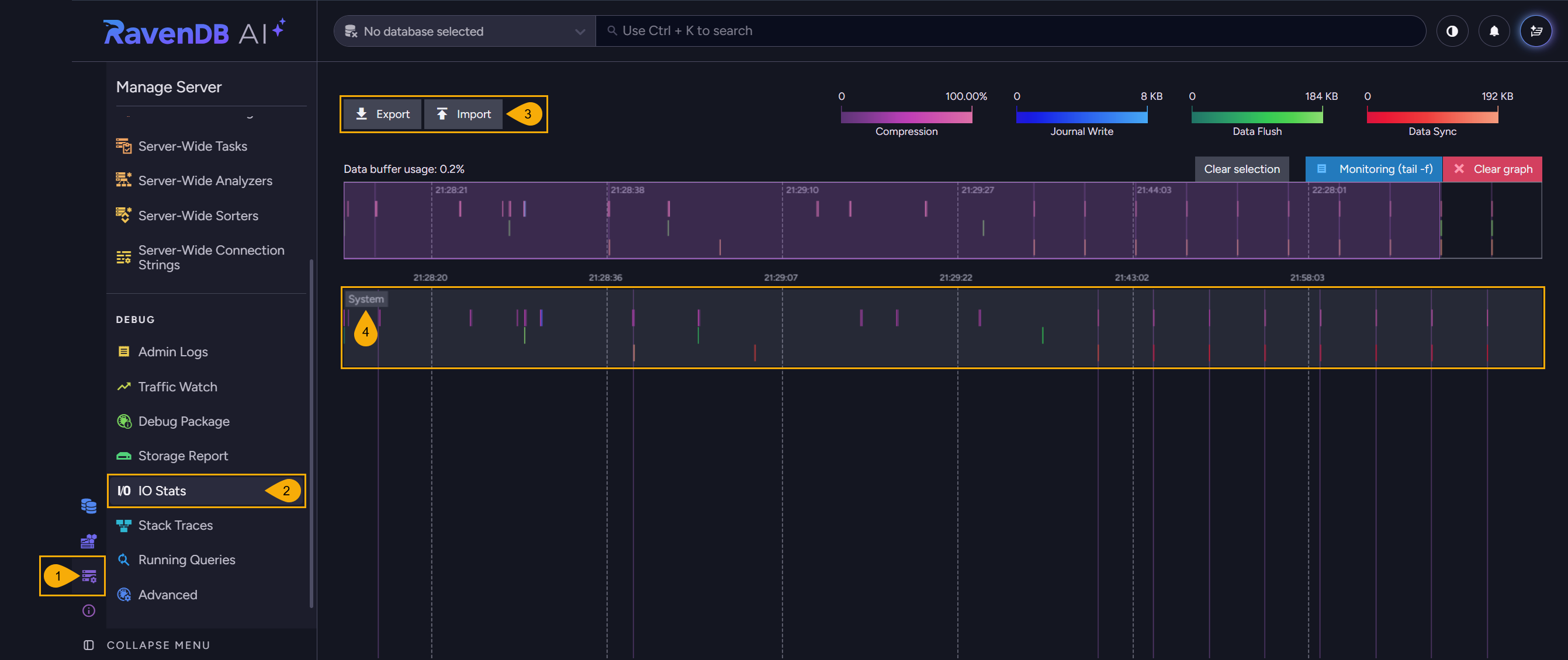

To open the server-wide IO Stats view: Manage Server > IO Stats

1. Manage Server
   Click to open the Manage Server menu.

2. IO Stats
   Click to open the IO Stats view, under the Debug group.

3. Export and Import
   Save the collected measurements to a JSON file, and load a file saved from this view.
   A file exported from a database cannot be loaded into the server-wide view.
   The index filter and the Expand and Collapse buttons are absent, since this view has no index tracks.

4. System
   The single track of this view, covering the server-wide and cluster-level data.
   Compression bars appear in this track for nearly every transaction, because the size threshold that limits compression in a database does not apply to the server-wide data.

Configuration

Four server configuration keys affect the measurements the IO Stats views draw:

Configuration key	Description
Storage.IO.Metrics.Enabled	Enables the collection of I/O measurements, true by default. With this key set to false, RavenDB records nothing and both views stay empty.
Storage.CompressTxAboveSizeInKb	The transaction size above which RavenDB compresses transaction data. Only transactions above this size produce compression bars.
Storage.SyncJournalsCountThreshold	The number of journal files that triggers a sync of the data file. This threshold governs the frequency of the data sync bars.
Storage.IoMetricsCleanupIntervalInHrs	The interval at which RavenDB removes collected measurements from memory, 24 hours by default. The cleanup runs as part of a database's idle operations.
