Debug: Advanced-debug View

• Studio's advanced-debug view has six diagnostic tabs.
  Use these tabs to inspect the server's threads and memory mapped files, follow the Cluster Observer's decisions, browse the Raft log, and record and replay a database's transaction commands.

• Open the view from the Manage Server menu's Debug section.

• In this article:

  • The advanced-debug view
  • Threads Runtime Info tab
  • Memory Mapped Files tab
  • Cluster Observer Log tab
  • Cluster Debug tab
    • The cluster summary
    • The Log Entries table
  • Record Transaction Commands tab
  • Replay Transaction Commands tab

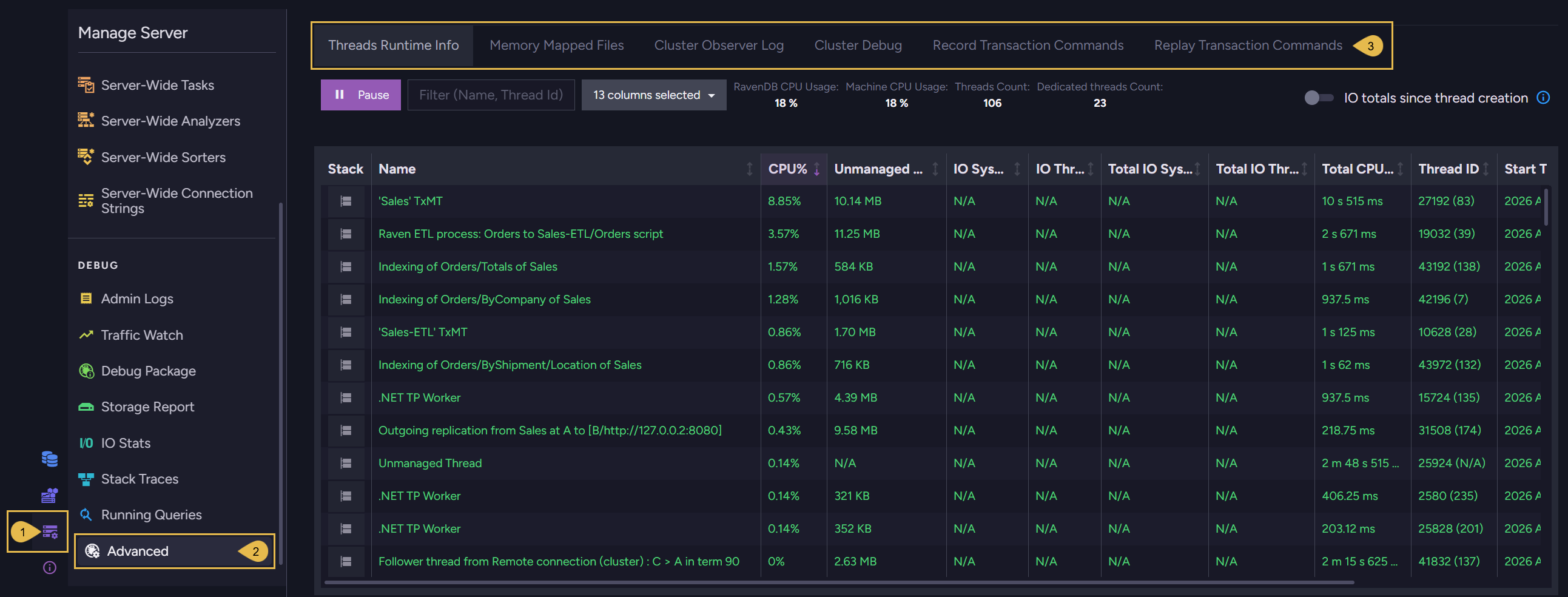

The advanced-debug view

Each tab of the advanced-debug view is an independent utility.
Any user with an Operator or Cluster Admin security clearance can open the view.
Manage Server > Advanced

1. Manage Server
   Open the Manage Server menu.

2. Advanced
   Open the advanced-debug view.

3. Tabs
   Switch between the view's tabs.
   Each of the following sections describes one tab.

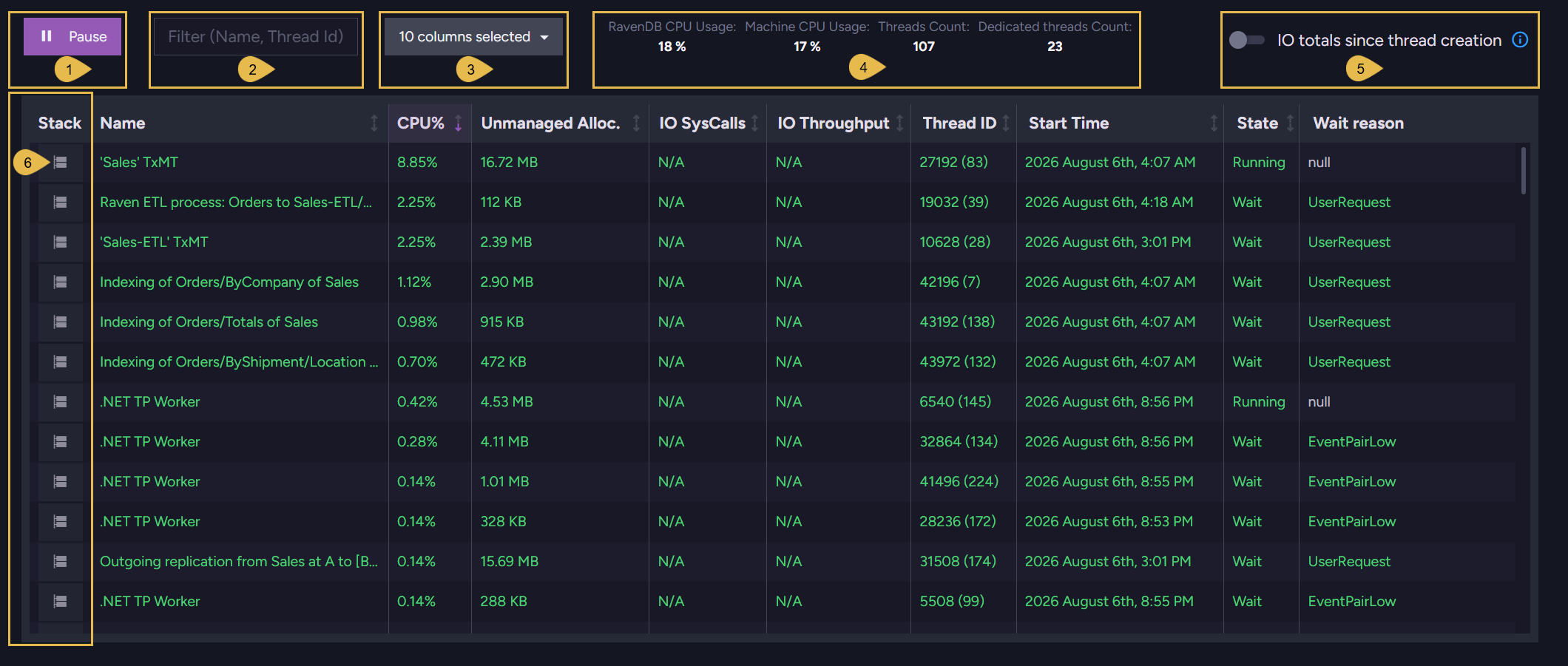

Threads Runtime Info tab

When the server consumes more CPU or memory than you expect, use the Threads Runtime Info tab to find out which threads are responsible.
This tab lists the threads of the server you are connected to, along with the resources each thread consumes.
RavenDB names the threads it dedicates to a job, so a thread's name often points directly at the component at fault.
The table is live: the server streams thread statistics to Studio, and the rows are updated as the data arrives.

1. Pause
   Stop the live updates.
   After pausing, reconnect the stream using the same button (now labeled Resume).

2. Filter
   List only the threads whose name or thread ID contains the text you enter.

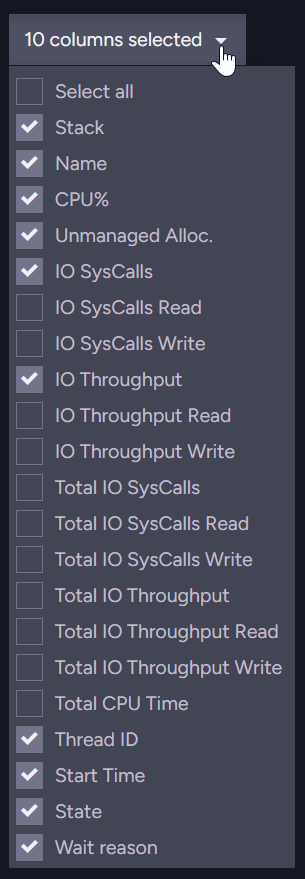

3. Columns
   Select the columns the table shows.

   The table's columns describe each thread's identity, CPU and memory consumption, I/O activity, and current state.



   I/O statistics are collected on Linux only; on other operating systems the I/O columns show N/A.

   Column	Description
   Stack	Click to see the thread's stack trace.
   Name	The thread's name.
   CPU%	The portion of CPU the thread used over the last sampling interval.
   Unmanaged Alloc.	The unmanaged memory allocated by the thread.
   IO SysCalls	The rate of the thread's I/O system calls, per second.
   IO SysCalls Read IO SysCalls Write	The read and write portions of IO SysCalls.
   IO Throughput	The rate of data the thread reads and writes, per second.
   IO Throughput Read IO Throughput Write	The read and write portions of IO Throughput.
   Total IO SysCalls	The number of I/O system calls the thread performed over the period set by the IO totals since thread creation toggle.
   Total IO SysCalls Read Total IO SysCalls Write	The read and write portions of Total IO SysCalls.
   Total IO Throughput	The amount of data the thread read and wrote over the period set by the IO totals since thread creation toggle.
   Total IO Throughput Read Total IO Throughput Write	The read and write portions of Total IO Throughput.
   Total CPU Time	The processor time the thread has consumed since the thread started.
   Thread ID	The thread's operating-system ID, with the managed (.NET) thread ID in parentheses. N/A marks a thread with no managed ID.
   Start Time	The time the thread started.
   State	The thread's current state, e.g., Running or Wait.
   Wait reason	The reason a waiting thread waits, when the operating system reports one.

4. Counters

   • RavenDB CPU Usage
     The portion of the machine's CPU that the RavenDB server consumes.
   • Machine CPU Usage
     The CPU usage of all running processes together.
     When the machine's CPU is overloaded, compare this figure with RavenDB CPU Usage to tell whether RavenDB is the source of the overload.
   • Threads Count
     The number of threads the tab's table currently lists (with the filter applied).
   • Dedicated threads Count
     The number of threads RavenDB dedicates to a specific job (e.g., a database's transaction merger or an index's worker thread).

5. IO totals since thread creation
   Enable this toggle to accumulate the Total IO statistics over each thread's whole lifetime, or disable the toggle to restart the count each time the stream starts.

6. Stack
   Click a thread's stack icon to see the corresponding stack trace.

   A thread's stack trace is the chain of method calls the thread is executing.
   When a thread consumes excessive CPU or seems stuck, read the trace to learn the exact code the thread executes, and the RavenDB feature this code belongs to.

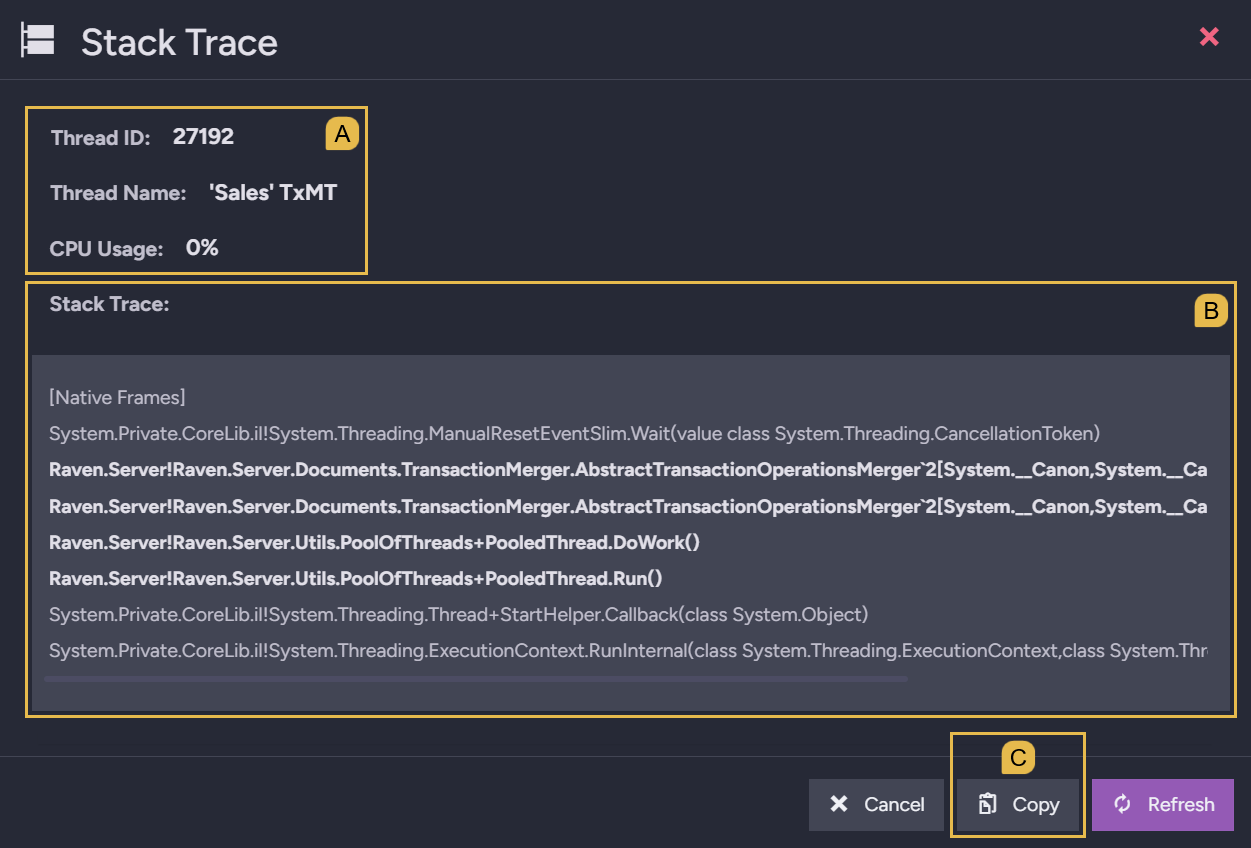

   • A. Thread details
     The thread's ID, name, and current CPU usage.

   • B. Stack Trace
     The captured stack trace.

     • The trace is a snapshot, listing the methods the thread had started and not yet finished at the moment of capture.
     • Each line holds a frame, a record of one method call (e.g., Raven.Server!Raven.Server.Utils.PoolOfThreads+PooledThread.Run() in the image above).
     • The frames are ordered from the newest method call at the top to the oldest at the bottom: each frame's method was called by the method in the frame beneath, so the trace opens with the method the thread executes right now and ends with the thread's first method.
     • The trace includes methods of RavenDB's own code and methods of the .NET runtime environment that runs RavenDB.
       RavenDB's methods are shown in bold, so the frames that tie the thread to a RavenDB feature stand out.

   • C. Copy
     Copy the stack trace to the clipboard.

   Click Refresh to sample the stack trace again without closing the dialog.

   This dialog captures the stack trace of a single thread.
   To capture the stack traces of all server threads at once, use the Stack Traces view.

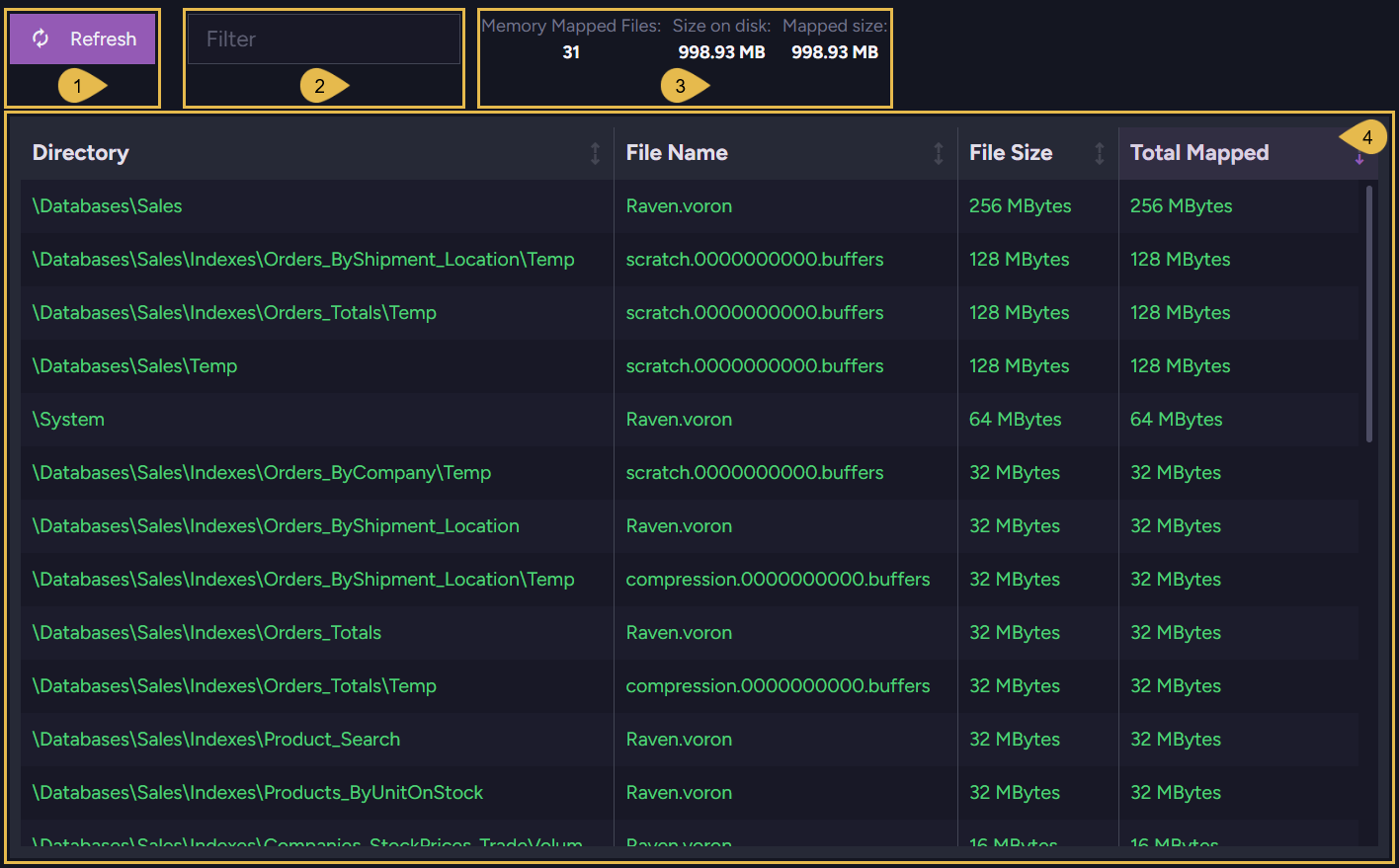

Memory Mapped Files tab

RavenDB's storage engine is based on memory mapped files.
When the server's memory usage seems excessive, use the Memory Mapped Files tab to check the extent of these mappings: the tab lists the files the server currently maps, and the portion of each file that is mapped into memory.

1. Refresh
   Reload the list of mapped files.
   The list is loaded once, when the tab opens, and the server continues to map and unmap files while the tab is open; refresh the list to load the current mappings.

2. Filter
   List only the files whose name or directory contains the text you enter.

3. Counters

   • Memory Mapped Files
     The number of files listed.
   • Size on disk
     The total size of the listed files.
   • Mapped size
     The total portion of the listed files that is mapped into memory.

   All three counters cover only the files the table currently lists; files hidden by the filter are not counted.

4. The table
   Each row describes one mapped file: the file's directory, name, size on disk, and total mapped size.
   The table opens sorted by the Total Mapped column, from the largest mapped size to the smallest.
   A file can be mapped into memory more than once; Total Mapped sums these mappings, and hovering over a row's Total Mapped cell shows each mapping separately.

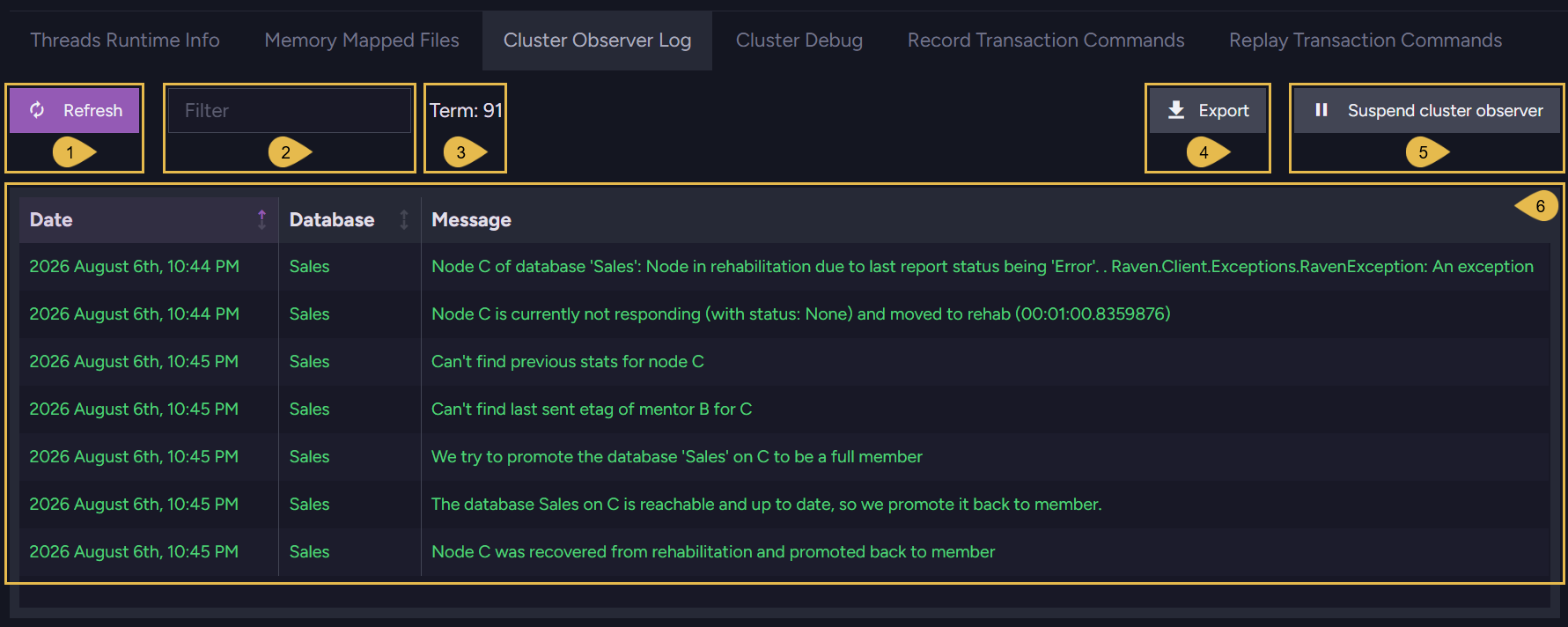

Cluster Observer Log tab

The Cluster Observer supervises the cluster's databases: running on the leader node, the observer monitors the health of each database and adjusts the database group topology when a node fails or recovers.
When a database group changes without your intervention (e.g., a node moved to Rehab, or a replacement node added to the group), read the Cluster Observer Log tab to learn the decision behind each change.
The log is retrieved from the current leader node regardless of the node your Studio is connected to.

1. Refresh
   Load the newest decisions.
   The log is loaded once, when the tab opens, and the observer continues to make decisions as the cluster runs; refresh the table to load decisions made since the last load.

2. Filter
   List only the decisions whose message contains the text you enter.

3. Term
   The cluster's current term; a term begins when a new leader is elected.
   The observer runs on the leader node and keeps the log in memory, so when the leadership changes, a new observer starts a new log under the new term.
   When the term changes while the tab is open, the tab shows a warning saying that the results are stale, with a link to refresh the log.

4. Export
   Download the log as a comma-separated text file.

5. Suspend cluster observer
   Stop the observer from making topology decisions, e.g., while you are taking cluster nodes down for maintenance and do not want the observer to rearrange database groups around the missing nodes.
   The suspension holds until the term changes; after suspending, re-enable the observer using the same button (now labeled Resume cluster observer).

6. The table
   Each row holds one observer decision: the time of the decision, the database the decision concerns, and a message describing the decision.
   In the image above the log is sorted by Date, oldest first, and follows node C from failure through rehabilitation back to Member.
   Hovering over a message shows the full message text.

Cluster Debug tab

Every cluster-wide operation, like the creation of a database or the deployment of an index, is executed as a Raft command: the leader appends the command to the cluster's Raft log and replicates the log to the other nodes, and each node applies the appended commands in order.
When a cluster-wide change does not take effect (e.g., a command waits uncommitted, or one node lags behind the others), use the Cluster Debug tab to examine the Raft log and the commit progress of each node.

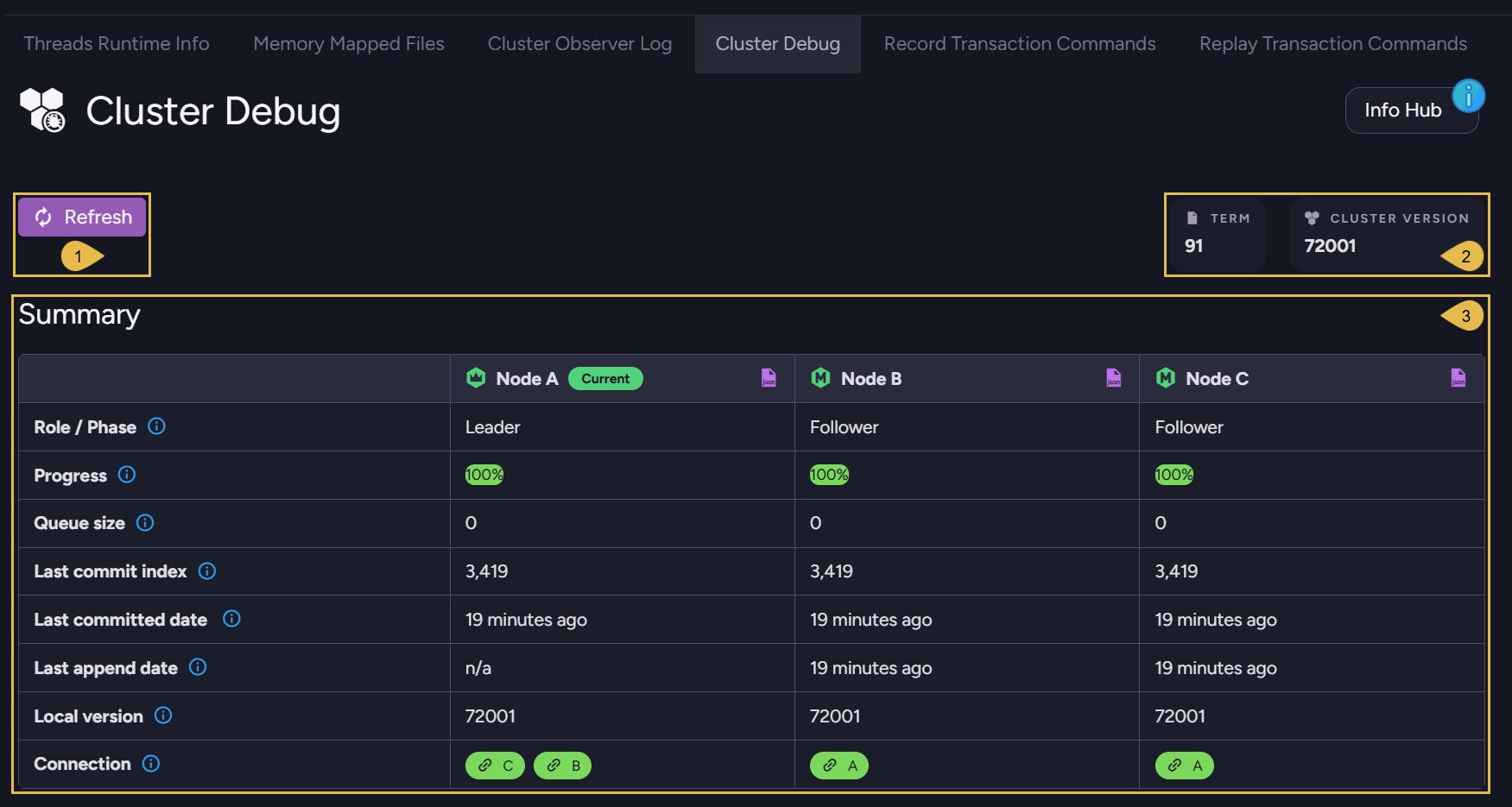

The cluster summary

1. Refresh
   Reload the summary and the log entries.
   The tab is loaded once, when the tab opens; refresh to load the nodes' current state.

2. Term and Cluster version

   • Term
     The cluster's current term; a term begins when a new leader is elected.
   • Cluster version
     The highest Raft command version number the cluster currently uses.
     The cluster executes only commands that every member recognizes, so this number can be lower than an upgraded node's Local version.

3. Summary
   One column per cluster node, reporting the node's progress through the log.
   The node Studio is connected to carries a Current badge.
   Clicking the small purple json icon beside a node's name opens the data behind the node's column, the log summary and entries, as raw JSON.

---

Row	Description
Role / Phase	The node's role: Leader, Follower, Candidate, or Passive.
Progress	The percentage of the log's Raft commands that the node has committed. Hovering over the bar shows the indexes of the first and last entries in the node's log.
Queue size	The number of Raft commands the node has not committed yet.
Last commit index	The index of the last Raft command the node committed.
Last committed date	The time the last Raft command was committed on the node.
Last append date	The time the last command was appended to the node's Raft log.
Local version	The highest Raft command version number the node recognizes. Newer RavenDB versions introduce commands with higher version numbers, unknown to nodes that run older versions.
Connection	The node's connection to each other node: a green badge marks a live connection, and a red badge marks a broken one. Clicking a badge shows the connection details.

---

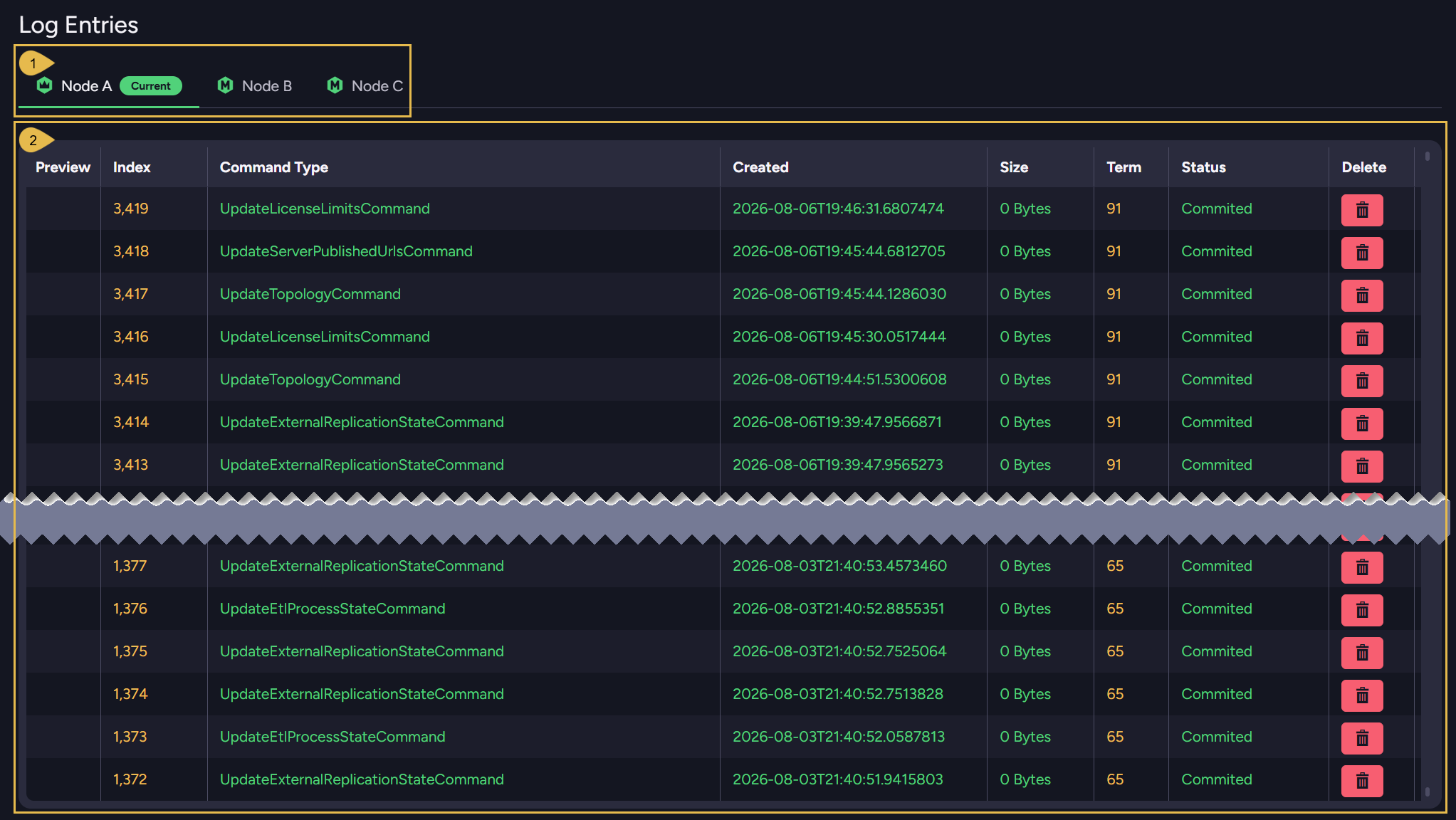

The Log Entries table

The Log Entries table, below the summary, lists the entries of one node's Raft log, the newest entry first; scrolling down loads older entries.

1. Node tabs
   Pick the node whose log the table shows.
   The leader is marked with a leader icon, and the node Studio is connected to carries a Current badge.

2. The table
   Each row holds one log entry: the entry's index, the command type, the creation time, the entry's size, the term the entry was created under, and the entry's status, Committed for a command the node has committed and Appended for a command not yet committed.

---

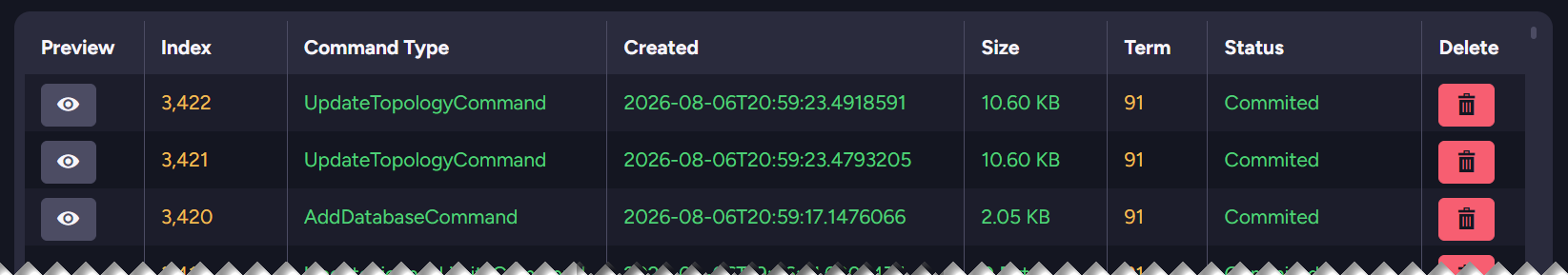

The Preview column holds a button while an entry still carries the entry's content: once a command has been committed on all cluster nodes, the command's payload is truncated from the log, and the entry remains listed as history, with a 0 Bytes size and no Preview button.

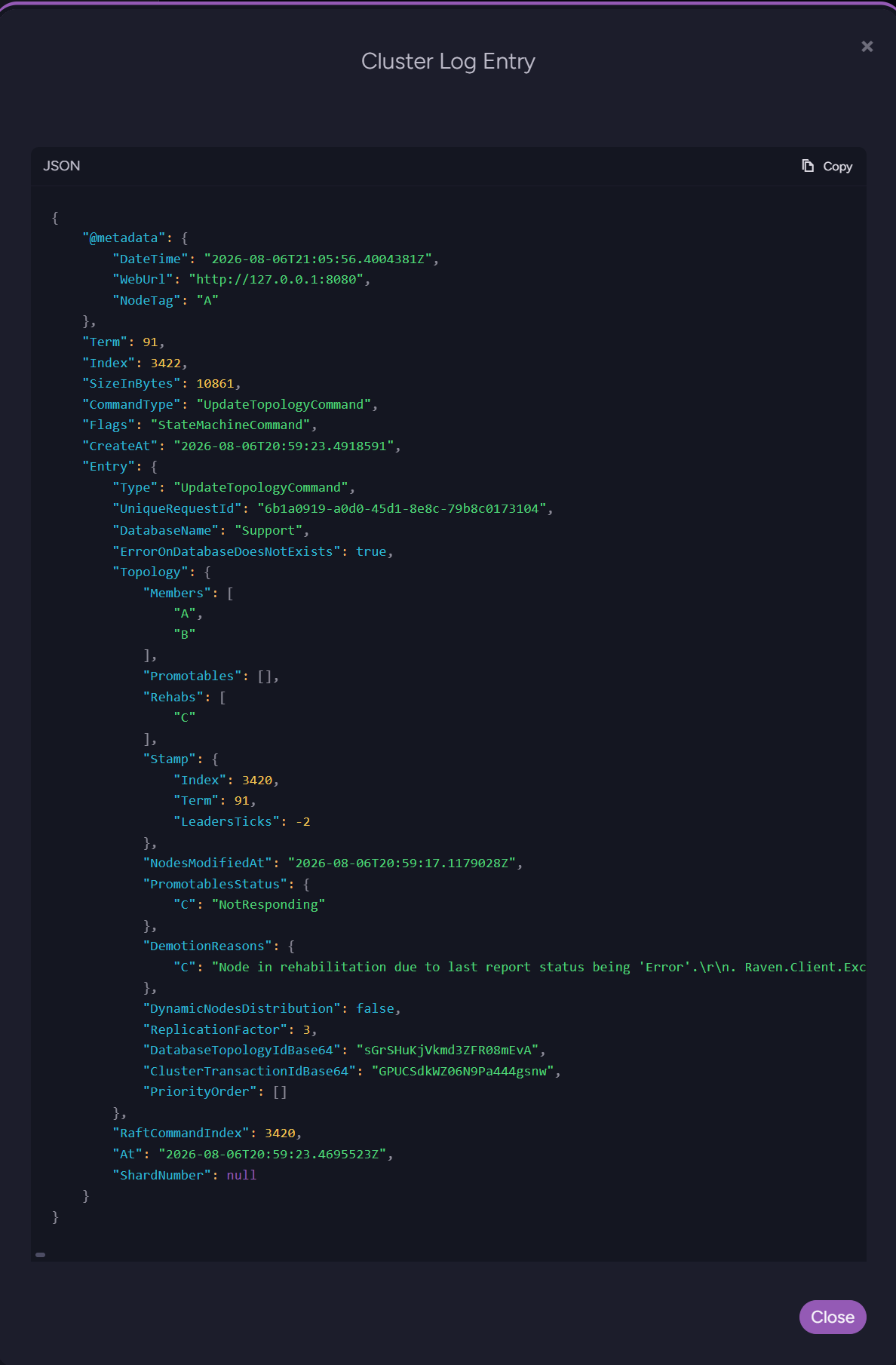

Clicking the Preview button displays the command's content in JSON format, as shown in the image below: the exact change the command carries.

---

Clicking an entry's Delete button removes the entry from the Raft log of ALL cluster nodes.
Deleting a log entry can lead to data inconsistencies and cluster instability; a confirmation dialog states the risk, and the deletion requires a Cluster Admin security clearance.

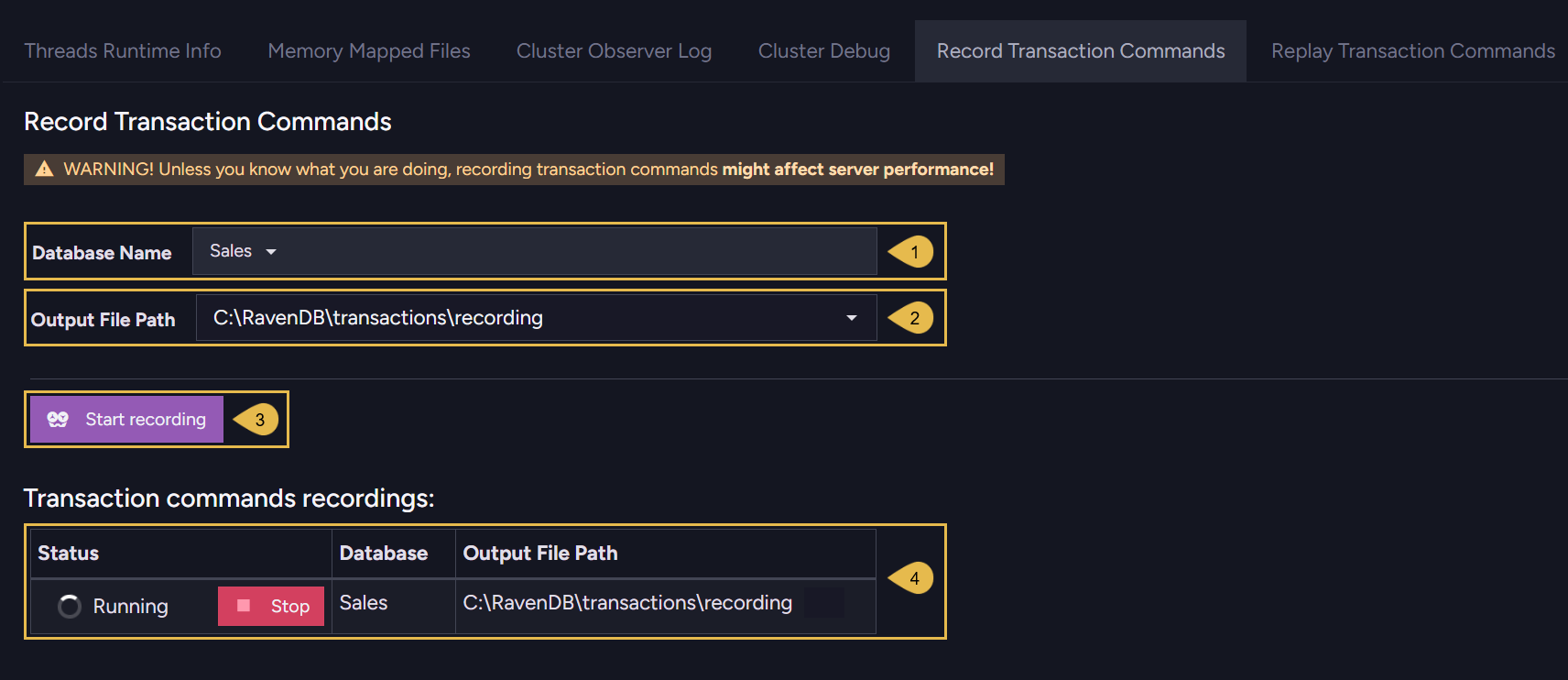

Record Transaction Commands tab

A transaction-commands recording captures the write operations a database executes (e.g., Put and Delete document operations) in a file that the Replay Transaction Commands tab can later replay on another database.
Some problems are triggered only by the exact sequence of operations that reaches the database (e.g., a document left with unexpected contents after two clients modified the document in a particular order).
Record the sequence while the problem occurs, and replay the recording elsewhere (e.g., on a test machine) to reproduce and investigate the failure.
Recording might affect the server's performance, as the warning at the top of the tab states; stop the recording once the sequence has been captured.

1. Database Name
   Select the database to record.
   One recording can run per database at a time.

2. Output File Path
   The recording file's full path on the server machine.
   As you type, the field suggests existing folders from the server file system.
   The path must name a new file. The server refuses an existing file or a directory path.

3. Start recording
   Start capturing the database's transaction commands into the output file.

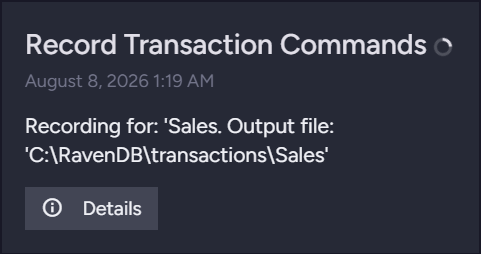

   The recording runs as an operation, tracked in the notification center.



   Click Details in the notification to reopen this tab.

4. Transaction commands recordings
   Each row holds one recording: the recording's status (Running or Completed), the recorded database, and the output file path.
   Click Stop to end a running recording; the output file is then ready for replay.

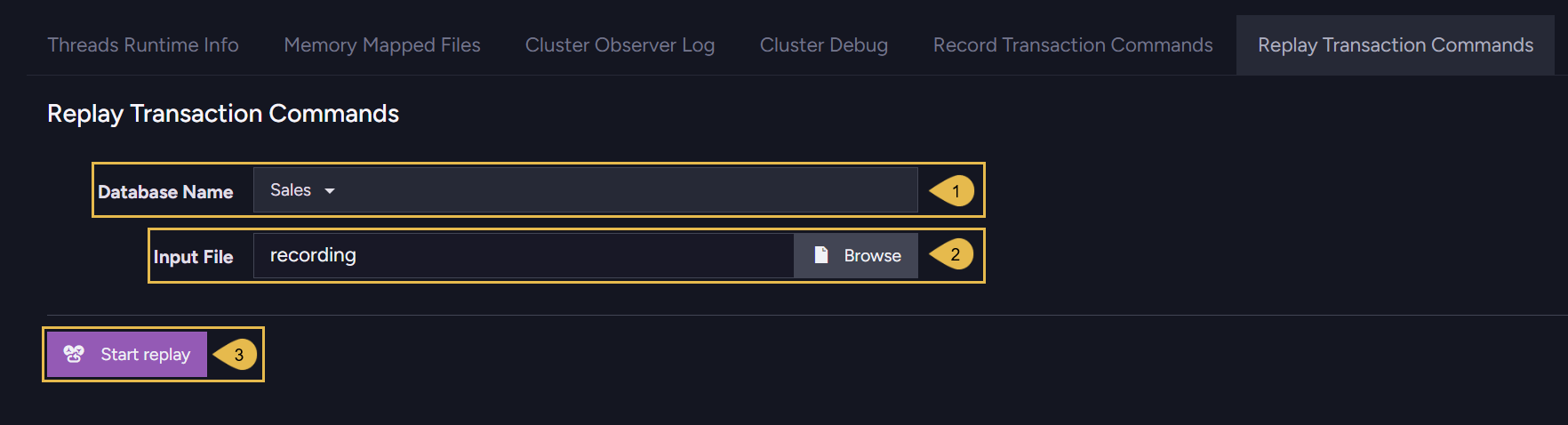

Replay Transaction Commands tab

Replaying a transaction-commands recording executes the recorded operations, in the recorded order, on a database of your choice.

The replay writes to the target database exactly as the original clients did.
Choose a target database meant for the investigation, not a production database.

1. Database Name
   Select the database to replay the recording on.

2. Input File
   The recording file to replay.
   Click Browse to select a recording file to upload.

3. Start replay
   Upload the file and execute the recorded operations.
   The replay runs as an operation; the notification center opens with the operation's progress, counting the executed commands.
