Cluster Dashboard: Widgets

• The Cluster Dashboard widgets show live diagnostics for the whole cluster, reporting each metric for every node.

• This article describes the available widgets, grouped by the kind of information each one shows.

• You can add, remove, resize, and reposition widgets.
  See Customizing the dashboard.

• In this article:

  • Cluster and license information
    • Let's Get Started
    • Cluster Overview
    • License
  • Server resource usage
    • CPU
    • Memory
    • Storage
    • IO Stats
    • GC
  • Server workload
    • Traffic
    • Indexing
  • Databases and tasks
    • Database Overview
    • Databases Notifications
    • Ongoing Tasks
    • Traffic per Database
    • Indexing per Database
    • Storage per Database

Cluster and license information

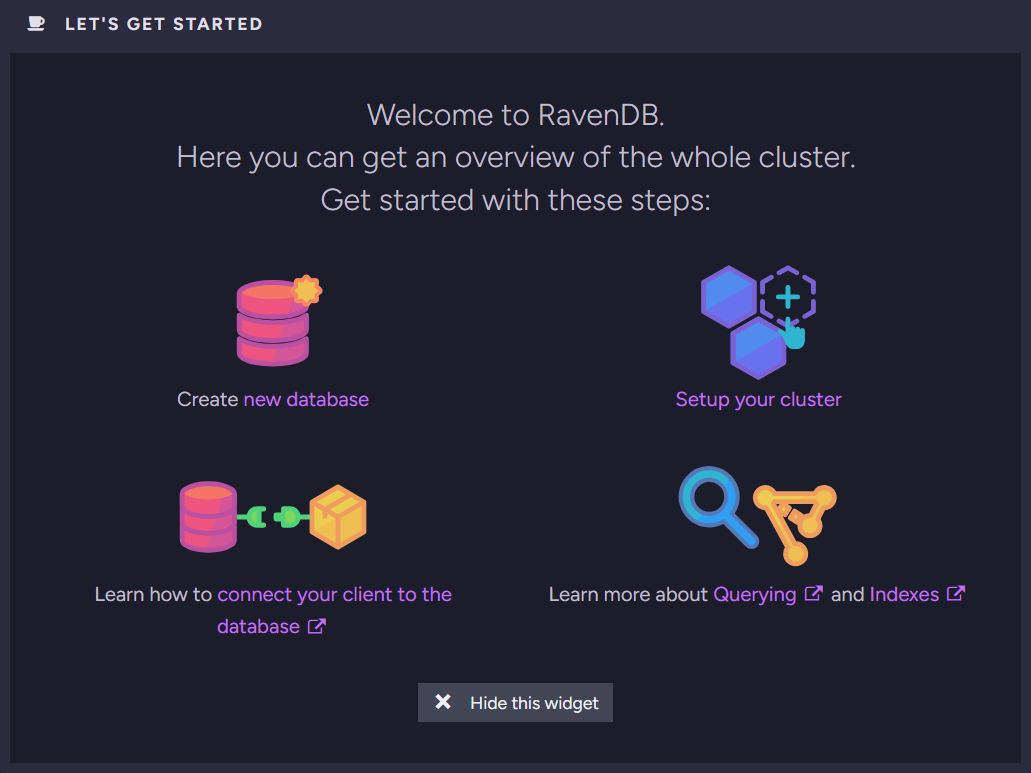

Let's Get Started

The Let's Get Started widget gives a new cluster a starting point, with links to the main setup tasks and to key RavenDB concepts.

• Create new database
  Create new database flow.

• Setup your cluster
  Opens Studio's Cluster View, where you can create and manage the cluster.

• Connect your client to the database
  Links to the Getting Started documentation page, where you can learn to connect a client through the API.

• Querying and Indexes
  Links to the RQL and What are Indexes documentation pages.

• Hide this widget
  Removes the widget from the dashboard. You can add it back later, see Customizing the dashboard.

Cluster Overview

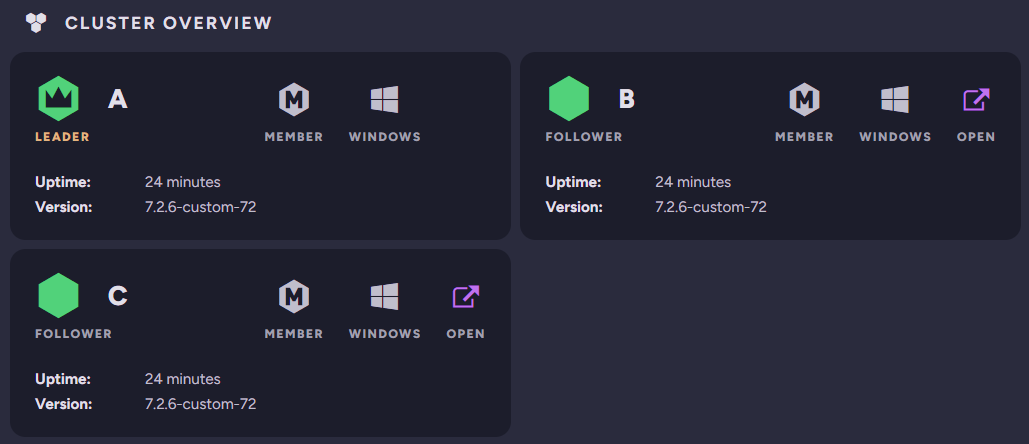

The Cluster Overview widget shows the current state of each node in the cluster.

For each node, the widget shows:

• the node's tag and role in the cluster, such as Leader or Follower.
• the node's membership type, such as Member.
• the operating system the node runs on.
• the node's uptime and RavenDB version.
• an Open button that opens a node's cluster dashboard in a new browser tab, shown for every node except the one you are currently connected to.

License

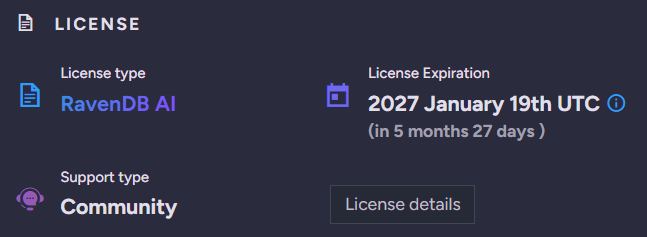

The License widget shows the details of your RavenDB license.

• License type
  The type of your RavenDB license.

• License Expiration
  The expiration date and remaining time.

• Support type
  Your support plan.

• License details
  Click to open the About view, with the full information about your license and support plan.

Server resource usage

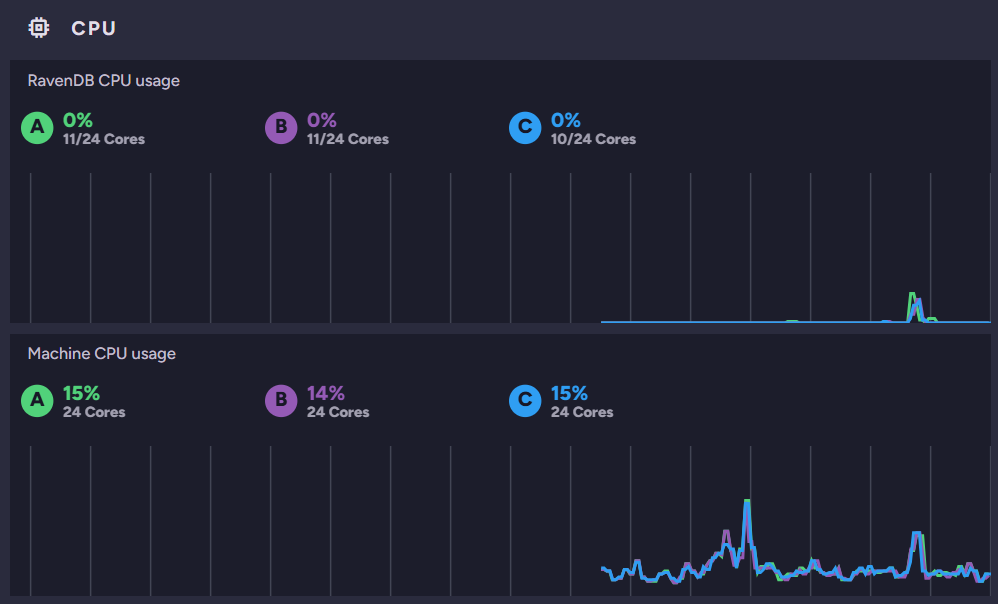

CPU

The CPU widget shows CPU usage across the cluster, per node.

• RavenDB CPU usage
  The RavenDB process's CPU usage on each node, as a percentage, and the number of cores assigned to RavenDB.

• Machine CPU usage
  The overall CPU usage on each node's machine, as a percentage, and the machine's total number of cores.

Hovering over the timeline shows earlier values.

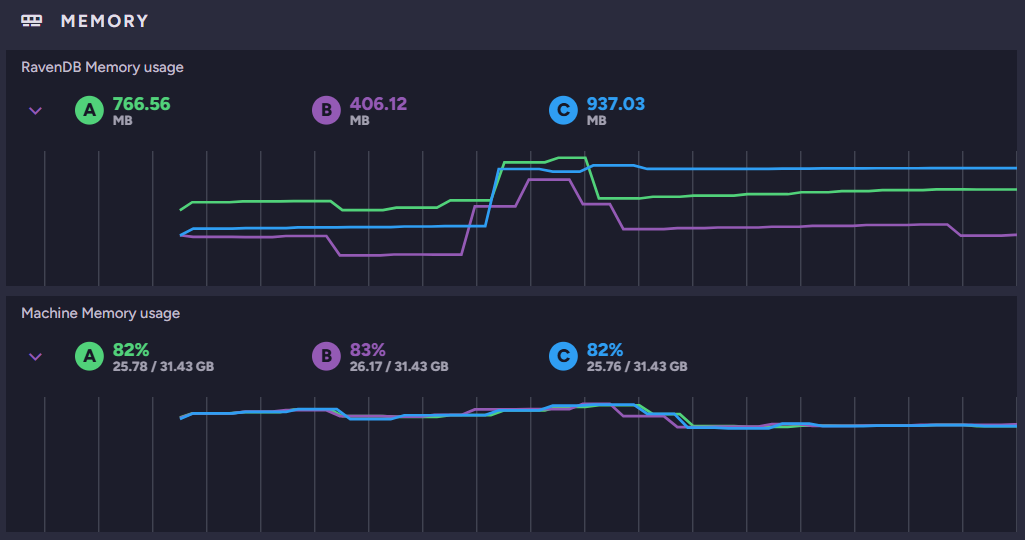

Memory

The Memory widget shows memory usage across the cluster, per node.

• RavenDB Memory usage
  The memory the RavenDB process uses on each node.

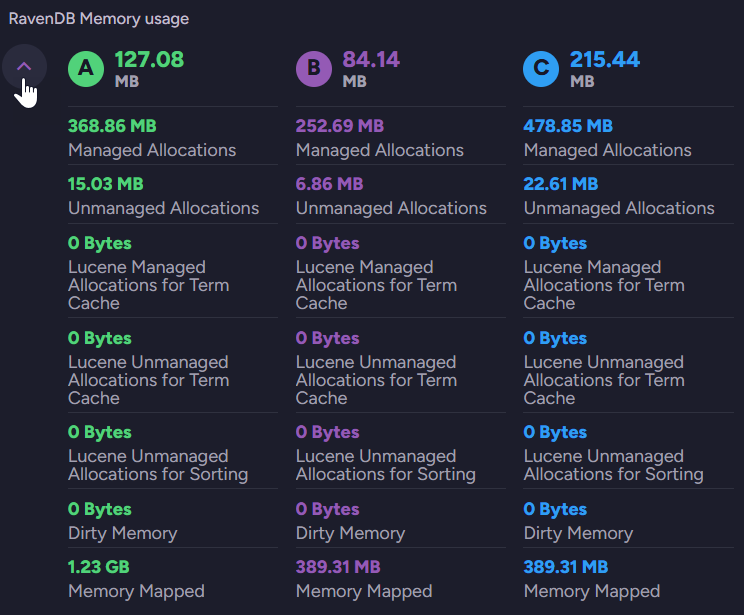

  Expand RavenDB Memory usage to see the allocation breakdown per node:



• Machine Memory usage
  The memory used on each node's machine, shown as a percentage and as used out of total.

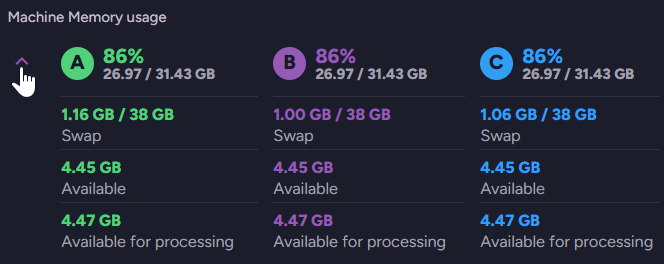

  Expand Machine Memory usage to see each node's swap usage, available memory, and memory available for processing:



Hovering over the timeline shows earlier values.

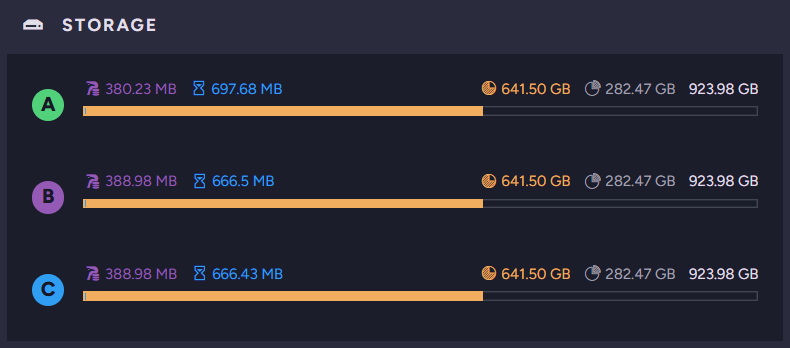

Storage

The Storage widget shows disk usage on each node.

For each node, the widget shows:

• Used by RavenDB Data
  The storage occupied by RavenDB's data.

• Used by RavenDB Temporary Buffers
  The storage occupied by RavenDB's temporary buffers.

• Storage used
  The total storage used on the drive.

• Storage free
  The free storage remaining on the drive.

• Total storage available
  The drive's total storage capacity.

IO Stats

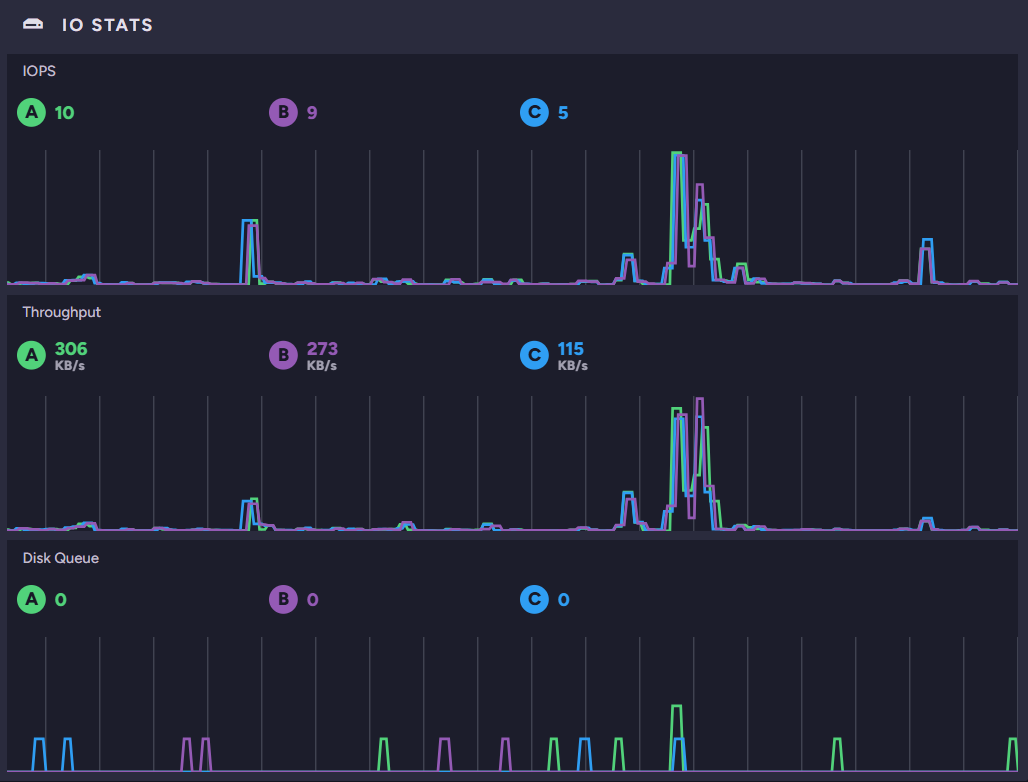

The IO Stats widget shows disk input/output activity on each node.

• IOPS
  The number of disk input/output operations per second on each node.

• Throughput
  The amount of data read from and written to disk per second on each node.

• Disk Queue
  The number of input/output operations queued on each node's disk.

Hovering over the timeline shows earlier values.

GC

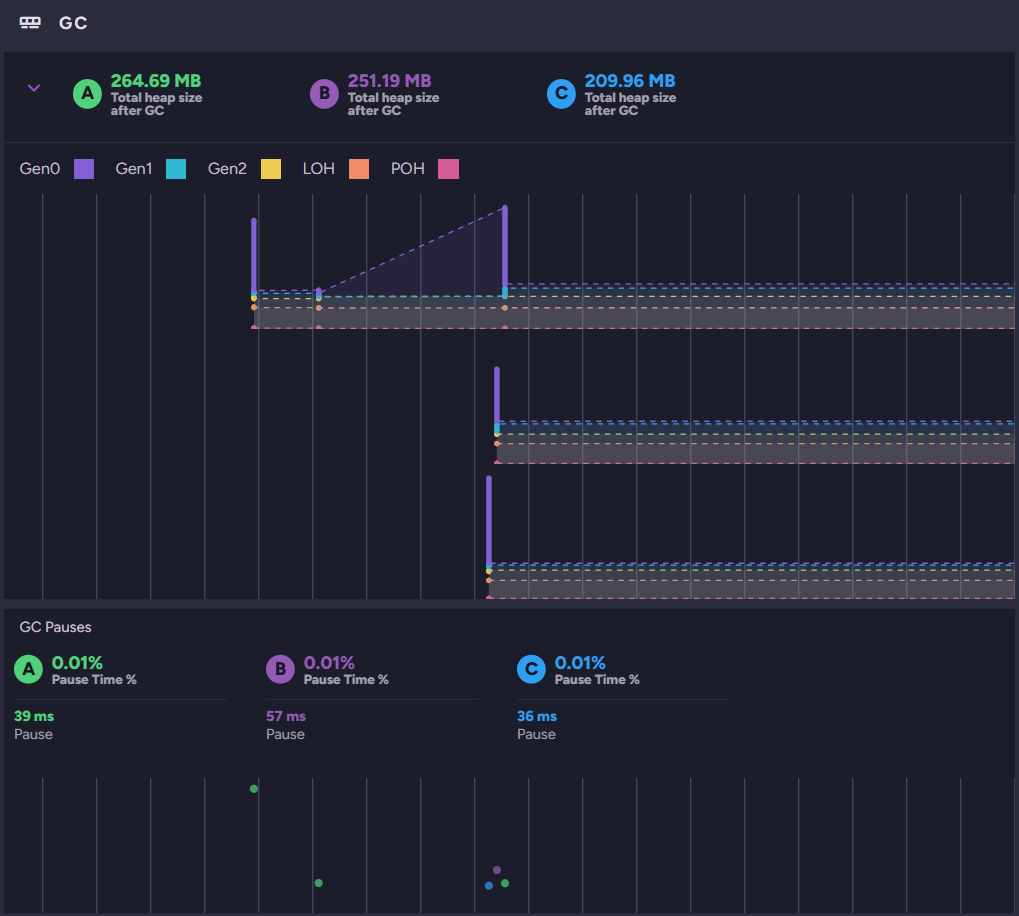

The GC (Garbage Collection) widget shows .NET garbage-collection activity for the RavenDB process on each node.

• Total heap size after GC
  The size of the managed heap on each node after its last garbage collection.

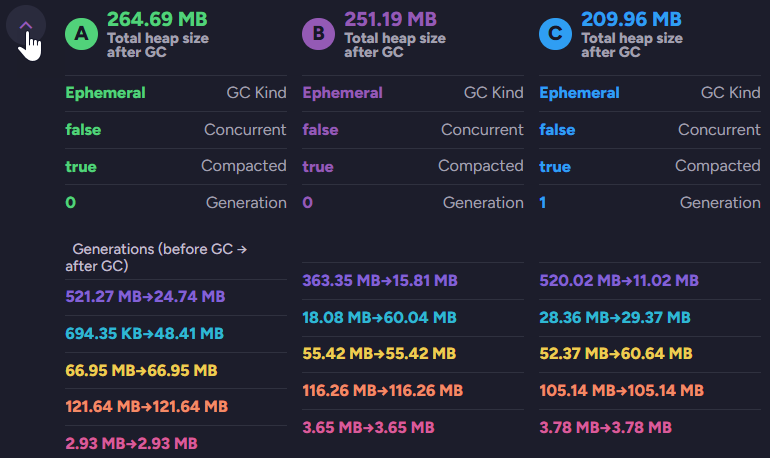

  Expand Total heap size after GC to see the details of the last garbage collection on each node:



  • GC Kind
    The type of the collection: Ephemeral, Background, or FullBlocking.
  • Concurrent
    Whether the collection ran concurrently with the RavenDB process.
  • Compacted
    Whether the collection compacted the heap.
  • Generation
    The generation the collection ran on: 0, 1, or 2.
  • Generations (before GC → after GC)
    The size of each generation before and after the collection: Gen0, Gen1, Gen2, LOH, and POH.

  The graph shows the size of each part of the managed heap, keyed by the colors in the legend: Gen0, Gen1, Gen2, LOH (Large Object Heap), and POH (Pinned Object Heap).

• GC Pauses
  The percentage of time the process spent paused for garbage collection, and the duration of the most recent pause, per node.

Server workload

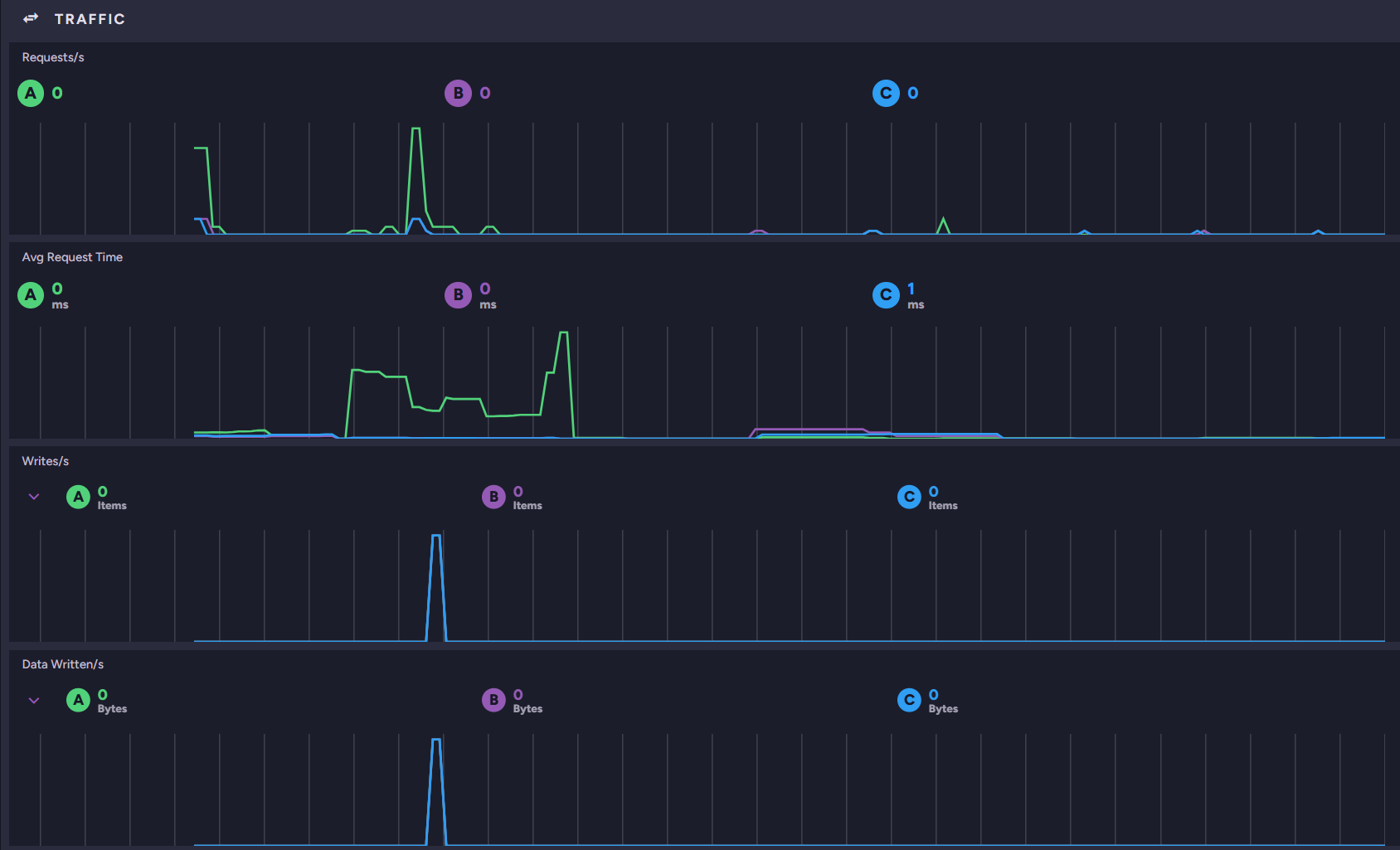

Traffic

The Traffic widget shows request and write activity on each node.

• Requests/s
  The number of requests made to each node per second.

• Avg Request Time
  The average time each node takes to handle a request, in milliseconds.

• Writes/s
  The number of items written on each node per second.

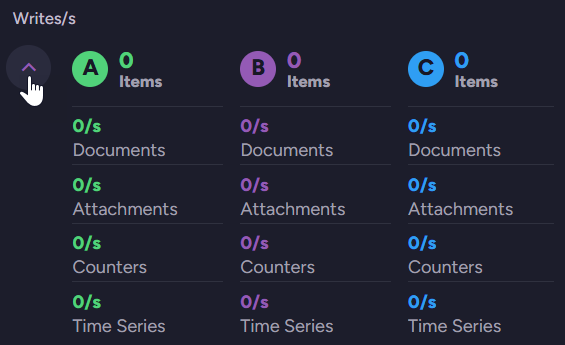

  Expand Writes/s to see the write rate for documents, attachments, counters, and time series on each node:



• Data Written/s
  The amount of data written on each node per second.

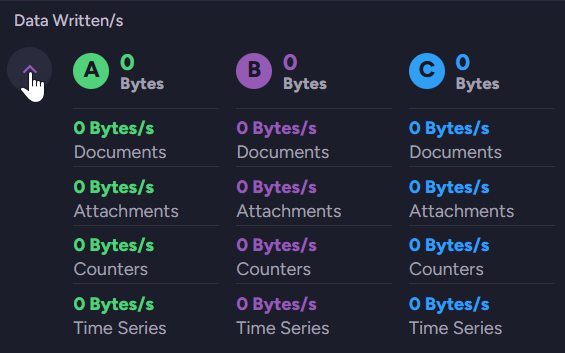

  Expand Data Written/s to see the data written for documents, attachments, counters, and time series on each node:



Hovering over the timeline shows earlier values.

Indexing

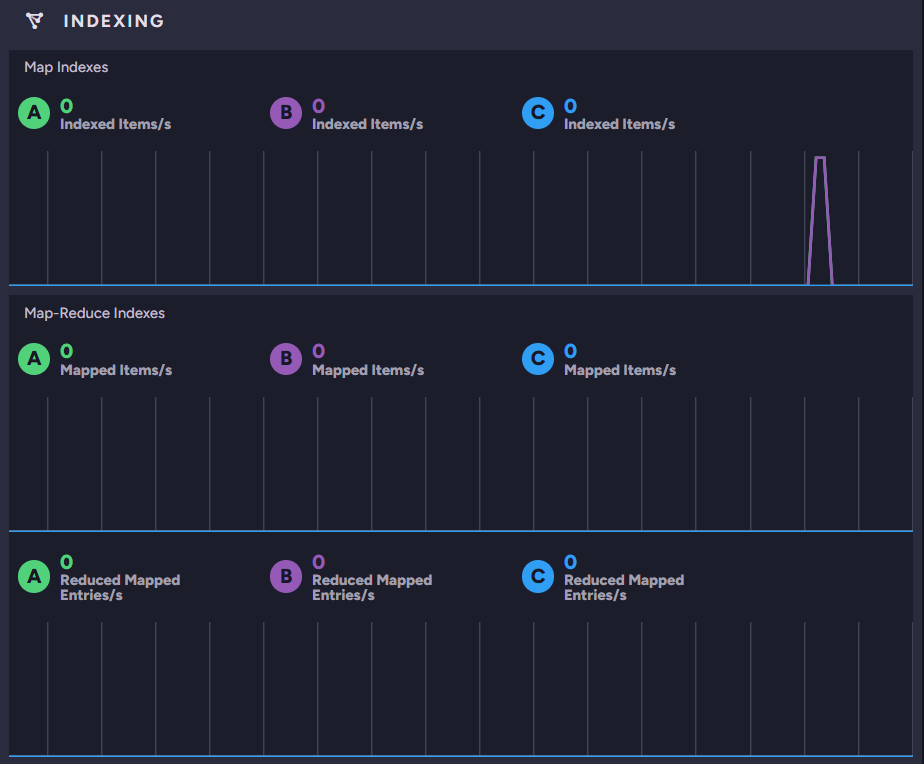

The Indexing widget shows indexing throughput on each node.

• Map Indexes
  The number of items indexed per second on each node.

• Map-Reduce Indexes
  The number of items mapped per second, and the number of reduced mapped entries per second, on each node.

Hovering over the timeline shows earlier values.

Databases and tasks

Database Overview

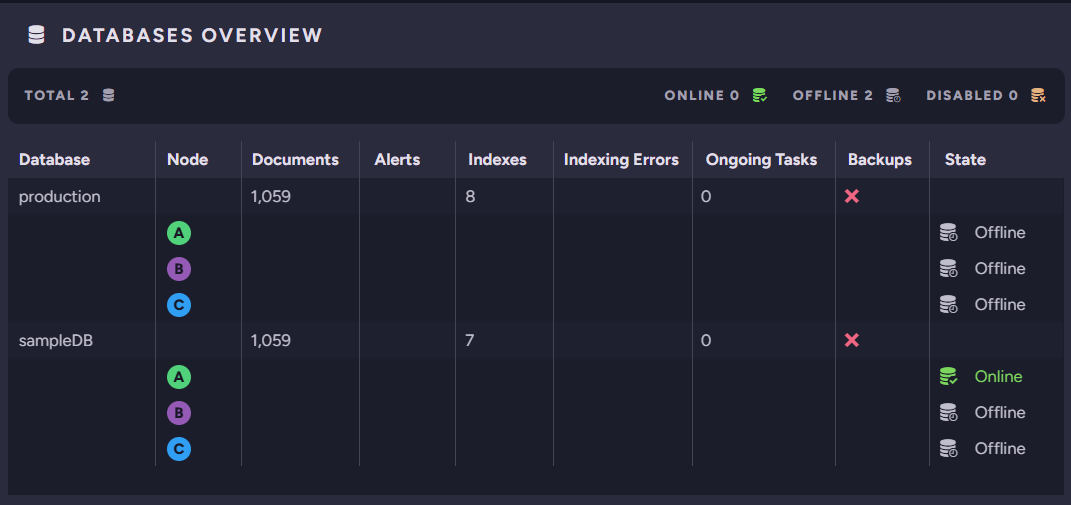

The Database Overview widget lists the databases in the cluster and shows the state of each one on every node. The header shows the total number of databases and how many are online, offline, and disabled.

Column	Description
Database	The database name.
Node	The cluster node the row reports on.
Documents	The number of documents in the database.
Alerts	The number of alerts raised for the database.
Indexes	The number of indexes defined in the database.
Indexing Errors	The number of indexing errors in the database.
Ongoing Tasks	The number of ongoing tasks defined for the database.
Backups	The database's backup state.
State	The database's state on the node, such as Online.

Click a node under a database to open the database's Documents view on the selected node.

Databases Notifications

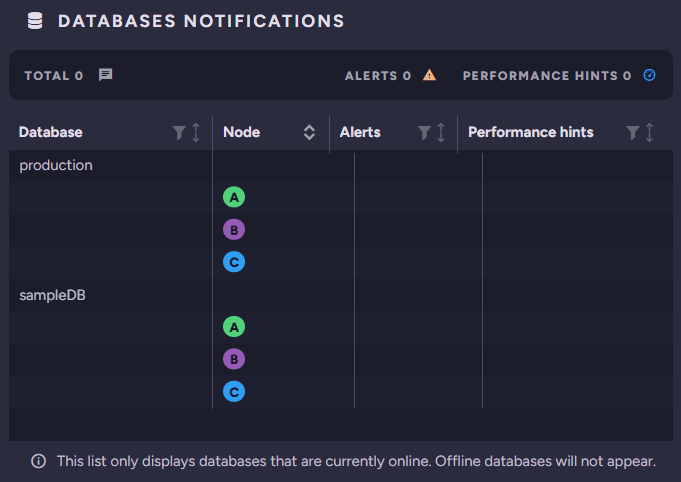

The Databases Notifications widget lists the alerts and performance hints raised for each database, per node. The header shows the totals across the cluster. Only databases that are currently online appear.

Column	Description
Database	The database the row reports on.
Node	The cluster node the row reports on.
Alerts	The alerts raised for the database on the node.
Performance hints	The performance hints raised for the database on the node.

Click the tag of the node currently running the cluster dashboard to open its notifications. Click a different node's tag to open the selected node's cluster dashboard in a new browser tab.

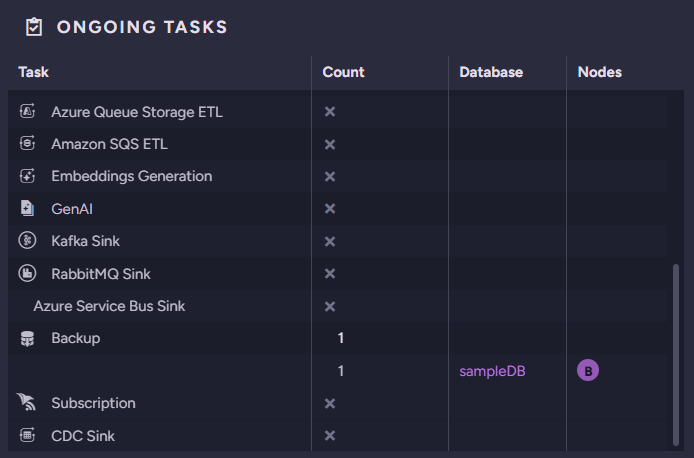

Ongoing Tasks

The Ongoing Tasks widget lists the ongoing tasks defined across the cluster, by type.

Column	Description
Task	The ongoing task type, such as an ETL, sink, backup, or subscription task.
Count	The number of tasks of this type.
Database	The database the task belongs to.
Nodes	The node or nodes responsible for the task.

Traffic per Database

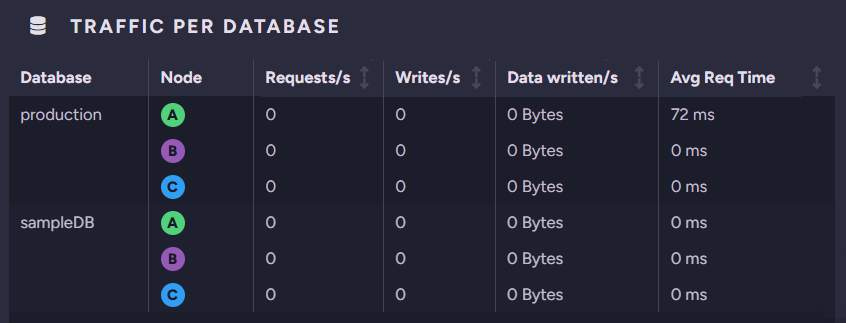

The Traffic per Database widget breaks request and write activity down by database and node.

Column	Description
Database	The database the row reports on.
Node	The cluster node the row reports on.
Requests/s	The number of requests handled per second.
Writes/s	The number of items written per second.
Data written	The amount of data written per second.
Avg Req Time	The average request time, in milliseconds.

Click a node's tag to open the selected node's Traffic Watch view, where you can see the requests made to the node.

Indexing per Database

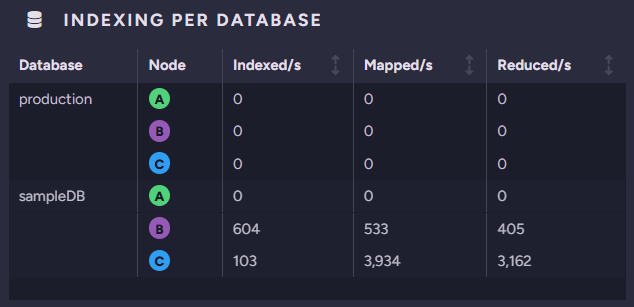

The Indexing per Database widget breaks indexing throughput down by database and node.

Column	Description
Database	The database the row reports on.
Node	The cluster node the row reports on.
Indexed/s	The number of items indexed per second.
Mapped/s	The number of items mapped per second.
Reduced/s	The number of reduced mapped entries per second.

Click a node's tag to open the Indexing Performance view for the selected node.

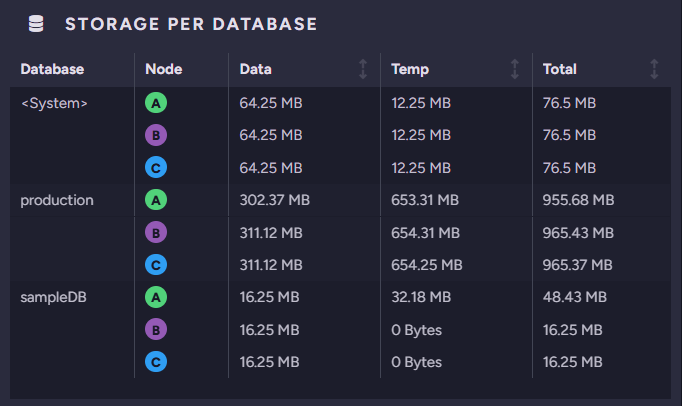

Storage per Database

The Storage per Database widget breaks disk usage down by database and node.

Column	Description
Database	The database the row reports on.
Node	The cluster node the row reports on.
Data	The disk space used by the database's data.
Temp	The disk space used by the database's temporary files.
Total	The total disk space used by the database.

The list includes a <System> row, which reports the storage used by the server's own system data (server-wide and cluster-level data), not a user database.

Click a node's tag to open the selected node's Storage Report view.
