PostgreSQL Protocol: Power BI

Connect to RavenDB​

To connect Power BI Desktop to a RavenDB database:

1. Get data:​

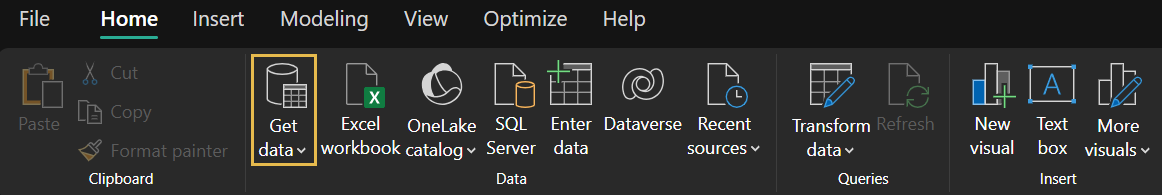

"Get Data"

  • Click Get data on Power BI Desktop's Home ribbon.

2. Select the PostgreSQL database connector:​

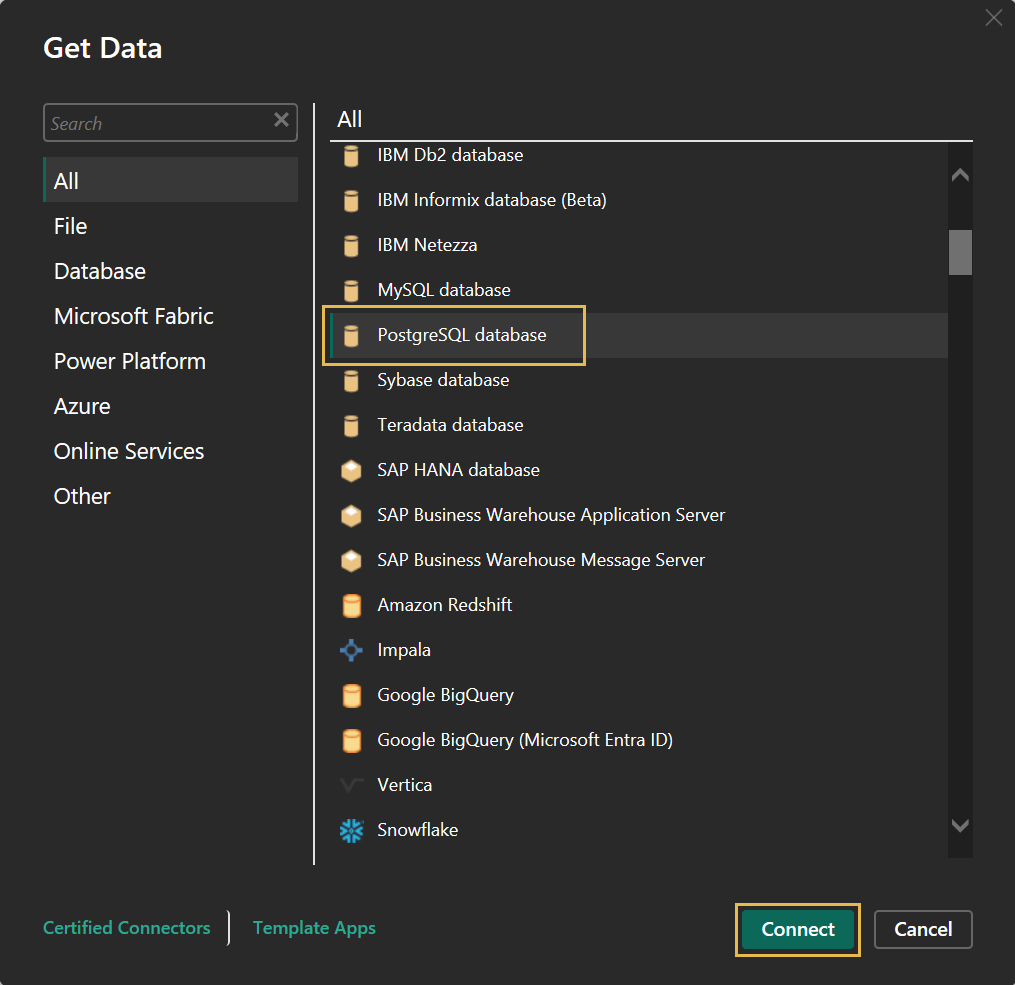

"Select PostgreSQL database"

  • Select the PostgreSQL database connector and click Connect.

3. Enter connection details:​

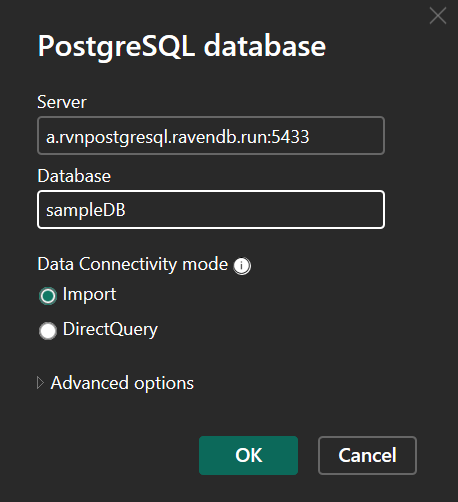

"Connection Details"

  • Server
    Enter the RavenDB server's URL and PostgreSQL port number in the form: Hostname:Port
    e.g., a.rvnpostgresql.ravendb.run:5433
    • Do not include the https:// prefix.
    • The default PostgreSQL port is 5433, and the port is configurable.
  • Database
    Enter the name of the RavenDB database to retrieve data from.
  • Data Connectivity mode
    Select Import or DirectQuery:
    • Import
      Power BI copies the data you load into its own in-memory model.
      The report works on this copy and responds quickly, but shows changes made in RavenDB only after you refresh the data.
      Select Import when you're reporting on a stable snapshot of the data, e.g., a monthly sales summary.
    • DirectQuery
      Power BI keeps no local copy, and queries RavenDB each time the report needs data.
      Select DirectQuery when you're reporting on live data, e.g., for a dashboard that tracks orders as they arrive, or when the dataset is too large to load into memory.
  • Click OK to connect to the database.

4. Provide credentials:​

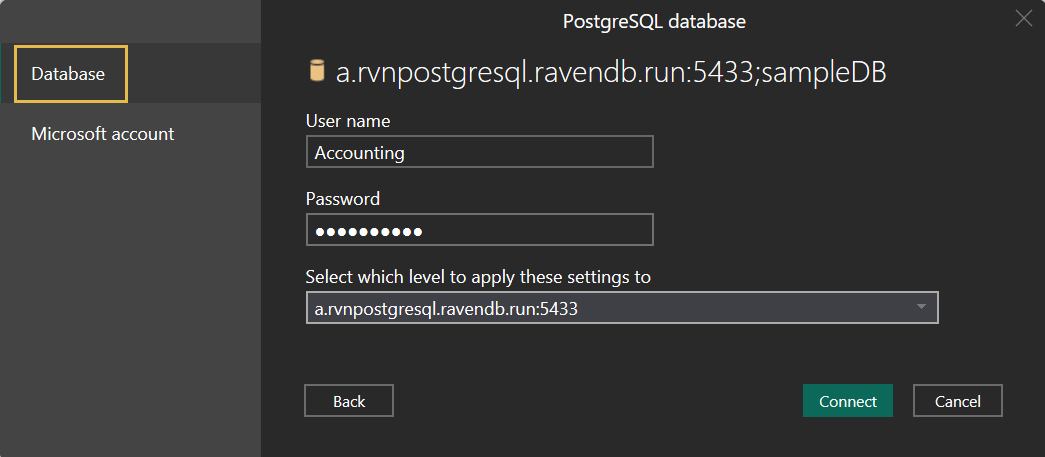

"Credentials"

  • On your first connection to a server, Power BI opens a credentials dialog.

  • In the Database tab, provide the credentials that RavenDB requires to authenticate your Power BI client, and click Connect.
    Power BI stores the credentials, so subsequent connections to this server skip this step.
    Note that credentials are checked only when RavenDB runs as a secure server.

    To change or remove the stored credentials, go to File > Options and settings > Data source settings and select the server.

    • Click Edit Permissions to enter different credentials.
    • Click Clear Permissions to remove the stored credentials.
      The next connection to the server will open the credentials dialog again.

Load collection data​

After you connect Power BI to a database, the Navigator window opens:

1. Select collections:​

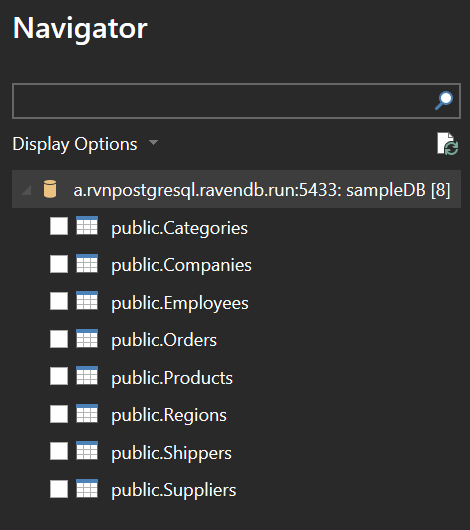

"Collections"

  • The Navigator lists the database's collections as tables.
  • Tick the collections whose data you want to load.

2. Preview and load the data:​

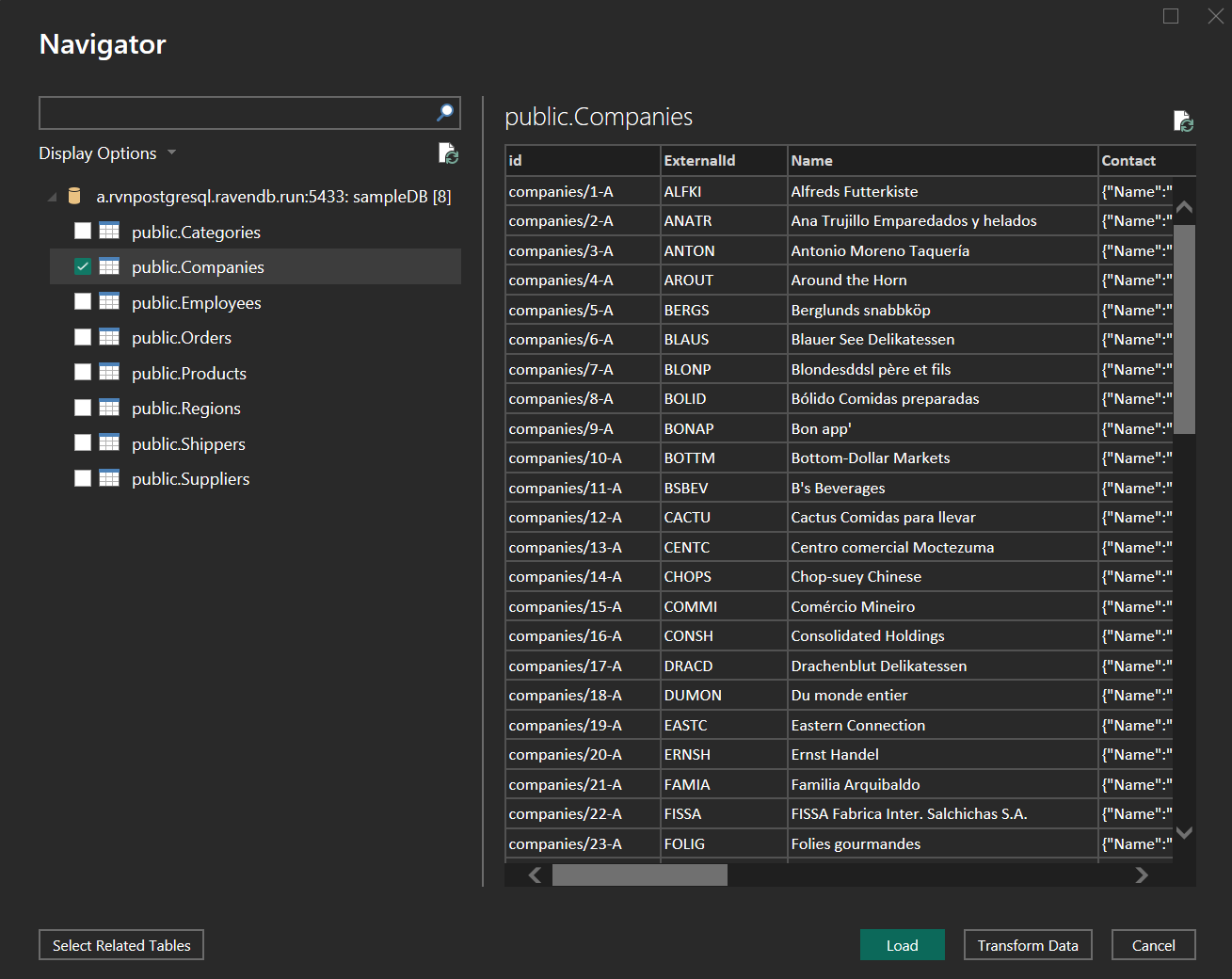

"Retrieved Collection Data"

  • Click a collection's name to preview its documents, one document per row.
  • Click Load to retrieve the ticked collections into your report, or Transform Data to shape the collection data in the Power Query Editor first.

Query with RQL or SQL​

Instead of loading whole collections, you can import just the results of a query.

1. Enter your query:​

To import query results, open a new connection as explained above.
Click Get data > PostgreSQL database > Connect, and fill in the connection details as before: server, database, and connectivity mode.

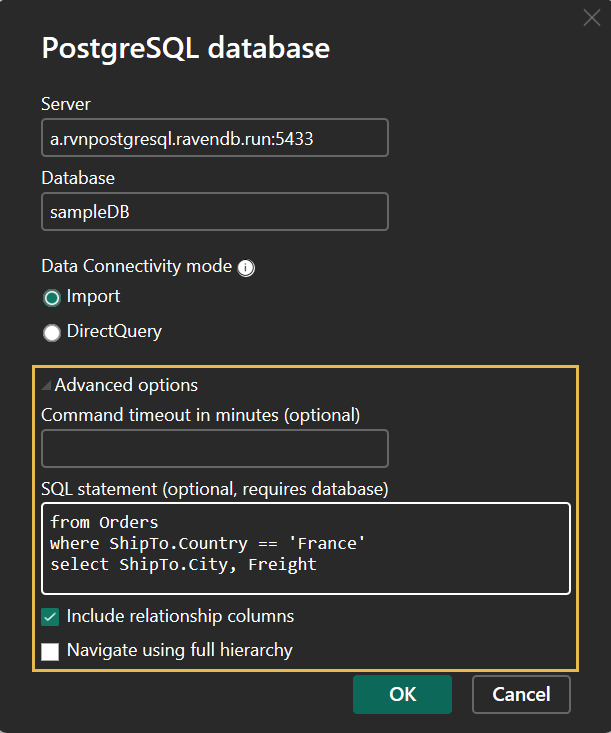

"RQL Query"

  • Expand Advanced options and enter your query, written in RQL or in SQL, in the SQL statement box.
    RavenDB detects the query language automatically.

    The following RQL query runs on the Northwind sample data, retrieving the destination city and freight charge of orders shipped to France.

    from Orders
    where ShipTo.Country == 'France'
    select ShipTo.City, Freight

    Do not end the query with a semicolon.

    Power BI embeds your query in a larger query, where a trailing ; is invalid.
    A query such as from Orders select ShipTo.City; will result in the following error:

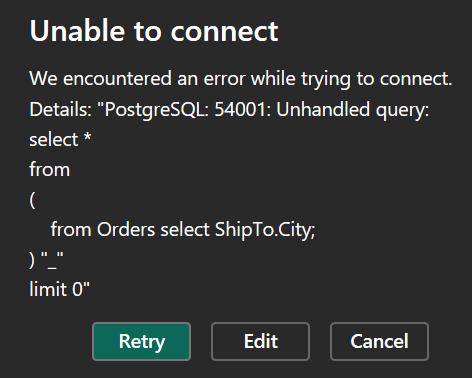

    "Trailing semicolon error"

  • Click OK to run the query and preview its results.

2. Load the query results:​

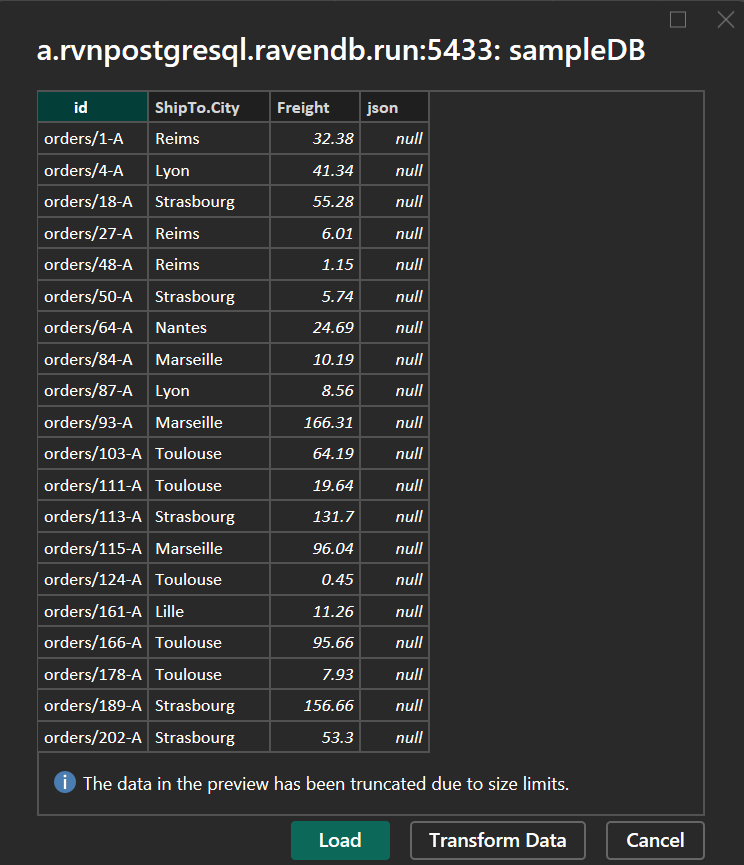

"RQL Query Results"

  • The preview shows only the fields the query selects, plus two columns added by RavenDB:
    id, holding each document's ID, and json, holding document properties that do not fit the regular columns.

    Earlier RavenDB versions exposed these columns as id() and json().
    The server still recognizes these earlier names, so existing reports that reference id() and json() keep working.

  • Click Load to retrieve the results into your report, or Transform Data to shape the results in the Power Query Editor first.

Incremental refresh​

When a table is loaded in Import mode, Power BI can refresh it incrementally: instead of reloading the whole table, each refresh retrieves only the rows whose date field falls within a recent time window, and keeps earlier rows as they are.

  • RavenDB supports Power BI's incremental refresh without requiring any setup on the RavenDB side.
    The date-window queries that Power BI sends are translated to RQL range filters and executed like any other query.
  • To set up incremental refresh, follow Microsoft's incremental refresh documentation.
    The setup runs entirely in Power BI, through these main stages:
