Store Attachments in Local Storage

Overview​

  • To store attachments:

    • First, create or load a document.
    • Then, attach any number of files using the Studio or the Client API.

  • The document’s metadata is updated to reference each attachment that is added.
    This metadata update is considered a document change, which causes the document to be replicated to all other nodes in the database group.
    Any actions associated with the document change, such as indexing or ongoing tasks configured for the document, will be triggered. Learn more in Attachments and other features.

  • When stored locally, attachments are not embedded within the document. Instead, they are saved in a dedicated attachment storage area on the RavenDB server, separate from the document store.
    This avoids bloating your JSON documents with large binary data and enables efficient storage and retrieval.

  • Storing attachments with the same name:
    If you add an attachment with a name that is already associated with the document (case-insensitive),
    the new content will replace the existing content in the local storage.

Store attachments using the Studio​

You can add and manage attachments directly in the Studio.

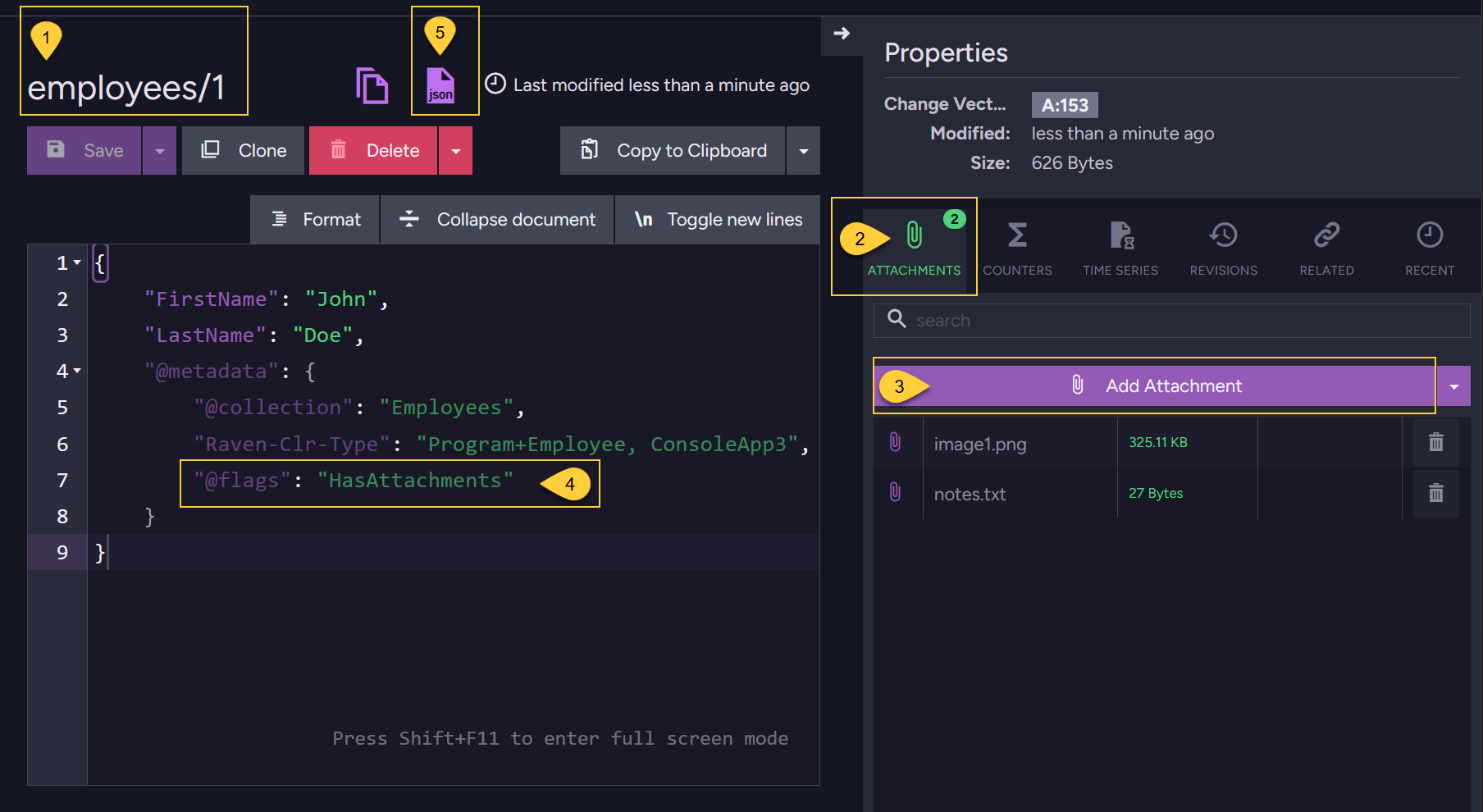

Add attachment to local storage

  1. Open the Document view. The example shows document employees/1.
  2. Open the Attachments tab in the document Properties pane.
  3. Click Add Attachment and select the file to attach.
    The file will appear in the list and will be automatically associated with the document.
  4. The Studio does not show detailed attachment metadata in the document editor.
    It only shows the @flags property with the value HasAttachments in the document's @metadata section
    to indicate that the document has attachments.
  5. Click this JSON button to view the document's raw content, including its full metadata.
    Learn more about the attachment metadata in The attachment metadata.

Store Attachments using the Client API​

Store attachments via the Session​

  • Use session.Advanced.Attachments.Store to associate an attachment with an existing document,
    The document can be newly stored in the current session or loaded from the database.
    An exception will be thrown if you attempt to add an attachment to a document that does not exist.

  • Transaction support:

    • Like documents, attachments are tracked by the session and are not sent to the server immediately.
      They are persisted only when you call session.SaveChanges(), along with all other changes made in the session, as part of a single unit of work.

    • If you store both the document and its attachment in the same session, they are saved transactionally:
      if saving the document fails, the attachment is not stored, and vice versa.

Example​

using (var session = store.OpenSession())
{
    // Store a new document:
    // =====================
    var employee1 = new Employee
    {
        FirstName = "John",
        LastName = "Doe"
        // ... other properties
    };

    session.Store(employee1, "employees/1");

    // Or load an existing document:
    // =============================
    var employee2 = session.Load<Employee>("employees/2");

    // Store attachments locally for new and existing documents:
    // =========================================================

    // Define paths to your source files
    var attachmentPath1 = @"C:\temp\image1.png";
    var attachmentPath2 = @"C:\temp\notes.txt";

    // Define the names under which the attachments will be stored
    var attachmentName1 = "image1.png";
    var attachmentName2 = "notes.txt";

    using (var stream1 = File.Open(attachmentPath1, FileMode.Open, FileAccess.Read))
    using (var stream2 = File.Open(attachmentPath2, FileMode.Open, FileAccess.Read))
    {
        // Add attachments to the new document (employee1)
        session.Advanced.Attachments.Store(employee1, attachmentName1, stream1, "image/png");
        session.Advanced.Attachments.Store(employee1, attachmentName2, stream2, "text/plain");

        // Upon save changes:
        // Document 'employees/1' will be created with 2 attachments
        session.SaveChanges();
    }

    using (var stream1 = File.Open(attachmentPath1, FileMode.Open, FileAccess.Read))
    using (var stream2 = File.Open(attachmentPath2, FileMode.Open, FileAccess.Read))
    {
        // Add attachments to the existing document (employee2)
        session.Advanced.Attachments.Store(employee2, attachmentName1, stream1, "image/png");
        session.Advanced.Attachments.Store(employee2, attachmentName2, stream2, "text/plain");

        // Upon save changes:
        // 2 attachments will be added to the already existing document 'employees/2'
        session.SaveChanges();
    }
}

Store attachments via an Operation​

  • Use the PutAttachmentOperation operation to store an attachment outside the context of a session.

  • This is ideal when you need to add an attachment as an independent action and not as part of the transactional SaveChanges() batch.

  • To store multiple attachments, call the operation separately for each attachment you want to add.

  • An exception will be thrown if you attempt to add an attachment to a document that does not exist.

Example​

// The path to your source file
var attachmentPath = @"C:\temp\image1.png";

// Open the file stream
using (var stream = File.Open(attachmentPath, FileMode.Open, FileAccess.Read))
{
    var documentId = "employees/1";
    var attachmentName = "image1.png";
    var contentType = "image/png";

    // Define the put attachment operation
    var operation = new PutAttachmentOperation(documentId, attachmentName, stream, contentType);

    // Execute the operation by passing it to 'Operations.Send'
    var result = store.Operations.Send(operation);
}

The attachment metadata​

  • When an attachment is added to a document, RavenDB updates the document’s @metadata to include information about the attachment within a dedicated @attachments section.

  • For example, the metadata of document employees/1 from the session's example above contains the following:

"@metadata": {
  "@attachments": [
    {
      "Name": "image1.png",
      "Hash": "6MsVgv2an8udIvA1GeRYg/kjvS47EZjb3xKCkwCPBqw=",
      "ContentType": "image/png",
      "Size": 332916
    },
    {
      "Name": "notes.txt",
      "Hash": "EjTWwES/SOdzvXkVlT3VIOsIwaiz0jsqOk+VuO/Sbq0=",
      "ContentType": "text/plain",
      "Size": 27
    }
  ],
  "@collection": "Employees",
  "@change-vector": "A:42-5nIqMb8v3kGQLYhhU90jWg",
  "@flags": "HasAttachments",
  "@id": "employees/1",
  "@last-modified": "2025-11-23T13:48:15.4922720Z"
}

The properties listed in the @attachments array include the following information:

Name:
The name of the attachment (e.g. photo.png).
Hash:
A Base64-encoded SHA-256 hash of the attachment’s content.
Used to detect and avoid storing the same attachment content more than once in the local storage (deduplication).
ContentType:
The MIME type of the attachment (e.g. image/png, application/pdf).
Size:
The size of the attachment in bytes.

Deduplicating local attachments​

  • RavenDB avoids storing duplicate binary content in its attachment storage by using content-based deduplication.

  • RavenDB computes a SHA-256 hash of the attachment’s binary content.
    This hash is used as the key to the internal attachment storage.

    If multiple attachments (even with different names and across different documents) share the same hash, their binary content is stored only once on disk. Each document still maintains its own metadata reference to the attachment, but the underlying stream is shared.

    A deduplicated stream is removed only when no attachments reference it anymore.

Syntax​

PutAttachmentOperation​

Add an attachment to a document using a store operation.

// Avialable overloads:
// ===================

public PutAttachmentOperation(
    string documentId, string name, Stream stream, string contentType = null,
    RemoteAttachmentParameters remoteParameters = null, string changeVector = null)

public PutAttachmentOperation(string documentId, StoreAttachmentParameters parameters)
Return valueDescription
AttachmentDetailsAn object with the new attachment's details

Session.Advanced.Attachments.Store​

Add an attachment to a document using a session.

// Avialable overloads:
// ====================

void Store(string documentId, StoreAttachmentParameters parameters);
void Store(string documentId, string name, Stream stream, string contentType = null);
void Store(object entity, string name, Stream stream, string contentType = null);
ParameterTypeDescription
documentIdstringThe ID of the document to which the attachment will be added.
entityobjectThe tracked entity instance to which the attachment will be associated.
namestringThe name under which the attachment will be stored on the server.
streamStreamThe stream containing the binary content of the attachment.
contentTypestringThe MIME type of the attachment (optional).
Common examples include:
image/png, application/pdf, text/plain, video/mp4.
parametersStoreAttachmentParametersAn object that encapsulates all parameters required to store an attachment.
remoteParametersRemoteAttachmentParametersParameters for uploading the attachment to Remote storage.
Set to null or omit to store the attachment locally.
changeVectorstringThe document's change vector used for concurrency control.
If set to null, no concurrency check will be performed and the attachment will be added regardless of the document's current state.
public class StoreAttachmentParameters
{
    public string Name { get; set; }   // The name of the attachment to store.
    public Stream Stream { get; set; } // The stream containing the attachment data.
    public string ChangeVector { get; set; }
    public string ContentType { get; set; }

    // Set to null or omit to store the attachment *locally*
    public RemoteAttachmentParameters RemoteParameters { get; set; }
}
public class RemoteAttachmentParameters
{
    // The scheduled date and time when the attachment should be uploaded to the remote destination.
    // Preferably in UTC.
    public DateTime At { get; set; }

    // The identifier of the remote storage destination to which the attachment should be uploaded.
    public string Identifier { get; set; }
}

AttachmentDetails​

public class AttachmentDetails : AttachmentName
{
    public string ChangeVector;
    public string DocumentId;
}

public class AttachmentName
{
    public string Name;
    public string Hash;
    public string ContentType;
    public long Size;
}
