Get Attachments

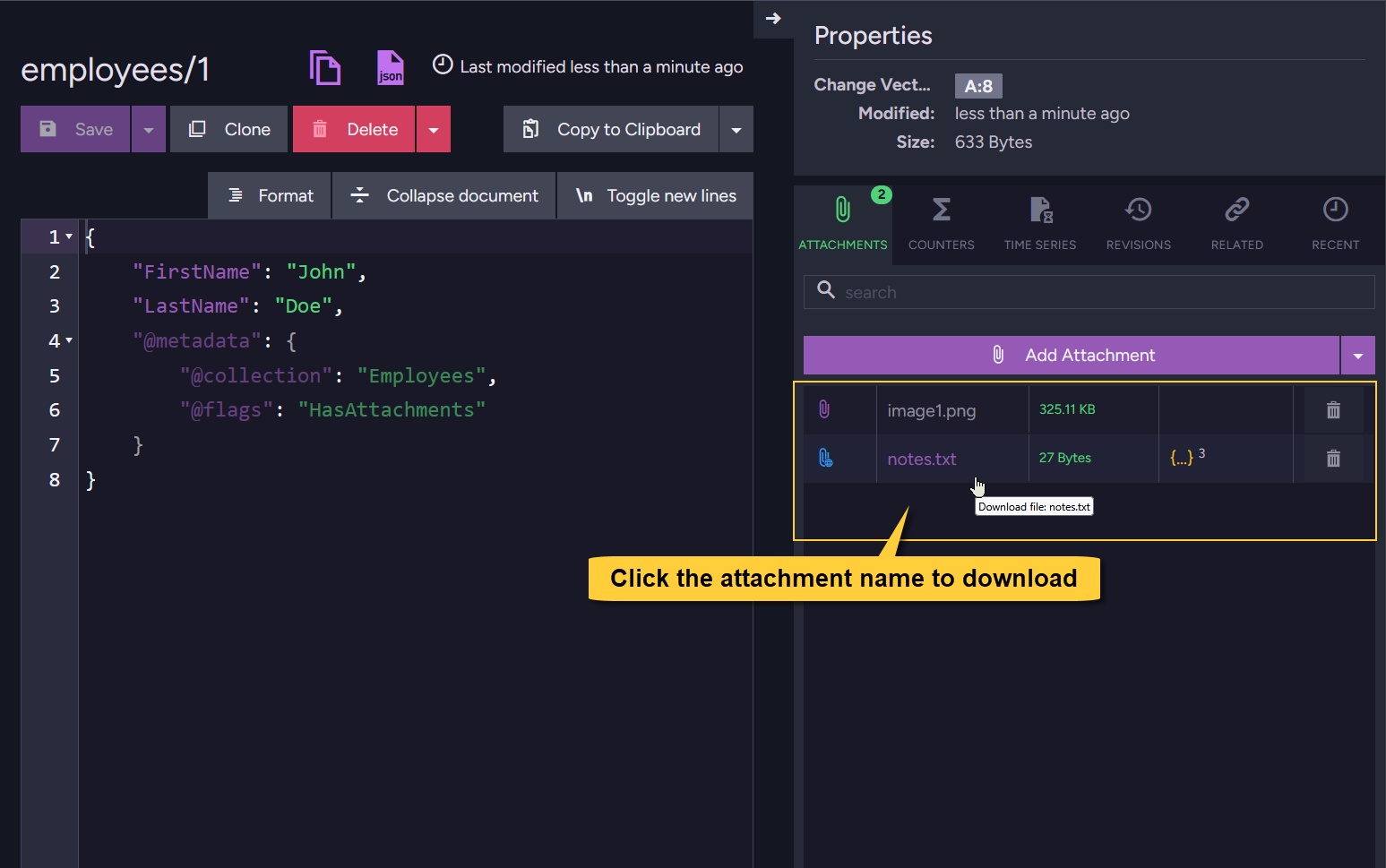

Get attachments using the Studio​

In the Studio, open the document view. To download an attachment, simply click its name.
The file, whether stored locally or in remote storage, will be downloaded to your browser’s default download location.

Download attachments

Get attachments using the Client API​

Get attachment details (excluding content)​

  • Use the session's GetNames() method to retrieve the attachment names and related details for a given document, excluding the attachment content. Returned entries include both local and remote attachments.

  • To get the attachment content stream as well, see the other sections below, e.g. Get single attachment.

using (var session = store.OpenSession())
{
    // Load the document entity
    Employee employee = session.Load<Employee>("employees/1");

    // Call 'GetNames', pass the document entity
    AttachmentName[] attachmentNames = session.Advanced.Attachments.GetNames(employee);

    // Iterate over results
    foreach (AttachmentName attachmentName in attachmentNames)
    {
        // The attachment name:
        string name = attachmentName.Name;

        // Access details:
        string contentType = attachmentName.ContentType;
        string hash = attachmentName.Hash;
        long size = attachmentName.Size;
        var remoteParams = attachmentName.RemoteParameters;

        // If the attachment is stored locally, RemoteParameters will be null
        if (remoteParams != null)
        {
            // Remote attachment info:
            string identifier = remoteParams.Identifier;
            DateTime at = remoteParams.At;
        }
    }
}

Get single attachment from document​

Get attachment - using the session​

  • Use the session's Get() method to retrieve a single attachment by name, along with its content stream and related details. You can pass either the document entity or the document ID.

  • The method seamlessly retrieves attachments from both local and remote storage.

using (var session = store.OpenSession())
{
    // Option 1: Load the document entity
    Employee employee = session.Load<Employee>("employees/1");
    // Call 'Get', pass the document entity and the name of the attachment to retrieve
    AttachmentResult attachment = session.Advanced.Attachments.Get(employee, "notes.txt");

    // Option 2: Call 'Get' and pass the document ID directly
    // AttachmentResult attachment =
    //     session.Advanced.Attachments.Get("employees/1", "notes.txt");

    if (attachment != null)
    {
        // Access the content stream:
        var stream = attachment.Stream;

        // Optionally, decode the stream to a string (for text-based attachments)
        using (var ms = new MemoryStream())
        {
            await stream.CopyToAsync(ms);
            string decodedContent = Encoding.UTF8.GetString(ms.ToArray());
        }

        // Access attachment details:
        var details = attachment.Details;

        string name = details.Name;
        string hash = details.Hash;
        long size = details.Size;
        string contentType = details.ContentType;
        string documentId = details.DocumentId;
        string changeVector = details.ChangeVector;
        var remoteParams = details.RemoteParameters;

         // If the attachment is stored locally, remoteParams will be null
        if (remoteParams != null)
        {
            // Remote attachment info:
            string identifier = remoteParams.Identifier;
            DateTime at = remoteParams.At;
        }
    }
}

Get attachment - using an operation​

  • Use GetAttachmentOperation to retrieve a single attachment outside of the session context.
    The result includes both the content stream and related attachment details.

  • The operation seamlessly retrieves attachments from both local and remote storage.

// Define the get attachment operation
// Specify the document ID and the attachment name.
// Use 'AttachmentType.Document' to indicate that the attachment is from the document itself
// (not from a revision).
var getAttachmentOp = new GetAttachmentOperation("employees/1", "notes.txt", AttachmentType.Document, null);

// Execute the operation by passing it to 'Operations.Send'
AttachmentResult attachment = store.Operations.Send(getAttachmentOp);

if (attachment != null)
{
    // The result includes both the content stream and attachment details
    var stream = attachment.Stream;
    var details = attachment.Details;
}

Get single attachment from revision​

Get attachment from a revision - using the session​

  • Use the session’s GetRevision() method to retrieve a single attachment from a specific document revision.
    The result includes both the content stream and related attachment details.

  • The method seamlessly retrieves attachments from both local and remote storage.

using (var session = store.OpenSession())
{
    // Call 'GetRevision'
    // Pass the document ID, the attachment name and the revision change vector
    AttachmentResult attachment = session.Advanced.Attachments.GetRevision(
        "employees/1", "notes.txt", changeVector: "A:8-T9HdPKqrYUism8P0z7GA1A");

    if (attachment != null)
    {
        // Access the content stream:
        var stream = attachment.Stream;

        // Access attachment details:
        var details = attachment.Details;
    }
}

Get attachment from a revision - using an operation​

  • Use GetAttachmentOperation to retrieve a single attachment from a document revision outside of the session context. The result includes both the content stream and related attachment details.

  • The operation seamlessly retrieves attachments from both local and remote storage.

// Define the get attachment operation
// Specify the document ID and the attachment name.
// Use 'AttachmentType.Revision' to indicate that the attachment is from a revision
// and provide the revision change vector.
var getAttachmentOp = new GetAttachmentOperation("employees/1", "notes.txt",
    AttachmentType.Revision, changeVector: "A:8-T9HdPKqrYUism8P0z7GA1A");

// Execute the operation by passing it to 'Operations.Send'
AttachmentResult attachment = store.Operations.Send(getAttachmentOp);

if (attachment != null)
{
    var stream = attachment.Stream;
    var details = attachment.Details;
}

Get multiple attachments​

  • To retrieve multiple attachments in one call, first get the attachment names,
    then build a list of AttachmentRequest objects and pass them to the session’s Get() method.

  • The method returns attachments from both local and remote storage.

using (var session = store.OpenSession())
{
    // Load the document
    var emp = session.Load<Employee>("employees/1");

    // Get the list of attachment names for the document
    var attNames = session.Advanced.Attachments.GetNames(emp);

    // Build a list of 'AttachmentRequest' objects (document ID + attachment name)
    IEnumerable<AttachmentRequest> attList = attNames.Select(x =>
        new AttachmentRequest("employees/1", x.Name));

    // Retrieve multiple attachments in a single call
    IEnumerator<AttachmentEnumeratorResult> att = session.Advanced.Attachments.Get(attList);

    // Iterate through the results to access both content and details
    while (att.MoveNext())
    {
      AttachmentEnumeratorResult res = att.Current;

      // Attachment metadata (name, content type, size, hash, etc.)
      AttachmentDetails attachmentDetails = res.Details;

      // Attachment content stream
      Stream attachmentStream = res.Stream;
    }
}

Get partial content​

  • Use GetRange() to retrieve a specific byte range of an attachment stream.

  • Getting a partial stream is supported for local attachments only.
    It is NOT supported for remote attachments.

  • An InvalidAttachmentRangeException will be thrown if the requested range is invalid for the file.

Get partial content - using the session​

using (var session = store.OpenSession())
{
    // Option 1: Load the document entity
    Employee employee = session.Load<Employee>("employees/1");

    // Retrieve a part of the attachment (e.g. bytes 100-200)
    AttachmentResult attachmentPartial = session.Advanced.Attachments.GetRange(
        entity: employee, name: "notes.txt",  from: 100, to: 200);

    // Option 2: Call 'GetRange', pass the document ID (instead of the entity)
    // AttachmentResult attachment =
    //     AttachmentResult attachmentPartial = session.Advanced.Attachments.GetRange(
    //         documentId: "employees/1", name: "notes.txt",  from: 100, to: 200);

    if (attachmentPartial != null)
    {
        // Access the content stream:
        // Only the requested byte range is available in the stream
        var stream = attachmentPartial.Stream;

        // Access attachment details:
        var details = attachmentPartial.Details;
    }
}

Get partial content - using an operation​

// Define the get attachment operation
// Specify 'from' and 'to' to retrieve a part of the attachment (e.g. bytes 100-200)
var getAttachmentOp = new GetAttachmentOperation(documentId: "employees/1",
    name: "notes - Copy.txt", type: AttachmentType.Document, changeVector: null,
    from: 100, to: 200);

// Execute the operation by passing it to 'Operations.Send'
AttachmentResult attachment = store.Operations.Send(getAttachmentOp);

if (attachment != null)
{
    // Only the requested byte range is available in the stream
    var stream = attachment.Stream;
    var details = attachment.Details;
}

Check if an attachment exists​

  • Use the session’s Exists() method to check whether a specific attachment is listed in a document’s metadata.
    This works for both local and remote attachments.

  • The method checks only the document’s metadata.
    It does Not verify whether the binary content actually exists in local or remote storage.

using (var session = store.OpenSession())
{
    // Check if the document metadata references an attachment named "notes.txt"
    // Call method 'Exists', pass the document ID
    bool exists = session.Advanced.Attachments.Exists("employees/1", "notes.txt");
}

Syntax​

Get attachment via operation​

public GetAttachmentOperation(string documentId,
    string name, AttachmentType type, string changeVector, long? from, long? to)
ParameterTypeDescription
documentIdstringThe ID of the document from which to retrieve the attachment.
namestringThe name of the attachment to retrieve.
typeAttachmentTypeSpecify whether the attachment is from the current document or a document revision.
changeVectorstringThe change vector of the revision to retrieve the attachment from. Use null when retrieving from the current document.
fromlong(Optional) The starting byte position (inclusive) for partial content retrieval.
tolong(Optional) The ending byte position (inclusive) for partial content retrieval.
Return valueDescription
AttachmentResultThe retrieved attachment

Get attachment via session​

// Avialable overloads:
// ====================

bool Exists(string documentId, string name);
Task<bool> ExistsAsync(string documentId, string name, CancellationToken token = default);

AttachmentResult Get(object entity, string name);
Task<AttachmentResult> GetAsync(object entity, string name, CancellationToken token = default);

AttachmentResult Get(string documentId, string name);
Task<AttachmentResult> GetAsync(string documentId, string name, CancellationToken token = default);

AttachmentResult GetRange(object entity, string name, long? from, long? to);
Task<AttachmentResult> GetRangeAsync(object entity, string name, long? from, long? to,
    CancellationToken token = default);

AttachmentResult GetRange(string documentId, string name, long? from, long? to);
Task<AttachmentResult> GetRangeAsync(string documentId, string name, long? from, long? to,
    CancellationToken token = default);

AttachmentResult GetRevision(string documentId, string name, string changeVector);
Task<AttachmentResult> GetRevisionAsync(string documentId, string name, string changeVector,
    CancellationToken token = default);

IEnumerator<AttachmentEnumeratorResult> Get(IEnumerable<AttachmentRequest> attachments);
Task<IEnumerator<AttachmentEnumeratorResult>> GetAsync(IEnumerable<AttachmentRequest> attachments,
    CancellationToken token = default);
ParameterTypeDescription
documentIdstringThe ID of the document from which to retrieve the attachment.
entitystringThe loaded document entity from which to retrieve the attachment.
namestringThe name of the attachment to retrieve (case-insensitive).
changeVectorstringThe change vector of the revision to retrieve the attachment from.
fromlong(Optional) The starting byte position (inclusive) for partial content retrieval.
tolong(Optional) The ending byte position (inclusive) for partial content retrieval.
attachmentsIEnumerable<AttachmentRequest>A list of attachment requests to retrieve multiple attachments in a single call.
Return valueDescription
AttachmentResultAn object with the retrieved attachment's details

AttachmentResult​

public class AttachmentResult
{
    public Stream Stream;
    public AttachmentDetails Details;
}

public class AttachmentDetails : AttachmentName
{
    public string ChangeVector;
    public string DocumentId;
}

public class AttachmentName
{
    public string Name;
    public string Hash;
    public string ContentType;
    public long Size;
}
