Restore from backup

Restoring from backup using the client API​

Restoring a database from backup​

To restore a database from backup:

  • Populate a restore configuration class instance with the restore settings.
    The configuration class you choose depends on your backup location,
    e.g., RestoreBackupConfiguration to restore from a local path, or RestoreFromAzureConfiguration to restore from an Azure Blob Storage.
  • Pass the configuration instance to RestoreBackupOperation to run the restore operation.

Example:

string backupLocation = @"D:\RavenDB\Backups";
string databaseName = "RestoredDatabase";

// Destination database encryption (encrypt restored DB)
string destinationDatabaseEncryptionKeyBase64 = "PUT_DESTINATION_DB_KEY_BASE64_HERE";

var restoreConfig = new RestoreBackupConfiguration
{
    DatabaseName = databaseName,
    BackupLocation = backupLocation,

    // Disable ongoing tasks so they won't run after restoring
    DisableOngoingTasks = true,

    // Restore index data
    SkipIndexes = false,

    // Provide key to encrypt the restored database
    EncryptionKey = destinationDatabaseEncryptionKeyBase64
};

// Start restore operation
var operation = await store.Maintenance.Server.SendAsync(new RestoreBackupOperation(restoreConfig));

// Wait for the restore operation to complete (or fail)
await operation.WaitForCompletionAsync(TimeSpan.FromMinutes(30));

Note that WaitForCompletionAsync tracks the operation on the client side only.
The restore operation will continue running on the server until it completes or fails, regardless of the client.

Key configuration settings​

LastFileNameToRestore - Setting restore points:​

A backup folder contains a single full backup and any incremental backups created after it.
For example:

  • Products database backups folder:
    2026-03-10-17-38-00.ravendb-Products-A-backup
  • Folder content:
    2026-03-10-17-38-00.ravendb-encrypted-full-backup
    2026-03-10-18-38-00.ravendb-encrypted-incremental-backup
    2026-03-10-19-38-22.ravendb-encrypted-incremental-backup
    2026-03-10-20-38-00.ravendb-encrypted-incremental-backup
    2026-03-10-21-38-31.ravendb-encrypted-incremental-backup

While restoring the database, the incremental backups can function as restore points, allowing you to restore the database up to a specific point in time.

  • To restore up to a specific point in time, set the restore configuration LastFileNameToRestore property with the name of the last backup file to restore.
  • To restore all backup files, leave LastFileNameToRestore unset.

Example:
Restore the database up to (including) the 19:38 incremental backup.
The 20:38 and 21:38 backups will be skipped.

var restoreConfig = new RestoreBackupConfiguration
{
    DatabaseName = "Products_Restored",
    BackupLocation = @"D:\RavenDB\Backups\2026-03-10-17-38-00.ravendb-Products-A-backup",

    // Restore the full backup + incrementals up to (and including) this file, then stop.
    LastFileNameToRestore = "2026-03-10-19-38-22.ravendb-encrypted-incremental-backup",

    DisableOngoingTasks = true
};

await store.Maintenance.Server
    .SendAsync(new RestoreBackupOperation(restoreConfig));

EncryptionKey & BackupEncryptionSettings - Encryption settings:​

  • EncryptionKey
    Use this property to encrypt the new database.

    • If null, the restored database will be unencrypted.
    • If set, the restored database will be encrypted using the provided key.

    Note that EncryptionKey will be used only if the database is restored from a logical backup.
    If the database is restored from a snapshot, its encryption is inherited from the snapshot:

    • If the snapshot is not encrypted, the restored database will not be encrypted either.
    • If the snapshot is encrypted, the database will be encrypted as well, using the same key as the snapshot.

  • BackupEncryptionSettings
    Use this property to decrypt an encrypted backup.
    See details in the syntax section.

Example:

var restoreConfig = new RestoreBackupConfiguration
{
    // Provide user key to decrypt backup files
    BackupEncryptionSettings = new BackupEncryptionSettings
    {
        EncryptionMode = EncryptionMode.UseProvidedKey,
        Key = backupEncryptionKeyBase64
    },

    // Provide key to encrypt the restored database
    EncryptionKey = destinationDatabaseEncryptionKeyBase64
};

RestoreBackupConfiguration - Backup location settings:​

Choose where to restore the backup from by using a restore configuration that matches your backup location:

  • RestoreBackupConfiguration - To restore from a local path on the server machine.
  • RestoreFromS3Configuration - To restore from S3.
  • RestoreFromAzureConfiguration - To restore from Azure Blob Storage.
  • RestoreFromGoogleCloudConfiguration - To restore from Google Cloud Storage.

See details in the syntax section.

Example: Restore from S3

var restoreConfigS3 = new RestoreFromS3Configuration
{
    DatabaseName = "RestoredDatabase",
    Settings = new S3Settings
    {
        // S3 bucket
        BucketName = "my-backups-bucket",

        // Folder/prefix containing the backup
        RemoteFolderName = "backups/Products/2026-03-10-17-38-00.ravendb-Products-A-backup",

        // AWS region
        AwsRegionName = "us-east-1",

        // Credentials
        AwsAccessKey = "...",
        AwsSecretKey = "..."
    },
};

// Start restore operation
var operation = await store.Maintenance.Server.SendAsync(new RestoreBackupOperation(restoreConfigS3));

Example: Restore from Azure

var restoreConfigAzure = new RestoreFromAzureConfiguration
{
    DatabaseName = "RestoredDatabase",
    Settings = new AzureSettings
    {
        // Azure Blob container name
        StorageContainer = "my-backups-container",

        // Folder/path (blob prefix) within the container
        RemoteFolderName = "backups/Products/2026-03-10-17-38-00.ravendb-Products-A-backup",

        // Storage account name
        AccountName = "myaccount",

        // Authentication options
        // AccountKey = "...",
        // SasToken = "..."
    },
};

// Start restore operation
var operation = await store.Maintenance.Server.SendAsync(new RestoreBackupOperation(restoreConfigAzure));

Syntax​

RestoreBackupOperation​

RestoreBackupOperation is the client API operation used to restore a database from backup.

  • RestoreBackupOperation overloads:

    public RestoreBackupOperation(RestoreBackupConfigurationBase restoreConfiguration)
    public RestoreBackupOperation(RestoreBackupConfigurationBase restoreConfiguration, string nodeTag)

    ParameterTypeDescription
    restoreConfigurationRestoreBackupConfigurationBaseThe configuration object containing the restore settings.
    nodeTagstring (optional)The restore operation executor node. If not provided, the server will select the executor node.

  • Pass to RestoreBackupOperation:

    • A restore configuration class.

      • RestoreBackupConfiguration - To restore from a local path on the server machine.
      • RestoreFromS3Configuration - To restore from S3.
      • RestoreFromAzureConfiguration - To restore from Azure Blob Storage.
      • RestoreFromGoogleCloudConfiguration - To restore from Google Cloud Storage.

    • Optionally, a node tag.

      • Pass a node tag to select the executor node if, for example, only a specific node has access to the backup path, or you want to control resource usage.

  • Return value: OperationIdResult

    public class OperationIdResult
    {
        // The operation ID
        public long OperationId { get; set; }

        // The operation node tag
        public string OperationNodeTag { get; set; }
    }

    The restore operation may take a while, depending on the backup size and other factors.
    You can use the operation ID returned by the operation to wait for the operation to complete using operation.WaitForCompletionAsync, track its progress using operation.OnProgressChanged, or abort the operation if needed.

Restore configuration classes​

Restore configuration base class

class RestoreBackupConfigurationBase
{
    string DatabaseName
    string LastFileNameToRestore
    string DataDirectory
    string EncryptionKey
    bool DisableOngoingTasks
    bool SkipIndexes
    ShardedRestoreSettings ShardRestoreSettings
    BackupEncryptionSettings BackupEncryptionSettings
    int? MaxReadOpsPerSecond
}

PropertyTypeDescription
DatabaseNamestringName of the database to create and restore data into.
LastFileNameToRestorestringOptional file name marking the last file to be restored.
If null or empty, the server will restore all the backup files it finds.
If set, it must match one of the discovered backup files. The server will restore files up to and including the selected file and then stop.
DataDirectorystringOptional destination directory for the restored database.
If null, RavenDB will choose the database location based on the server configuration.
If set, the database will be restored into this directory.
EncryptionKeystringControls the restored database encryption at rest, when restored from a logical backup.
If null, the database will be unencrypted.
If set, the database will be encrypted using the provided key.
DisableOngoingTasksboolIf true, any ongoing task included in the backup will be disabled when the database is restored.
SkipIndexesboolIf true, index data will not be restored. Indexes may be rebuilt after restore.
ShardRestoreSettingsShardedRestoreSettingsUsed only when restoring a sharded database.
Includes per-shard backup location, last backup file to restore, and node tag.
BackupEncryptionSettingsBackupEncryptionSettingsContains the encryption settings needed to restore an encrypted backup.
MaxReadOpsPerSecondint?Limits the restore read rate (operations per second) to reduce the impact on the server's performance.

Restore from Azure configuration

class RestoreFromAzureConfiguration : RestoreBackupConfigurationBase
{
    AzureSettings Settings
}

PropertyTypeDescription
SettingsAzureSettingsAzure Blob Storage connection and location settings used by the server to locate and download the backup files.

Azure settings

class AzureSettings : BackupSettings, ICloudBackupSettings, IAzureSettings
{
    string StorageContainer
    string RemoteFolderName
    string AccountName
    string AccountKey
    string SasToken
}

PropertyTypeDescription
StorageContainerstringName of the Azure Blob Storage container that stores the backup files.
RemoteFolderNamestringPath/prefix inside the container that identifies the remote “folder” to restore from.
AccountNamestringAzure Storage account name.
AccountKeystringAzure Storage account key.
SasTokenstringSAS token, typically used instead of AccountKey.

Additional restore classes​

Backup encryption settings

class BackupEncryptionSettings
{
    string Key
    EncryptionMode EncryptionMode
}

PropertyTypeDescription
KeystringBase64-encoded encryption key used when EncryptionMode is set to UseProvidedKey.
If EncryptionMode is None or UseDatabaseKey, this should be null or omitted.
EncryptionModeEncryptionModeDetermines if the backup needs to be decrypted, and if so - what encryption key to use.

Encryption mode

EncryptionMode
{
    None,
    UseDatabaseKey,
    UseProvidedKey
}

ValueDescription
NoneThe backup is not encrypted.
UseDatabaseKeyThe backup is encrypted using the database encryption key.
BackupEncryptionSettings.Key must not be provided.
UseProvidedKeyThe backup is encrypted using a user-provided Base64 key.
Provide the key via BackupEncryptionSettings.Key.

Restoring from backup using Studio​

To restore a database from backup using Studio:

  • Run the restore wizard.
  • Direct the wizard to the backup location, and provide all the details related to this location.
    e.g., a local path, or a Google Cloud bucket name and credentials.
  • Set restore options.
    e.g., the restore point to use, the backup encryption key, and whether to restore indexes.

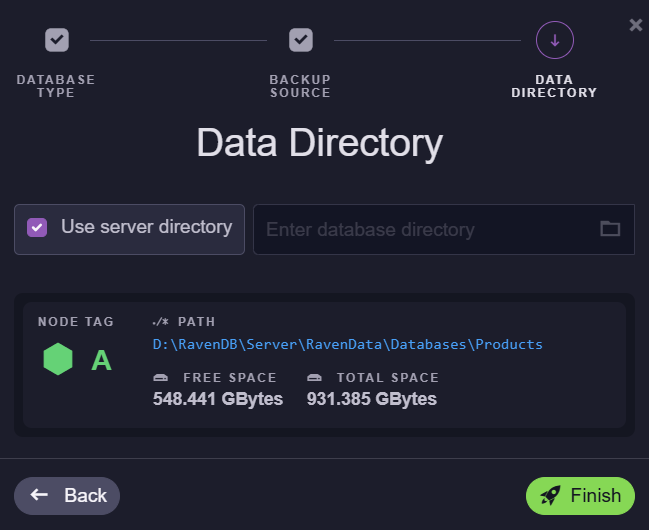

  • Choose the new database's location on the server machine.

The restore operation will conclude the process by creating a new database on the server and populating it with the backup content.

Run the restore wizard:​

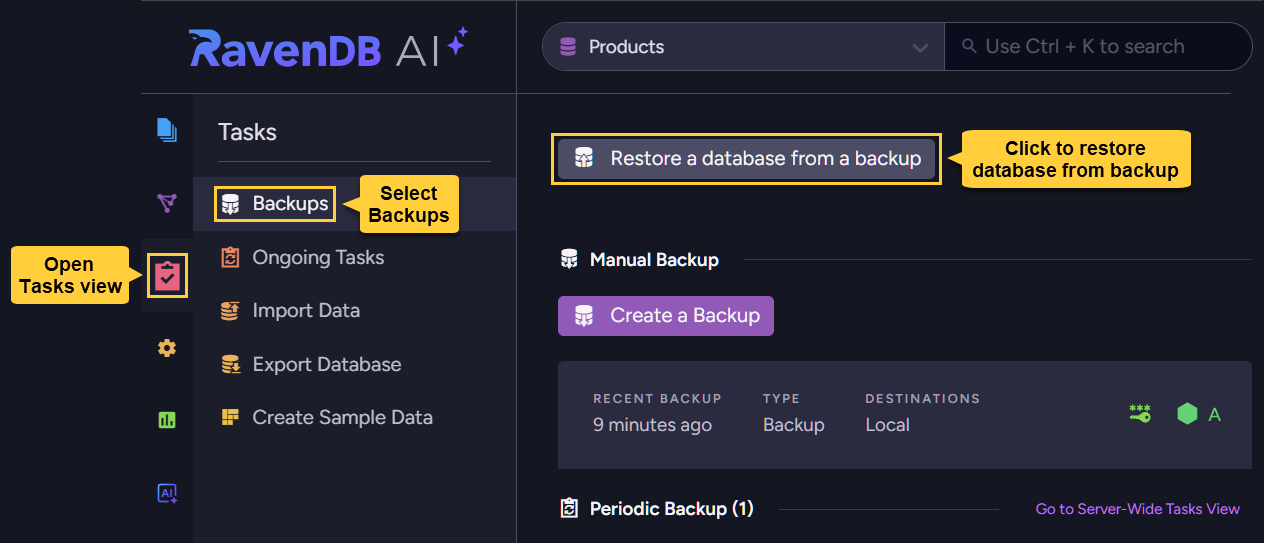

Open: Tasks > Backups > Restore a database from backup

Backups viewBackups view

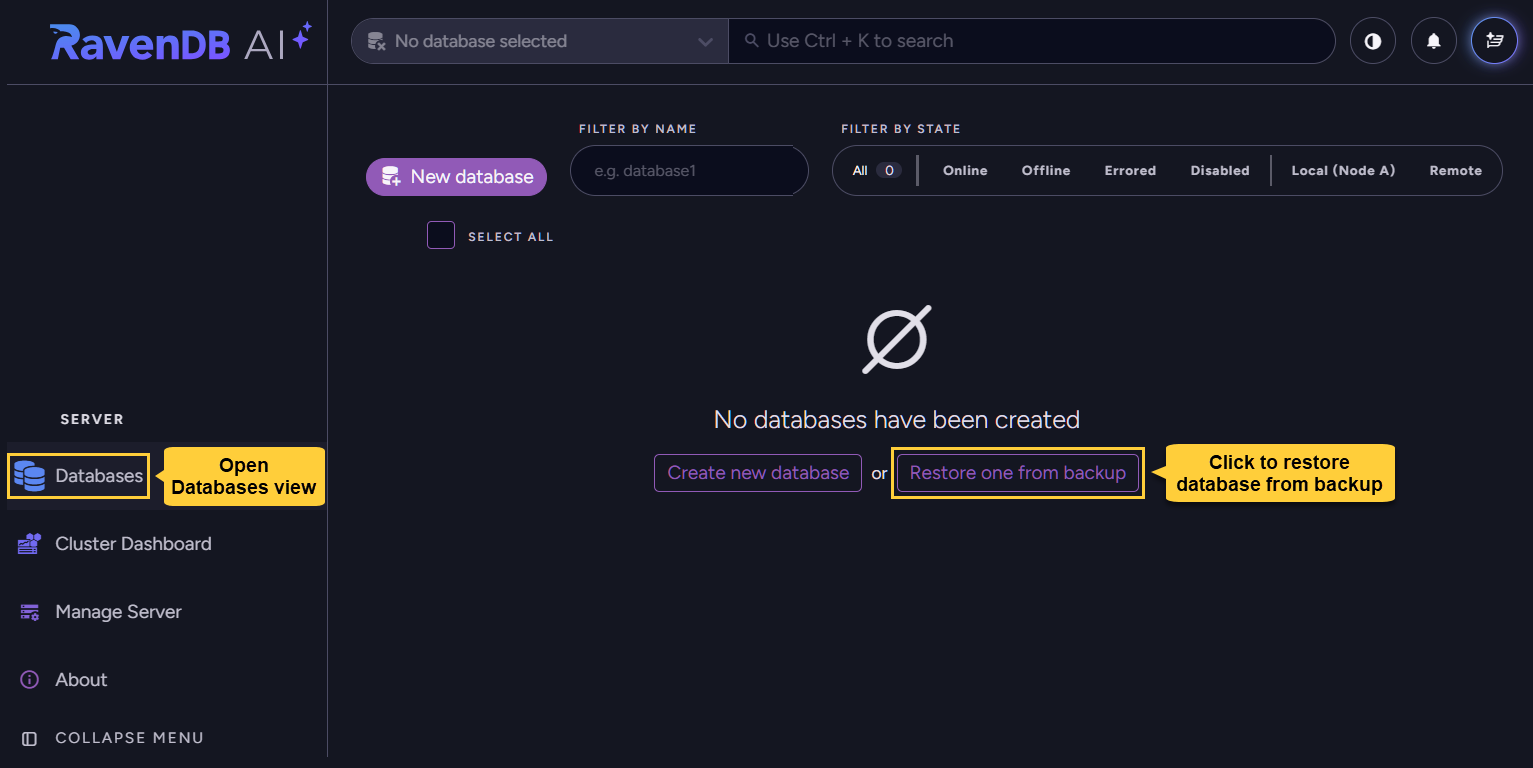

Or, if no databases exist yet so the database Tasks view is not displayed,
open: Databases > Restore one from backup

Databases viewDatabases view

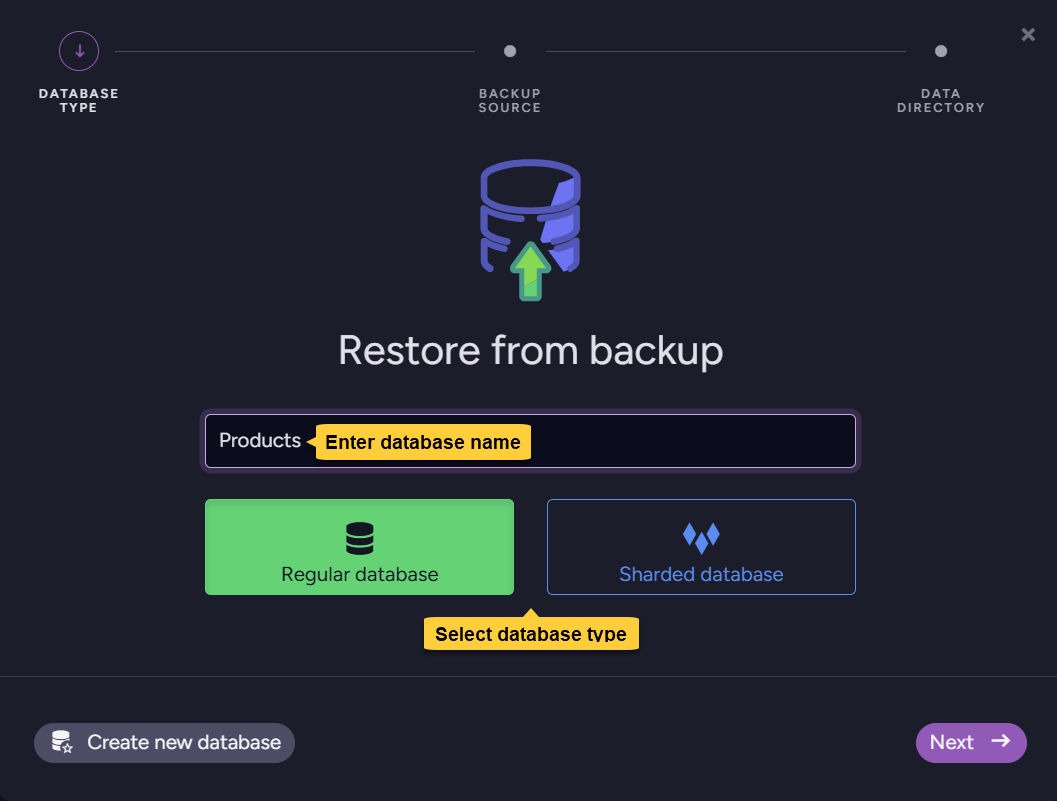

Set the new database name and type:​

New database name and typeNew database name and type

  • Enter a name for the new database.
    You can use the same name the database had when the backup was made,
    or choose a new name.
  • Select whether to create a regular or a sharded database.

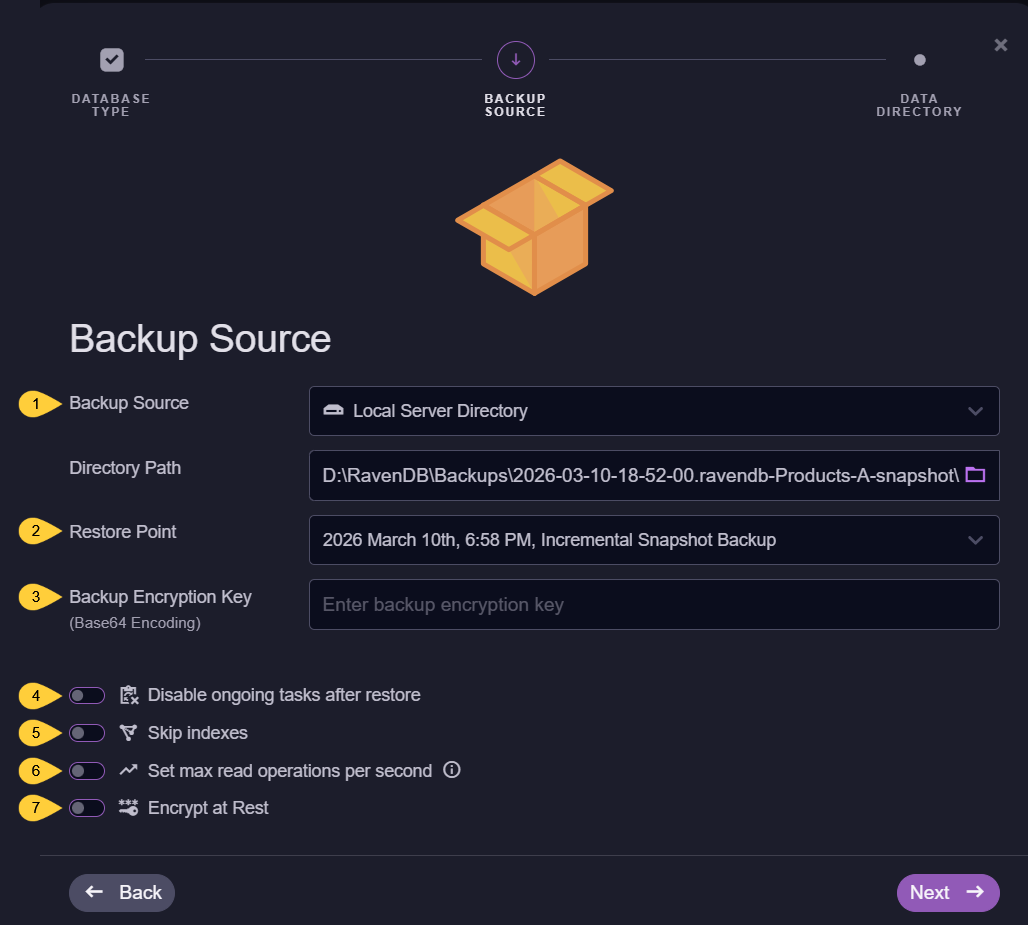

Set restore options:​

Restore optionsRestore options

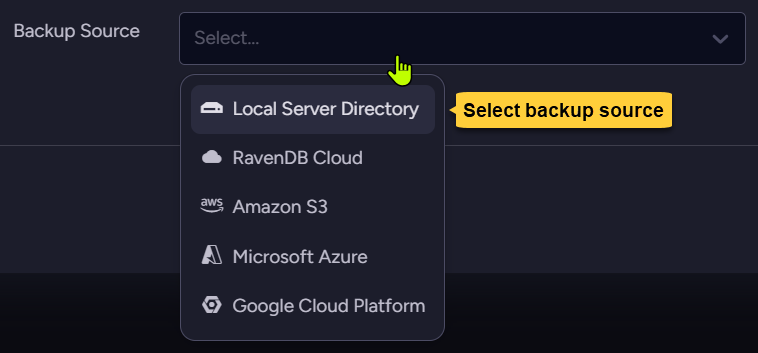

  1. Backup source
    Select your backup storage type.
    Backups sourceBackups source Input boxes relevant to the selected source will be displayed,
    e.g., directory path for a backup stored locally.

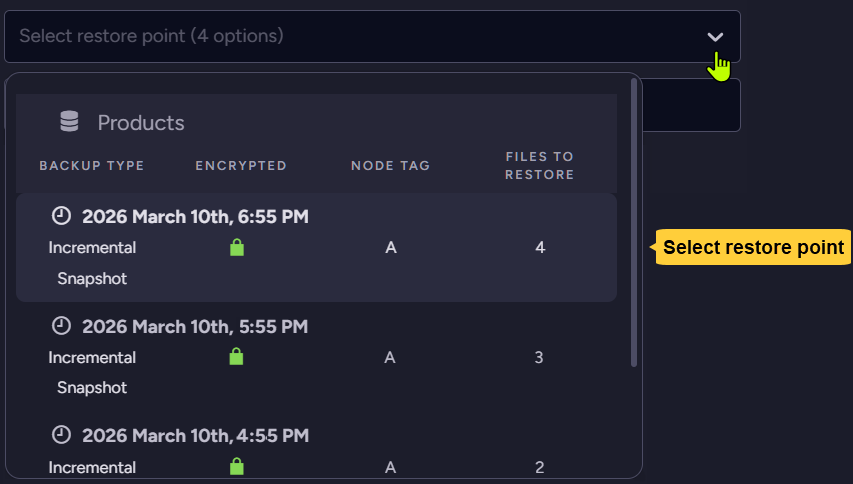

  2. Restore point
    If incremental backups have been created for the database, each of them is now considered a restore point and you can select up to which file, i.e. up to which point in time, you want to restore.
    To restore all backup files in the folder, pick the latest restore point in the list.
    Restore optionsRestore options

  3. Backup encryption key
    This option is available only when restoring from an encrypted backup.
    Use it to provide the backup's encryption key.

  4. Disable ongoing tasks after restore
    By default, if the backed up database included any ongoing tasks (including periodic backup tasks), they will be restored and enabled in the new database.
    Select this option to disable any ongoing task after restore, and enable tasks manually later on.

  5. Skip indexes
    Snapshots may include index data. If you prefer not to restore indexes, enable this option.

  6. Set max read operations per second
    Limit the number of read operations per second allowed during restore to reduce the operation's impact on server performance.

  7. Encrypt at Rest
    This option determines whether to encrypt the restored database.

    • The option is unavailable for snapshots.
      • A database restored from a snapshot will be encrypted if the snapshot is encrypted, using the same encryption key as the snapshot.
        If the snapshot is not encrypted, the database will not be encrypted either.
    • If you restore from a logical backup:
      • To create an unencrypted database, disable this option.
      • To encrypt the new database, enable this option and provide an encryption key.
        Restore optionsRestore options

Set new database folder:​

Choose a folder on the server machine for the new database.

Restore optionsRestore options

  • Check Use server directory to store the new database under the RavenDB server data directory,
    or uncheck this option to choose a different location manually.

  • Click Finish to start the restore operation.

After restoring:​

The new database will be available in the Databases view with the restored content.

Restore optionsRestore options

  • If you disabled ongoing tasks while restoring the database, remember to go through them (at Tasks > Ongoing tasks) and enable the ones you want the database to run.
  • If index data wasn't included in the backup or was not restored, the indexes will now be automatically rebuilt according to their restored definitions.
  • If the database was restored from a logical backup, documents will receive new change-vectors according to the node they reside on.

Restoring a database to multiple cluster nodes​

A database typically resides on multiple cluster nodes, enabling high availability and failover.
However, when restored from backup, a database is always restored only to the single node on which the restore operation was performed.

Use the following methods to extend the database to additional cluster nodes after restoration, if needed.

The instructions below assume you have a multiple node cluster.
Learn to add cluster nodes using the cluster API
Learn to add cluster nodes using Studio

Restoring to a single node and replicating to additional nodes​

After restoring the database, expand its database group to include additional nodes.
The database will be replicated to the added nodes automatically.

Using Studio:​

Add a node to the database group from the database view.

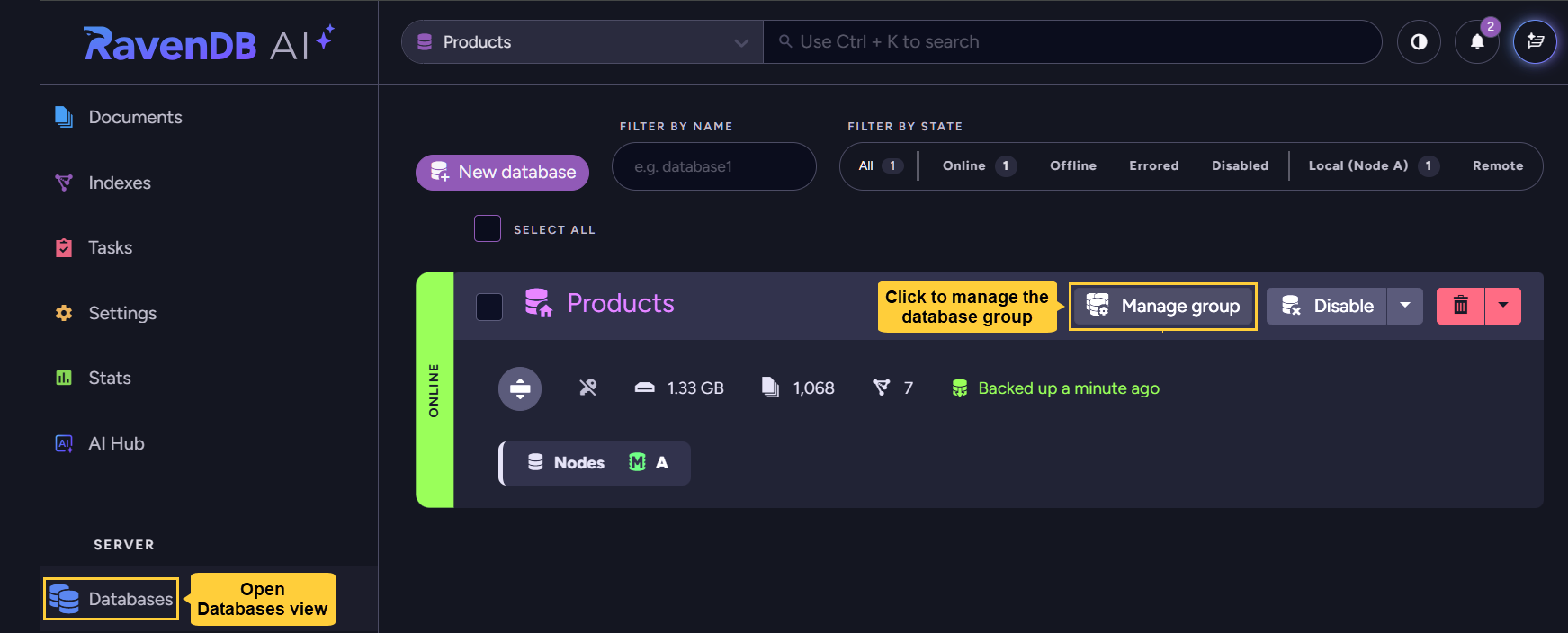

  • Open: Database view > The restored database > Manage group.

    Restore optionsRestore options

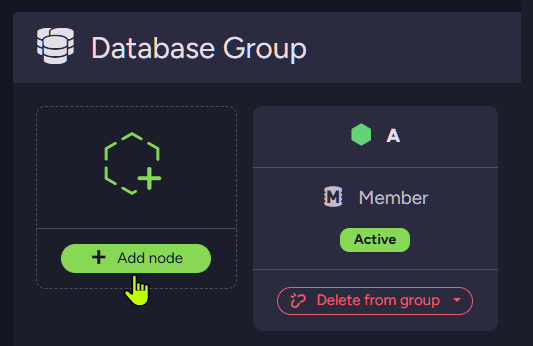

  • Click Add node

    Restore optionsRestore options

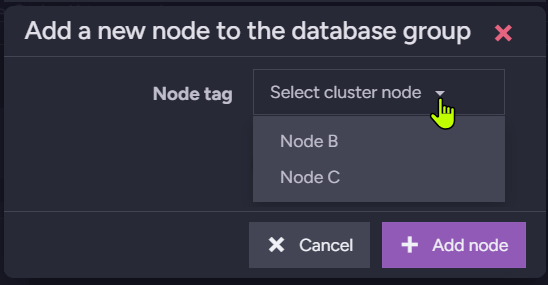

  • Pick the cluster node you want the database to expand to

    Restore optionsRestore options

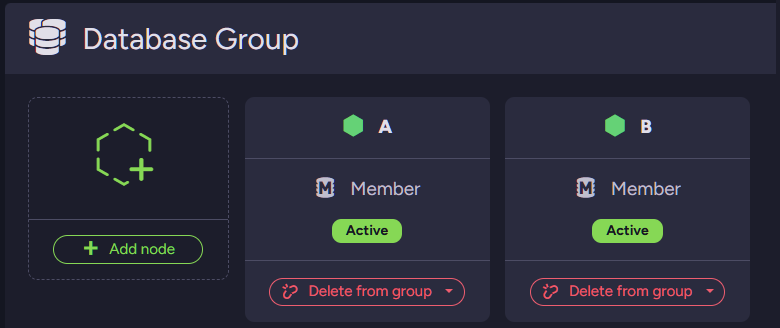

  • And a replica of the database will be created on the selected node.

    Restore optionsRestore options

Using the client API:​

Use AddDatabaseNodeOperation to add a node to the database group.

Example:

// Set restore configuration
var restoreConfig = new RestoreBackupConfiguration
{
    DatabaseName = "Products",
    BackupLocation = backupLocation,

    // Disable ongoing tasks so they won't run after restoring
    DisableOngoingTasks = true,

    // Restore index data
    SkipIndexes = false,

    // Provide user key to decrypt backup files
    BackupEncryptionSettings = new BackupEncryptionSettings
    {
        EncryptionMode = EncryptionMode.UseProvidedKey,
        Key = backupEncryptionKeyBase64
    },

    // Provide key to encrypt the restored database
    EncryptionKey = destinationDatabaseEncryptionKeyBase64
};

// Start restore operation
var operation = await store.Maintenance.Server.SendAsync(new RestoreBackupOperation(restoreConfig));

// Wait for the restore operation to complete (or fail)
await operation.WaitForCompletionAsync(TimeSpan.FromMinutes(30));

// Expand the restored database group: add node "B" as an additional member
await store.Maintenance.Server.SendAsync(
new AddDatabaseNodeOperation("Products", node: "B"));

// Verify that the database group was expanded
var record = await store.Maintenance.Server.SendAsync(new GetDatabaseRecordOperation("Products"));
Assert.Contains("A", record.Topology.Members);
Assert.Contains("B", record.Topology.Members);

Restoring to multiple nodes simultaneously​

Replicating the restored database to additional nodes as described above can be costly in time and resources when a large database is restored or throughput is limited.

To avoid replication, you can restore the database to multiple nodes simultaneously, as explained below.

However, this method is only feasible when the database is restored from a snapshot. Here is why:

  • All databases restored from the same snapshot are exactly identical to the original database and to each other. A document restored to multiple databases will retain its original change vector in all of them.
    If the databases are joined, copies of the same document across databases will be identified as identical, preventing unnecessary replication or conflicts.
  • A document restored into multiple databases from a logical backup, on the other hand, is re-inserted into each database with a new change vector.
    If the databases are joined, copies of the same document across databases will not be identified as identical, replication will be triggered, and conflicts may arise.

To restore from a snapshot into multiple nodes simultaneously and join the databases in the same database group after restoring:

  • Restore the snapshot to all relevant nodes.
    • Give each restored database a different name.
    • Ensure that one of the databases has the name you intend to keep.
      The other names are temporary and will be removed later.
  • Wait for the restore operation to complete on all nodes.
  • Soft-delete the databases with the temporary names.
    This will retain their data files on disk.
    • From Studio:
      While deleting a database from the Databases view, select Delete and keep files.
    • Using the client API:
      Learn to delete a database.
      e.g., to soft-delete the database named "TemporaryDatabaseName1" from node B:
      // soft-delete a database from one node
      await store.Maintenance.Server.SendAsync(new DeleteDatabasesOperation(
            "TemporaryDatabaseName1", hardDelete: false,
            fromNode: "B", timeToWaitForConfirmation: null));
  • Rename the deleted database's folder on each respective node to match the name of the remaining database.
  • On the node you didn't delete the database from, expand the database group (as shown above) to include all the other nodes.

Restoring from server-wide backups​

Restoring databases backed up by a server-wide backup task is identical to restoring databases backed up by regular database backup tasks.

  • Though a server-wide task creates backups for multiple databases, the backup for each database is restored separately into a new database.
  • Note that each backup is stored in the backup location within its own folder, named after the database it belongs to.
    When restoring, make sure the correct backup folder is selected.

In this article
