Connection String to Azure OpenAI

Define the connection string - from Studio​

Configuring a text embedding model​

connection string to azure open aiconnection string to azure open ai

  1. Name
    Enter a name for this connection string.

  2. Identifier (optional)
    Enter an identifier for this connection string.
    Learn more about the identifier in the connection string identifier section.

  3. Model Type
    Select "Text Embeddings".

  4. Connector
    Select Azure OpenAI from the dropdown menu.

  5. API key
    Enter the API key used to authenticate requests to the Azure OpenAI service.

  6. Endpoint
    Enter the base URL of your Azure OpenAI resource.

  7. Model
    Select or enter an Azure OpenAI text embedding model from the dropdown list or enter a new one.

  8. Deployment name
    Specify the unique identifier assigned to your model deployment in your Azure environment.

  9. Dimensions (optional)

    • Specify the number of dimensions for the output embeddings.
      Supported only by text-embedding-3 and later models.
    • If not specified, the model's default dimensionality is used.

  10. Max concurrent query batches: (optional)

    • When making vector search queries, the content of the search terms must also be converted to embeddings to compare them against the stored vectors.
      Requests to generate such query embeddings via the AI provider are sent in batches.
    • This parameter defines the maximum number of these batches that can be processed concurrently.
      You can set a default value using the Ai.Embeddings.MaxConcurrentBatches configuration key.

  11. Click Test Connection to confirm the connection string is set up correctly.

  12. Click Save to store the connection string or Cancel to discard changes.

Configuring a chat model​

  • When configuring a chat model, the UI displays the same base fields as those used for text embedding models,
    including the connection string Name, optional Identifier, API Key, Endpoint, Deployment Name, and Model name.

  • Additional settings specific to chat models are: Prompt Cache Key & Temperature.

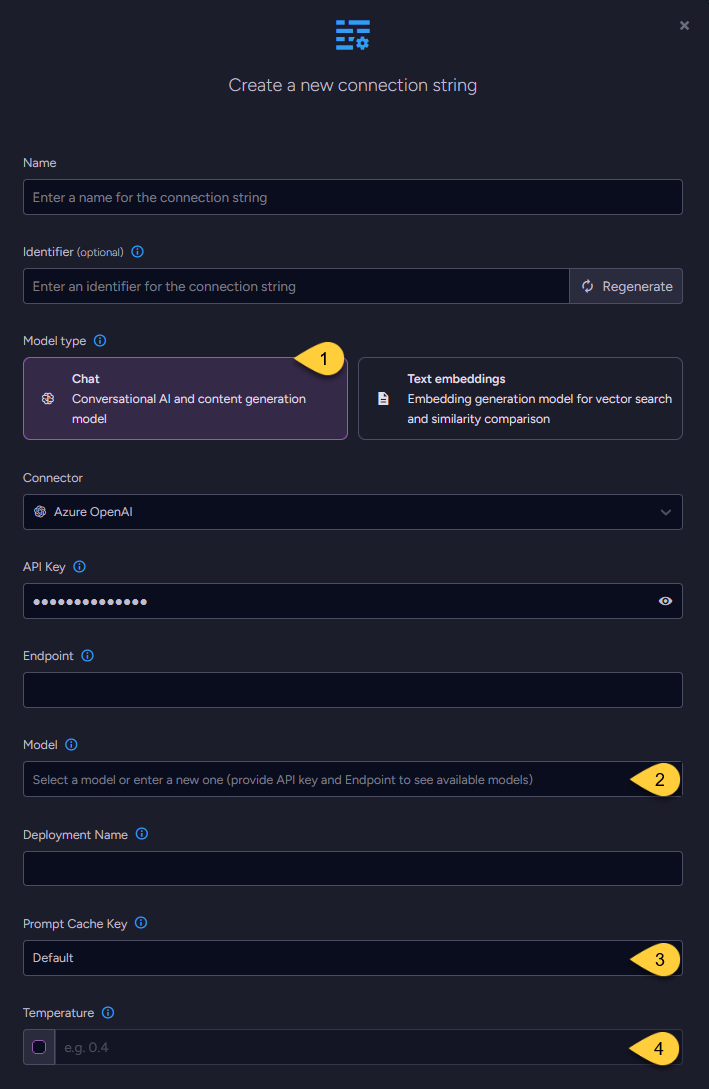

connection string to azure open aiconnection string to azure open ai

  1. Model Type
    Select "Chat".

  2. Model
    Enter the name of the Azure OpenAI model to use for chat completions.

  3. Prompt Cache Key (optional)

    • Controls whether RavenDB includes the prompt_cache_key field in chat completion requests sent to the AI provider when using AI Agents.

    • When enabled (set to True), RavenDB sends the Conversation's document ID in the prompt_cache_key field with each request. This can help the AI provider identify requests that belong to the same conversation and reuse a previously cached prompt prefix (system prompt + prior messages).

    • Why this helps:
      AI providers typically process requests on many servers. Without a cache key, consecutive requests from the same conversation may be handled by different servers, each reprocessing the entire conversation from scratch. With the cache key, the provider can route the request to the same machine that handled the previous turn, where the computed prefix is likely still in memory. The provider then only needs to process the new messages, reducing latency and cost.

    • The full conversation content is still sent with every request. The cache key is only a provider-side optimization hint. RavenDB does not control the provider's caching behavior.

    • Options:

      • Default - True (Enabled for Azure OpenAI).
      • True - Always send the cache key.
      • False - Never send the cache key.
        Set to False if your provider does not support the field and returns errors instead of ignoring it.

  4. Temperature (optional)
    The temperature setting controls the randomness and creativity of the model’s output.
    Valid values typically range from 0.0 to 2.0:

    • Higher values (e.g., 1.0 or above) produce more diverse and creative responses.
    • Lower values (e.g., 0.2) result in more focused, consistent, and deterministic output.
    • If not explicitly set, Azure OpenAI uses a default temperature of 1.0.
      See Azure OpenAI chat completions parameters.

Define the connection string - from the Client API​

using (var store = new DocumentStore())
{
    // Define the connection string to Azure OpenAI
    var connectionString = new AiConnectionString
    {
        // Connection string Name & Identifier
        Name = "ConnectionStringToAzureOpenAI",
        Identifier = "identifier-to-the-connection-string", // optional

        // Model type
        ModelType = AiModelType.TextEmbeddings,

        // Azure OpenAI connection settings
        AzureOpenAiSettings = new AzureOpenAiSettings
        {
            ApiKey = "your-api-key",
            Endpoint = "https://your-resource-name.openai.azure.com",

            // Name of text embedding model to use
            Model = "text-embedding-3-small",

            DeploymentName = "your-deployment-name",

            // Optionally, override the default maximum number of query embedding batches
            // that can be processed concurrently
            EmbeddingsMaxConcurrentBatches = 10
        }
    };

    // Deploy the connection string to the server
    var putConnectionStringOp =
        new PutConnectionStringOperation<AiConnectionString>(connectionString);
    var putConnectionStringResult = store.Maintenance.Send(putConnectionStringOp);
}

Syntax​

public class AiConnectionString
{
    public string Name { get; set; }
    public string Identifier { get; set; }
    public AiModelType ModelType { get; set; }
    public AzureOpenAiSettings AzureOpenAiSettings { get; set; }
}

public class AzureOpenAiSettings : AbstractAiSettings
{
    public string ApiKey { get; set; }
    public string Endpoint { get; set; }
    public string Model { get; set; }
    public string DeploymentName { get; set; }

    // Relevant only for TEXT EMBEDDING models:
    // Specifies the number of dimensions in the generated embedding vectors.
    public int? Dimensions { get; set; }

    // Relevant only for CHAT models:
    // Controls the randomness and creativity of the model’s output.
    // Higher values (e.g., 1.0 or above) produce more diverse and creative responses.
    // Lower values (e.g., 0.2) result in more focused and deterministic output.
    // If set to 'null', the temperature is not sent and the model's default will be used.
    public double? Temperature { get; set; }

    // Relevant only for CHAT models:
    // Controls whether the 'prompt_cache_key' field is included in chat completion requests.
    // When enabled, the conversation's document ID is sent as the cache key to the AI provider.
    // Default: enabled (true) for Azure OpenAI
    public bool? EnablePromptCache { get; set; } // optional
}

public class AbstractAiSettings
{
    public int? EmbeddingsMaxConcurrentBatches { get; set; }
}
