Ongoing Tasks: RavenDB ETL

  • RavenDB ETL Task creates an ETL process that transfers data from a RavenDB database to another RavenDB database, with optional filtering and transformation along the way.

  • The transformation script is executed per document in the defined source collection(s) whenever a document is created, modified, or deleted.

  • One ETL task can have multiple transformation scripts, each loading to a different destination collection.

  • All documents loaded in a single ETL run are sent in one batch and processed transactionally in the destination.

  • On secure servers, the destination cluster must trust the source, see Passing certificate between secure clusters.

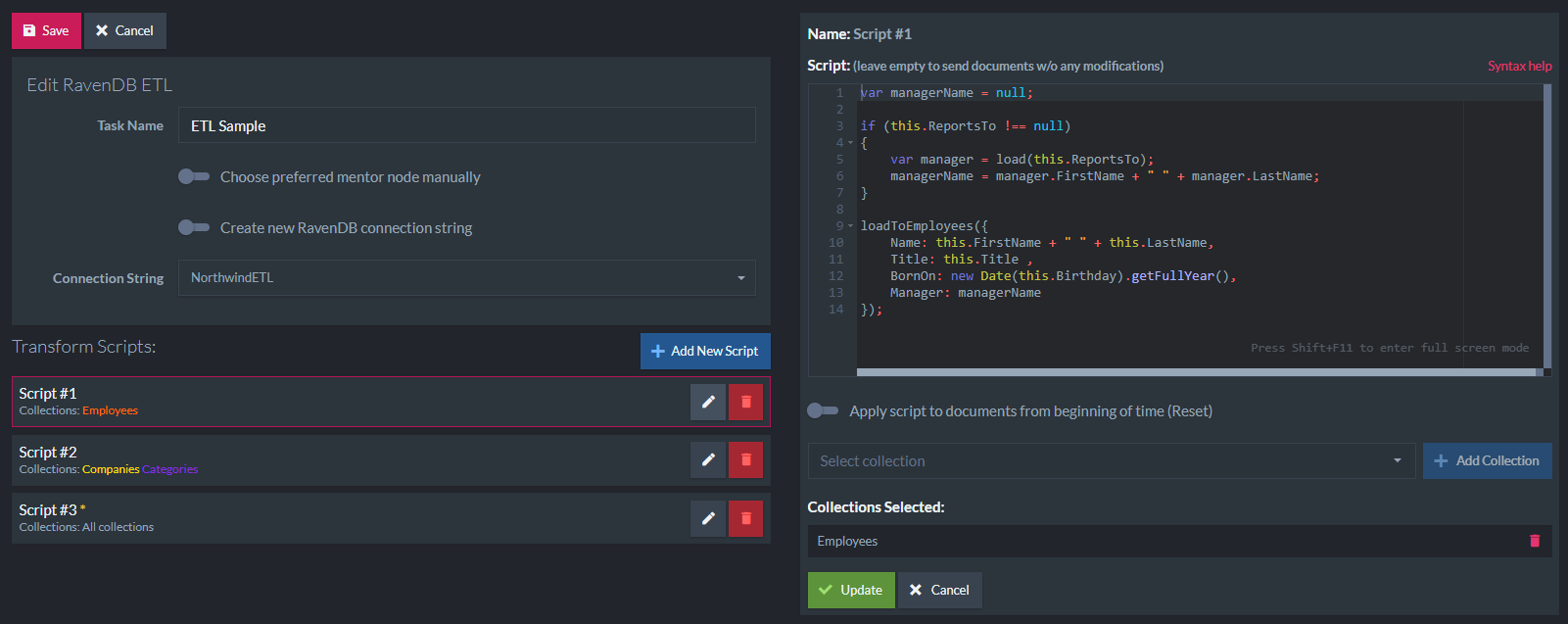

  • RavenDB ETL tasks can be defined via the Client API or the Studio.

  • In this article:

Transformation script options​

Loading documents to the destination database​

To transfer data to the destination, call the loadTo method. Specify the target collection name and pass a JavaScript object representing the document that will be written to the destination database.

The   loadTo   method:​

The loadTo method has two syntax options.
For example, the following two calls are equivalent:

loadToEmployees(obj);
loadTo('Employees', obj);

Both options write obj to the Employees collection in the destination database.
Refer to The loadTo method for full syntax details.

Construct the object to transfer:​

The object passed to loadTo can be constructed inline:

// * Write a document (with a single Name field)
//   to the 'Employees' collection in the destination database.
// * 'this' represents the current source document.
loadToEmployees({
    Name: this.FirstName + " " + this.LastName
});

// Or use the second syntax:
// loadTo('Employees', {
//     Name: this.FirstName + " " + this.LastName
// });

You can assign this (which is the current source document) to a variable, customize it, and then pass it to loadTo.
Note that delete removes fields from the object being sent - the source document is Not affected.

var obj = this; // 'this' is the current source document.
obj.Name = this.FirstName + " " + this.LastName;

// These fields will be omitted from the destination document
delete obj.Address;
delete obj.FirstName;
delete obj.LastName;

// Write the object to the 'Employees' collection in the destination database
loadToEmployees(obj); // Or: loadTo('Employees', obj);

Or, you can build a new object and selectively populate it from the source document:

// Create a new empty object.
var obj = {};
// Populate it with fields from the source document
obj.Name = this.FirstName + " " + this.LastName;

// Write the object to the 'Employees' collection in the destination database
loadToEmployees(obj); // Or: loadTo('Employees', obj);

Example:​

The following script processes documents from the Employees collection.
For each employee document from the source database, the related manager document is loaded (when available),
and the resulting object is written to the destination:

var managerName = null;

if (this.ReportsTo !== null)
{
    // Load the related manager document from the source database
    var manager = load(this.ReportsTo);
    managerName = manager.FirstName + " " + manager.LastName;
}

// Write the object to the 'Employees' collection in the destination database
loadToEmployees({
    Name: this.FirstName + " " + this.LastName,
    Title: this.Title,
    BornOn: new Date(this.Birthday).getFullYear(),
    Manager: managerName
});
// Or:
// loadTo('Employees', {
//     Name: this.FirstName + " " + this.LastName,
//     Title: this.Title,
//     BornOn: new Date(this.Birthday).getFullYear(),
//     Manager: managerName
// });

Document Identifiers​

Document IDs assigned to documents written to the destination depend on whether the source and destination collections share the same name. You can also configure a postfix to further modify the resulting ID.

Same source and destination collection:​

When loadTo targets the same collection as the source, the original document ID is preserved on the destination.

// Source collection: Employees
// Destination collection: Employees
loadToEmployees({ ... });

// The document ID (e.g., "employees/1-A") is preserved in the destination

Different source and destination collections:​

When loadTo targets a different collection, the destination ID is constructed by combining the original ID with the destination collection name, and the server generates a new unique identity for it.

For example, if the source collection is Employees and destination is People, the destination ID will look like: employees/1-A/people/00000000000000000024-A

This happens because the ETL task appends / to the source ID, signaling the destination server to generate an identity-based ID. Since the destination ID differs from the source ID, the old document version is deleted on the destination database and replaced with each update. This behavior can be changed - see Deletions.

// Source collection: Employees
// Destination collection: People
loadToPeople({ ... });

// A new server-generated ID is created, e.g. "employees/1-A/people/00000000000000000024-A"
// The previous version in the destination is deleted by default

Setting a destination document ID postfix:​

You can optionally set a DocumentIdPostfix in the ETL task configuration.
When set, it is appended to every document ID written to the destination.
The exact resulting ID depends on whether the source and destination collections are the same.

  • When the destination collection is the SAME as the source collection -
    the postfix is appended directly to the source ID.

    For example:
    Document ID in source: users/1-A
    Document ID generated in destination:
    users/1-A<postfix>

  • When the destination collection DIFFERS from the source collection -
    the postfix is embedded in the server-generated ID:

    For exmample:
    Document ID in source: users/1-A
    Document ID generated in destination:
    users/1-A/<destinationCollectionName>/<postfix>/0000000000000072-A

  • When to set a document ID postfix:
    Setting a destination document ID postfix is useful when multiple isolated RavenDB instances share the same ID space and all ETL into a single shared destination database. Without a postfix, documents from different sources that share the same ID (e.g. all three sources have users/1-A) would overwrite each other in the destination database. Assigning a distinct postfix per source (e.g. -eu, -us, -ap) ensures each arrives as a separate document.

  • Example:

    // Define the RavenDB ETL task configuration
    var ravenEtlConfig = new RavenEtlConfiguration
    {
        // Name of the ETL task
        Name = "ETL user documents from EU region",

        ConnectionStringName = "raven-connection-string-name",

        Transforms =
        {
            new Transformation
            {
                Name = "script-name",

                // The source collection
                Collections = { "Users" },

                // Set the document ID postfix on the destination
                // "users/1-A" in source will become "users/1-A-eu" in destination
                DocumentIdPostfix = "-eu",

                // This script loads documents to the SAME collection
                Script = @"loadToUsers({ Name: this.Name });"
            }
        }
    };

    // Deploy the ETL task with the above configuration
    store.Maintenance.Send(new AddEtlOperation<RavenConnectionString>(ravenEtlConfig));

Filtering​

  • Filtering controls which source documents are transferred to the destination. A document is only sent if loadTo is called during its script execution - simply omit the loadTo call for documents you want to exclude.

  • Any field on the current document (this) can be used as a filter condition,
    including nested fields, metadata values, or the result of a load() call on a related document.

    // Only transfer employees based in London
    if (this.Address.City === "London") {
        loadToEmployees({
            Name:  this.FirstName + " " + this.LastName,
            Title: this.Title
        });
    }

  • Use the load(id) function to fetch a related document by its ID into the script context. The ID to pass to load() is typically stored as a field on the current document (this), acting as a reference to the related document.
    This lets you read fields from the related document and include them in the object you send to the destination.

  • Note that load() increases the maximum number of allowed script execution steps.
    Read about "Execution limitations" in How RavenDB uses Jint.

  • Example:
    The following script processes documents from the Employees collection.
    Each employee document holds a ReportsTo field containing the ID of the employee's manager.
    The related manager document is loaded so its name can be included in the destination document.

    // load() returns null if no document exists with the given ID
    var manager = load(this.ReportsTo);

    var managerName = manager ? manager.FirstName + " " + manager.LastName
        : "No manager assigned";

    loadToEmployees({
        Name:    this.FirstName + " " + this.LastName,
        Title:   this.Title,
        Manager: managerName
    });

    Note:
    Changes made to a related document that is fetched with load() in the script do not trigger the ETL process.
    ETL is only triggered by changes to documents in the collections the script is defined on.

Accessing metadata​

  • The metadata of the current source document is accessible via this['@metadata'].
    Use this to read built-in RavenDB metadata properties or any custom metadata keys you have set on the document.

  • Alternatively, you can use the predefined function getMetadata(document), which returns the full metadata object for any document - including @id, @change-vector, and @last-modified.

  • Any metadata value you retrieve can be included as a field in the object you pass to loadTo,
    allowing metadata from the source document to become regular document data in the destination.

// Access built-in metadata properties on the current source document
var docId        = this['@metadata']['@id'];
var changeVector = this['@metadata']['@change-vector'];
var lastModified = this['@metadata']['@last-modified'];
var collection   = this['@metadata']['@collection'];

Creating multiple documents from a single document​

  • The loadTo method can be called multiple times within a single script, allowing a single source document to produce multiple documents in the destination database - each written to a different collection.

  • For example, the following script processes documents from the Employees collection.
    For each source Employee document, two destination documents are created:
    one in the Addresses collection and one in the Employees collection.

    // Write the employee's address to the 'Addresses' collection in the destination
    loadToAddresses({
        City: this.Address.City ,
        Country: this.Address.Country ,
        Address: this.Address.Line1
    });

    // Remove the address from the object before writing the employee record,
    // so it is not duplicated in the 'Employees' collection.
    // Note: 'delete' only affects the object being sent - the source document is not modified.
    delete this.Address;

    // Write the remaining employee data to the 'Employees' collection
    loadToEmployees(this);

Empty Script​

  • An ETL task can be created with an empty script.
  • The documents will be transferred without any modifications to the same collection as the source document.

Attachments​

Sending attachments together with documents​

  • Attachment is sent along with a transformed document if it's explicitly defined in the script by using addAttachment() method. By default, the attachment name is preserved.
  • The script below sends all attachments of a current document by taking advantage of getAttachments() function, loads each of them during transformation, and adds them to a document that will be sent to the 'Users' collection on the destination database.
var doc = loadToUsers(this);

var attachments = getAttachments();

for (var i = 0; i < attachments.length; i++) {
    doc.addAttachment(loadAttachment(attachments[i].Name));
}

Changing attachment name​

  • If addAttachment() is called with two arguments, the first one can indicate a new name for an attachment. In the below example attachment photo will be sent and stored under the picture name.
  • To check the existence of an attachment hasAttachment() function is used
{`var employee = loadToEmployees({
    Name: this.FirstName + " " + this.LastName
});

if (hasAttachment('photo')) {
  employee.addAttachment('picture', loadAttachment('photo'));
}

Loading non-existent attachment​

Function loadAttachment() returns null if a document doesn't have an attachment with a given name. Passing such reference to addAttachment() will be no-op and no error will be thrown.

Accessing attachments from metadata​

The collection of attachments of the currently transformed document can be accessed either by getAttachments() helper function or directly from document metadata:

var attachments = this['@metadata']['@attachments'];

Counters​

  • Counters are sent automatically when you send a full collection to the destination using an empty script.
  • If a script is defined RavenDB doesn't send counters by default.
  • To indicate that a counter should also be sent, the behavior function (e.g. by increment operation). If the relevant function doesn't exist, a counter isn't loaded.
  • The reason that counters require special functions is that incrementing a counter doesn't modify the change vector of a related document so the document isn't processed by ETL on a change in the counter.
  • Another option of sending a counter is to explicitly add it in a script to a loaded document.
  • Counter behavior function
  • Adding counter explicitly in a script

Counter behavior function​

  • Every time a counter of a document from a collection that ETL script is defined on is modified then the behavior function is called to check if the counter should be loaded to a destination database.

Important

The counter behavior function can be defined only for counters of documents from collections that are ETLed to the same collections e.g.: a script is defined on Products collection and it loads documents to Products collection in a destination database using loadToProducts() method.

The function is defined in the script and should have the following signature:

function loadCountersOf<CollectionName>Behavior(docId, counterName) {
   return [true | false];
}
ParameterTypeDescription
docIdstringThe identifier of a deleted document.
<CollectionName>stringThe collection that the ETL script is working on.
counterNamestringThe name of the modified counter for that doc.
ReturnDescription
boolIf the function returns true then a change value is propagated to a destination.

Example: Modifying a Counter Named "downloads"​

The following script is defined on the Products collection:

if (this.Category == 'software') {
    loadToProducts({
        ProductName: this.Name
    });
}

function loadCountersOfProductsBehavior(docId, counterName) {
   var doc = load(docId);

   if (doc.Category == 'software' && counterName = 'downloads')
        return true;
}

Adding counter explicitly in a script​

Counter behavior functions typically handle counters of documents that are loaded to the same collection. If a transformation script for Employees collection specifies that they are loaded to the People collection in a target database, then due to document ID generation strategy by ETL process (see Documents Identifiers), the counters won't be sent because the final ID of a loaded document isn't known on the source side.

You can use special functions in the script code to deal with counters on documents that are loaded into different collections:

var person = loadToPeople({ Name: this.Name + ' ' + this.LastName });

person.addCounter(loadCounter('likes'));

  • The above example indicates that the likes counter will be sent together with a document. It uses the following functions to accomplish that:

    • loadCounter(name) returns a reference to a counter that is meant be passed to addCounter()
    • <doc>.addCounter(counterRef) adds a counter to a document that will be sent in the process, <doc> is a reference returned by loadTo<CollectionName>()

    Important

    As the transformation script is run on a document update then counters added explicitly (addCounter()) will be loaded along with documents only if the document is changed. It means that incremented counter value won't be sent until a document is modified and the ETL process will run the transformation for it.

Counter value override by ETL

Counters sent by the ETL process always override the existing value on the destination. ETL doesn't send an increment counter command but it sets the value using a put command.

Time series​

Time Series Load Behavior Function​

  • The time-series behavior function is defined in the script to set the conditions under which time-series data is loaded.
  • The load behavior function evaluates each time-series segment and decides whether to load it to the destination database. ETL only updates the data that has changed: if only one time-series entry is modified, only the segment that entry belongs to is evaluated.
  • Changes to time-series trigger ETL on both the time-series itself and on the document it extends.
  • The function returns either a boolean or an object with two Date values that specify the range of time-series entries to load.
  • The time-series behavior function can only be applied to time-series whose source collection and target collection have the same name. Loading a time-series from an Employees collection on the server-side to a Users collection at the target database is not possible using the load behavior function.
  • The function should be defined with the following signature:
function loadTimeSeriesOf<collection name>Behavior(docId, timeSeriesName) {
   return [ true | false | <span of time> ];
}
//"span of time" refers to this type: { string?: from, string?: to }
ParameterTypeDescription
&lt;collection name>A part of the function's nameDetermines which collection's documents this behavior function applies to. A function named loadTimeSeriesOfEmployeesBehavior will apply on all time-series in the collection Employees
docIdstringThis parameter is used inside the function to refer to the documents' ID
timeSeriesNamestringThis parameter is used inside the function to refer to the time series' name
Return ValueDescription
trueIf the behavior function returns true, the given time series segment is loaded.
falseThe given time series segment is not loaded
&lt;span of time>An object with two optional Date values: from and to. If this is the return value, the script loads the time series entries between these two times. If you leave from or to undefined they default to the start or end of the time series respectively.

Example​

The following script is defined in the Companies collection. The behavior function loads each document in the collection into the script context using load(docId), then filters by the document's Address.Country property as well as the time series' name. This sends only stock price data for French companies.

loadToCompanies(this);

function loadTimeSeriesOfCompaniesBehavior(docId, timeSeriesName) {
   var company = load(docId);

   if (company.Address.Country == 'France' && timeSeriesName = 'StockPrices')
        return true;
}

Adding Time Series to Documents​

  • Time series can be loaded into the script context using loadTimeSeries().
  • Once a time series is loaded into the script, it can be added to a document using AddTimeSeries().
var employee = loadToEmployees({
    Name: this.Name + ' ' + this.LastName
});

employee.addTimeSeries(loadTimeSeries('StockPrices'));

When using addTimeSeries, addAttachment, and\or addCounter, ETL deletes and replaces the existing documents at the destination database, including all time series, counters, and attachments.

Since the transformation script is run on document update, time series added to documents using addTimeSeries() will be loaded only when the document they extend has changed.

Filtering by start and end date​

Both the behavior function and loadTimeSeries() accept a start and end date as second and third parameters. If these are set, only time-series data within this time span is loaded to the destination database.

company.addTimeSeries(loadTimeSeries('StockPrices', new Date(2020, 3, 26), new Date(2020, 3, 28)));
function loadTimeSeriesOfUsersBehavior(doc, ts)
{
    return {
        from: new Date(2020, 3, 26),
        to: new Date(2020, 3, 28)
    };
};

Revisions​

Revisions are not sent by the ETL process.

But, if revisions are configured on the destination database, then when the target document is overwritten by the ETL process a revision will be created as expected.

Deletions​

Upon source document modifications, ETL is set to delete and replace the destination documents by default.

If you want to control the way deletions are handled in the destination database, you can change the default settings with the configurable functions described in this section.

Deletions: Why documents are deleted by default in the destination database​

Preventing duplication​

To prevent duplication, we delete the documents in the destination by default before loading the updated documents that replace the deleted ones.
If the document is deleted in the source, RavenDB also deletes it in the destination by default.

Some developers prefer to control the deletes so that, for example, a delete in the source will not cause a delete in the destination, or to preserve a history of the document in the destination.

The functions in this section were created to allow developers this control.

When destination collections are different​

If we ETL to a different collection than the source,
the source isn't aware of the new IDs created. This forces us to load new documents with incremented IDs instead of overwriting the fields in existing documents.
RavenDB has to create a new, updated document in the destination with an incremented server-made identity.
You can then choose if you want to delete the old version in the destination by selecting return false in the transform script function deleteDocumentsBehavior.

  • Each updated version of the document gets a server generated ID in which the number at the end is incremented with each version.

    For example: "...profile/0000000000000000019-B" will become ".../profile/0000000000000000020-B"
    The word before the number is the collection name and the letter after the number is the node.
    In this case, the document's collection is "Profile", which is in a database in node "B", and which has been updated via ETL 20 times.

  • If the ETL is defined to load the documents to more than one collection, by default it will delete, and if it's not deleted in the source, it will replace all of the documents with the same prefix.

    For example:
    Document employees/1-A is processed by ETL and put into the People and Sales collections with IDs:
    employees/1-A/people/0000000000000000001-A and employees/1-A/sales/0000000000000000001-A.
    Deletion or modification of the employees/1-A document on the source side triggers sending a command that deletes all documents having the following prefix in their ID: employees/1-A.

If we load a document to the same collection as the source,
then the ID is preserved and no special approach is needed. Deletion in the source results in sending a single delete command in the destination for a given ID.
If documents are updated and not deleted in the source, they will simply be updated in the destination with no change to the destination document ID. Deletions can be controlled by defining deletion behavior functions in the ETL script.

Deletions: Collection specific function​

Syntax​

function deleteDocumentsOf<CollectionName>Behavior(docId, deleted) {
    if (deleted == false)
    return <bool>
}

<CollectionName> needs to be substituted by a real collection name that the ETL script is working on (same convention as for loadTo method).
e.g. function deleteDocumentsOfOrdersBehavior(docId, deleted) {return false;}

ParameterTypeDescriptionNotes
docIdstringThe identifier of a deleted document.
deletedboolIf you don't include the deleted parameter, RavenDB will execute the function without checking if the document was deleted from the source database.
If you include deleted, RavenDB will check if the document was indeed deleted or just updated.		Optional
Return ValueDescription
trueThe document will be deleted from the destination database.
falseThe document will not be deleted from the destination database.

Example - Collection Specific Deletion Behavior Function​

To define deletion handling when the source and destination collections are the same, use the following sample. If you ETL to a different collection than the source, there is a different deletion behavior in the destination.

function deleteDocumentsOfproductsHistoryBehavior(docId, deleted) {
    // If any document in the specified source collection is modified but is not deleted,
    // then the ETL will not send a delete command to the destination.
    if (deleted === false)
    return false;
    // If the source document was deleted, the destination will also be deleted
    else return true;
}

Leaving out the deleted parameter will not allow you to check if the source document was deleted and will trigger the command regardless of whether the source document was deleted.

Deletions: Generic function​

There is also a generic function to control deletion on different collections.

Syntax​

function deleteDocumentsBehavior(docId, collection, deleted) {

    if (collection === "string" && deleted === <bool>)
        return <bool>;
}
ParameterTypeDescription
docIdstringThe identifier of a deleted document.
collectionstringThe name of a collection that ETL is working on.
deletedboolOptional and therefore doesn't affect existing code.
If you don't include the deleted parameter, RavenDB will execute the function without checking if the document was deleted from the source database.
If you include deleted, RavenDB will check if the document was indeed deleted or just updated.
Return ValueDescription
trueThe document will be deleted from the destination database.
falseThe document will not be deleted from the destination database.

Leaving out the deleted parameter will not allow you to check if the source document was deleted and will trigger the command regardless of whether the source document was deleted.

Example - Generic deletions behavior function​

If the source and destination collection names are different
and deletions behavior is set to false,
each document change will load a new document with an incremented document identity, thus saving a history.

If the collection name of the destination is the same as the source, the ETL will simply update the destination document without needing to change the ID.

function deleteDocumentsBehavior(docId, collection, deleted) {
    // If any document in the specified source collection is modified but is not deleted,
    // then the ETL will not send a delete command to the destination collection "Products".
    // (If collection names were different, the old document versions would remain
    // and a new version would be stored with an incremented ID, thus saving a history of document versions.)
    if (collection === "Products" && deleted === false)
        return false;
    // If the source document was deleted, delete the entire set of versions from the destination.
    else return true;
}

Deletions: Filtering deletions in the destination database​

You can further specify the desired deletion behavior by adding filters.

By the time an ETL process runs a delete behavior function, the original document is already deleted from the source. It is no longer available. You may want the ETL to set up an archive of documents that were deleted from the source, or save a part of deleted documents in a separate document for later use.

Following are three examples of ways to save documents for later use when they are deleted from the source database:

Filtering out all deletions:​

loadToUsers(this);

function deleteDocumentsOfUsersBehavior(docId) {
    return false;
}

Storing deletion info in an additional document:​

When you delete a document you can store a deletion marker document that will prevent propagating the deletion by ETL.

  • In the below example if the auxiliary document LocalOnlyDeletions/{docId} exists then we skip this deletion during ETL. The auxiliary document can be created to protect certain documents from deletion in the destination database.
  • You can add @expires tag to the metadata when storing the marker document, so it would be automatically cleaned up after a certain time by the expiration extension.
loadToUsers(this);

function deleteDocumentsOfUsersBehavior(docId) {
    var localOnlyDeletion = load('LocalOnlyDeletions' + docId);

    return !localOnlyDeletion;
}

When ETL is set on the entire database, but you want to filter deletions by certain collections:​

If you define ETL for all documents, regardless of the collection they belong to, then the generic function can filter deletions by collection name.

function deleteDocumentsBehavior(docId, collection, deleted) {
    return 'Users' != collection;
}
ParameterTypeDescription
docIdstringThe identifier of a deleted document.
collectionstringThe name of a collection.
deletedboolOptional and therefore doesn't affect existing code.
If you don't include the deleted parameter, RavenDB will execute the function without checking if the document was deleted from the source database.
If you include deleted, RavenDB will check if the document was indeed deleted or just updated.
If you set return true and the document was deleted in the source database, it will also delete the document in the destination database.
ReturnDescription
boolIf the returned value is true, the document will be deleted.

Deletions Example: ETL script with deletion behavior defined​

The following example will check if the source document was deleted or just updated before loading the transformed document. This function can be used if the destination collection is the same or different from the source.

> In this example, the source and destination collection names are different and deletions behavior is set to false if the source is deleted, so source deletions won't delete the destination document, thus saving a history of documents even if they're deleted in the source.

> If the source isn't deleted, the ETL process will delete the old version and load the new version with an incremented ID.

Conversely, if you set it to return false every time a document is updated and not deleted, the destination will save a history of document versions with an incremented auto-generated ID for each version.

For this example, the fields SupplierOrderLink and SupplierPhone are added to test documents in the source database.

// Define ETL to destination collection "productsHistory".
// Defined to update only the name of the item, a link to order the product, and the supplier's phone number
loadToproductsHistory ({
    Name: this.Name + "updated data..",
    SupplierOrderLink: this.SupplierOrderLink + "updated data..",
    SupplierPhone: this.SupplierPhone + "updated data.."
});

function deleteDocumentsBehavior(docId, collection, deleted) {
    // Prevents document deletions from destination collection "productsHistory" if source document is deleted.
    if (collection === "productsHistory" && deleted === true)
        return false;
    // If the source document information is updated (NOT deleted),
    // and the source and destination collection names are different, like in this example,
    // the script will delete then replace the destination document
    // (with an incremented ID) to keep it current.
    if (collection === "productsHistory" && deleted === false)
        return true;
}

In this article
