Indexes: Indexing Hierarchical Data

Use the indexing Recurse method to recurse through the layers of a hierarchical document and index its elements.

• In this Page:
  • Hierarchical Data
  • Indexing Hierarchical Data

Hierarchical Data

One of the significant advantages offered by document databases is their tendency not to force limits upon data structuring. Hierarchical data structures demonstrate this quality beautifully: take, for example, the commonly-used Comment thread, implemented using objects such as:

private class BlogPost
{
  public string Author { get; set; }
  public string Title { get; set; }
  public string Text { get; set; }

  // Blog post readers can leave comments
  public List<BlogPostComment> Comments { get; set; }
}

public class BlogPostComment
{
  public string Author { get; set; }
  public string Text { get; set; }

  // Comments can be left recursively
  public List<BlogPostComment> Comments { get; set; }
}

Readers of a post created using the above BlogPost structure, can add BlogPostComment comments to its Comments field. And readers of these comments can reply with comments of their own, creating a recursive hierarchical structure.

BlogPosts/1-A, for example, is a blog entry posted by John, that contains several layers of comments left by various authors.

BlogPosts/1-A:

{
  "Author ": "John",
  "Comments": [
      {
          "Author": "Moon",
          "Comments": [
              {
                  "Author": "Bob"
              },
              {
                  "Author": "Adel",
                  "Comments": {
                      "Author": "Moon"
                  }
              }
          ]
      }
  ],
  "@metadata": {
      "@collection": "BlogPosts"
  }
}

Indexing Hierarchical Data

To index the elements of a hierarchical structure like the one demonstrated above, use RavenDB's Recurse method.

In the sample below, we use Recurse to go through comments in the post thread and index them by their authors.

• AbstractIndexCreationTask
• Operation
• JavaScript

private class BlogPosts_ByCommentAuthor :
  AbstractIndexCreationTask<BlogPost, BlogPosts_ByCommentAuthor.Result>
{
  public class Result
  {
      public IEnumerable<string> Authors { get; set; }
  }

  public BlogPosts_ByCommentAuthor()
  {
      Map = blogposts => from blogpost in blogposts
                         let authors = Recurse(blogpost, x => x.Comments)
                         select new Result
                         {
                             Authors = authors.Select(x => x.Author)
                         };
  }
}

store.Maintenance.Send(new PutIndexesOperation(
  new IndexDefinition
  {
      Name = "BlogPosts/ByCommentAuthor",
      Maps =
      {
          @"from blogpost in docs.BlogPosts
            from comment in Recurse(blogpost, (Func<dynamic, dynamic>)(x => x.Comments))
            select new
            {
                Author = comment.Author
            }"
      }
  }));

public class BlogPosts_ByCommentAuthor_JS : AbstractJavaScriptIndexCreationTask
{
  public class Result
  {
      public string[] Authors { get; set; }
  }

  public BlogPosts_ByCommentAuthor_JS()
  {
      Maps = new HashSet<string>
      {
          @"map('BlogPosts', function (blogpost) {
              return recurse(blogpost, x => x.Comments).map(function (comment) {
                  if (comment.Author != null) {
                      return {
                          Authors: comment.Author
                      };
                  }
              });
          });"
      };
  }
}

Querying the created index

• The index we created can be queried using code.

• Query
• DocumentQuery

IList<BlogPost> results = session
  .Query<BlogPosts_ByCommentAuthor.Result, BlogPosts_ByCommentAuthor>()
  .Where(x => x.Authors.Any(a => a == "John"))
  .OfType<BlogPost>()
  .ToList();

IList<BlogPost> results = session
  .Advanced
  .DocumentQuery<BlogPost, BlogPosts_ByCommentAuthor>()
  .WhereEquals("Authors", "John")
  .ToList();

• The index can also be queried using Studio.

  • Use Studio's List of Indexes view to define and query the index.

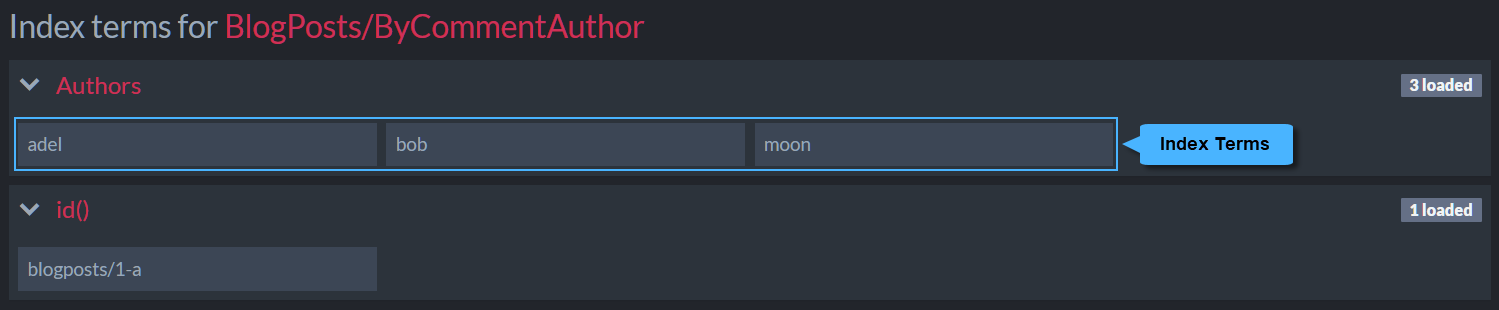

  • Use the Query view to see the results and the list of terms indexed by the Recurse method.
